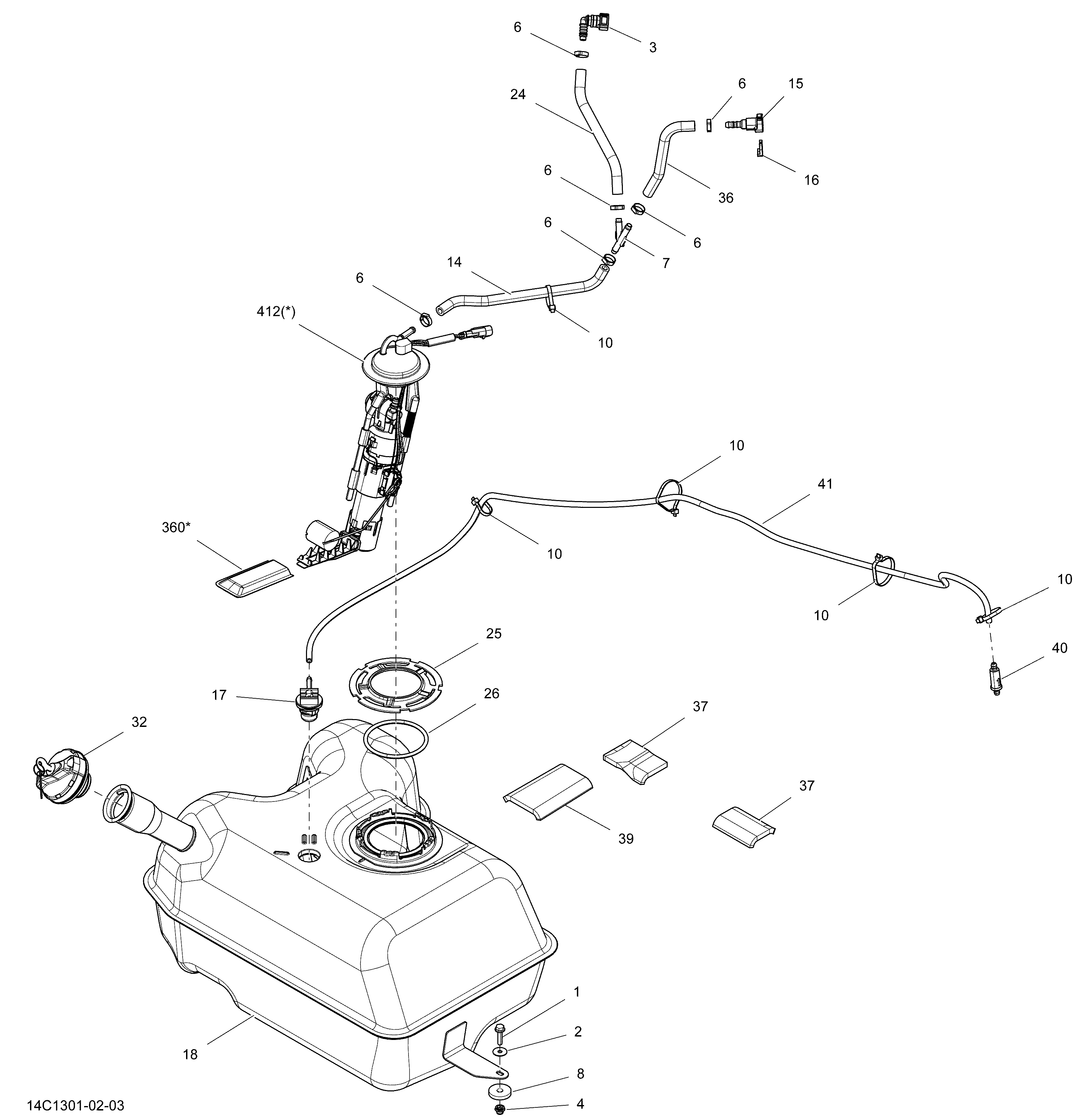

02- Fuel System для BRP Commander STD, DPS, XT, 800R EFI - 2013
-
№АртикулНазвание
-
1207662544 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
2224060201 Flat WasherFlat Washer
-
3275500700 Quick Attach 90°Quick Attach 90°
-
4293450274 InsertInsert
-
6293650046 Oetiker ClampOetiker Clamp
-
7293710136 Y-Fitting, 5/16''Y-Fitting, 5/16''
-
8293830037 Rubber WasherRubber Washer
-
10414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
14709000393 Fuel LineFuel Line
-
15709000125 Female Quick Fitting Ass'yFemale Quick Fitting Ass'y
-
16513033135 Locking ClipLocking Clip
-
17709000127 Rollover ValveRollover Valve
-
18709000196 Fuel TankFuel Tank
-
24709000393 Fuel LineFuel Line
-
25709000274 RingRing
-
26709000275 O-RingO-Ring
-
32709000268 CapCap
-
32715001124 Fuel Cap Kit. EuropeFuel Cap Kit. Europe
-
36709000393 Fuel LineFuel Line
-
37709000288 Neoprene PadNeoprene Pad
-
39709000289 Neoprene PadNeoprene Pad
-
40709000330 FilterFilter
-
41415080200 Hose, PolyurethaneHose, Polyurethane
-
360709000389 Fuel Pre-FilterFuel Pre-Filter
-
412709000362 Fuel PumpFuel Pump
