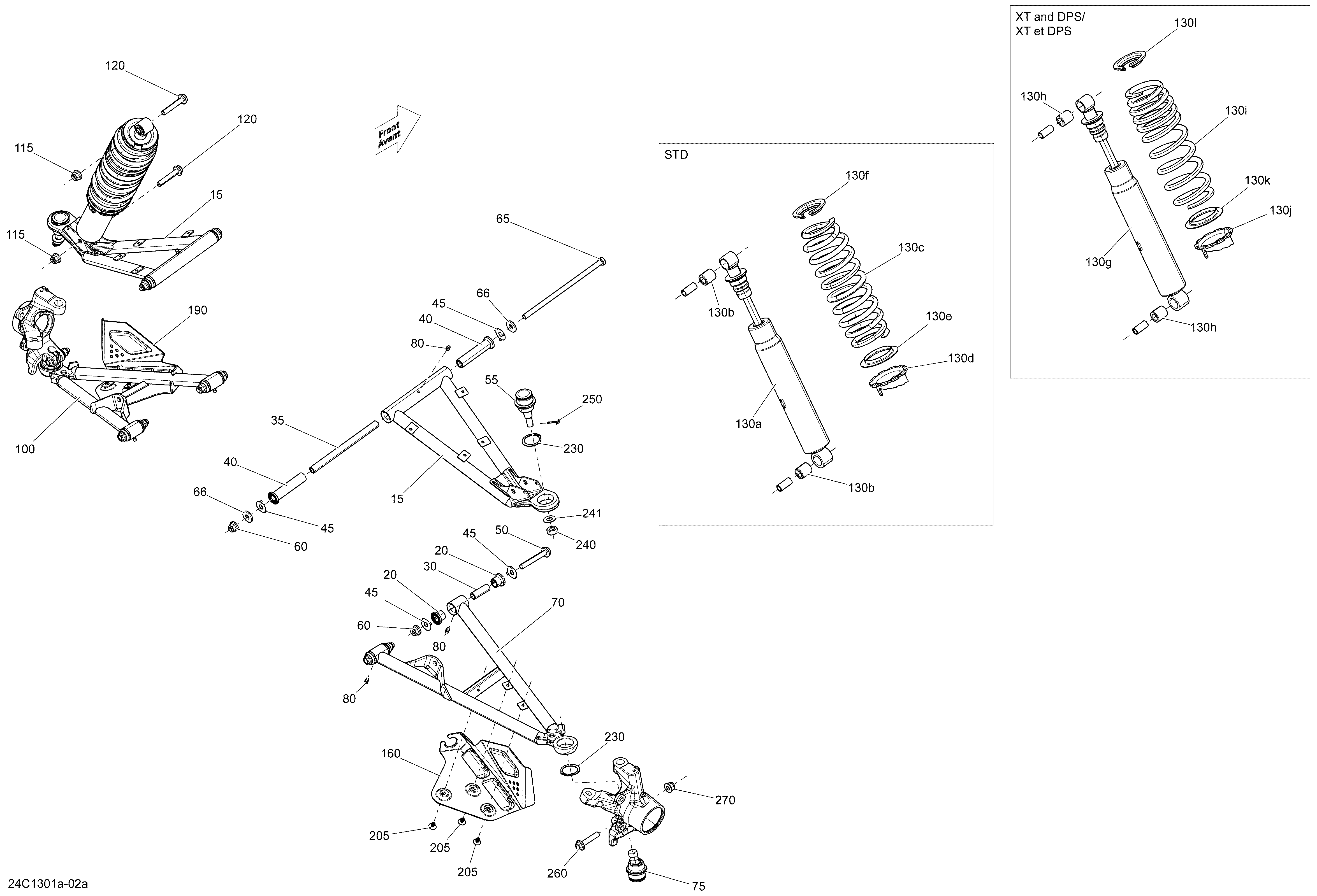

07- Front Suspension для BRP Commander STD, DPS, XT, 800R EFI - 2013
-
№АртикулНазвание
-
15706200796 Suspension Upper ArmSuspension Upper Arm
-
20703500875 Bushing Kit. Includes 30Bushing Kit. Includes 30
-
30703500875 Bushing Kit. Includes 20Bushing Kit. Includes 20
-
35706201061 Inner BushingInner Bushing
-
40706201062 CushionCushion
-
45706201063 Wear PlateWear Plate
-
50207607046 Hex. Flanged Screw M10 X 70Hex. Flanged Screw M10 X 70
-
55706202044 Ball JointBall Joint
-
65250000510 Hex. Cap Screw M10 X 225Hex. Cap Screw M10 X 225
-
66503190439 WasherWasher
-
70706200744 RH Lower Suspension ArmRH Lower Suspension Arm
-
75706202045 Ball JointBall Joint
-
100706200742 LH Lower Suspension ArmLH Lower Suspension Arm
-
115233201416 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
120207605544 Hex. Flanged Screw M10 X 55Hex. Flanged Screw M10 X 55
-
130a706200780 Front Shock. STD Model, Includes 130a to 130bFront Shock. STD Model, Includes 130a to 130b
-
130b715900122 Bushing. STD ModelBushing. STD Model
-
130c706201631 Red Front Spring. STD ModelRed Front Spring. STD Model
-
130d706000910 Adjustable Ring. STD ModelAdjustable Ring. STD Model
-
130e706000911 Protector Ring. STD ModelProtector Ring. STD Model
-
130f706000567 Spring Stopper. STD ModelSpring Stopper. STD Model
-
130g706200782 Front Shock. XT and DPS Model, Includes 130g to 130hFront Shock. XT and DPS Model, Includes 130g to 130h
-
130h715900122 Bushing. XT and DPS ModelBushing. XT and DPS Model
-
130i706200860 Yellow Front Spring. XT Yellow ModelYellow Front Spring. XT Yellow Model
-
130i706201369 Black Front Spring. XT Magnesium ModelBlack Front Spring. XT Magnesium Model
-
130i706201369 Black Front Spring. XT Camo ModelBlack Front Spring. XT Camo Model
-
130i706200860 Yellow Front Spring. DPS ModelYellow Front Spring. DPS Model
-
130j706000910 Adjustable Ring. XT and DPS ModelAdjustable Ring. XT and DPS Model
-
130k706000911 Protector Ring. XT and DPS ModelProtector Ring. XT and DPS Model
-
130l706000567 Spring Stopper. XT and DPS ModelSpring Stopper. XT and DPS Model
-
160706201670 RH ProtectorRH Protector
-
190706201669 LH ProtectorLH Protector
-
205293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
230293370035 CirclipCirclip
-
240250100099 Nut M12Nut M12
-
241706200281 Hardened WasherHardened Washer
-
250211400017 Cotter PinCotter Pin
-
260207605044 Hex. Flanged Screw M10 X 50Hex. Flanged Screw M10 X 50
-
270233201414 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
