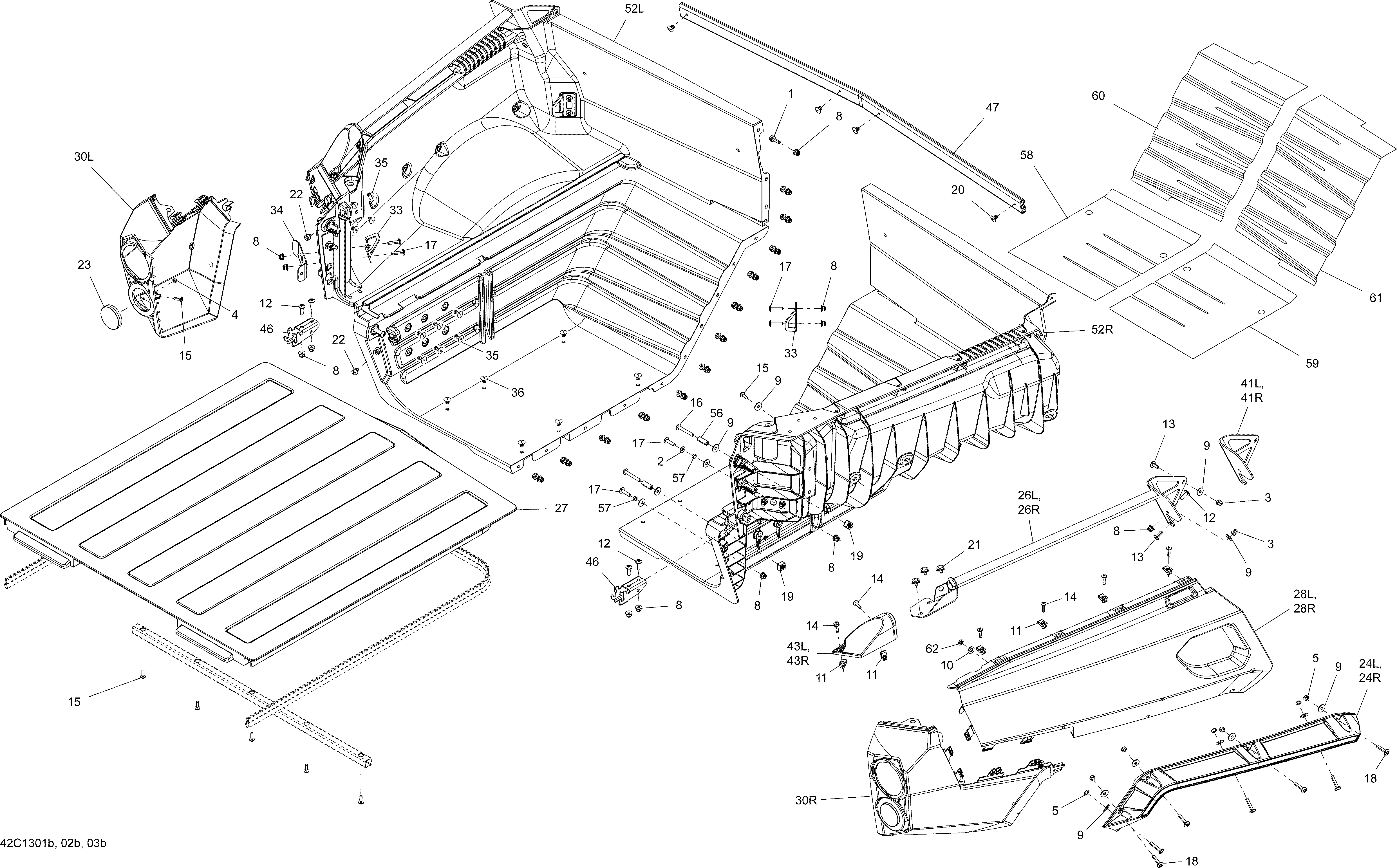

09- Rear Cargo Box для BRP Commander STD, DPS, XT, 800R EFI - 2013
-
№АртикулНазвание
-
1207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
2224061121 Flat WasherFlat Washer
-
3232361493 Domed Nut M6Domed Nut M6
-
4232551414 Elastic Stop Nut M5. North America, InternationalElastic Stop Nut M5. North America, International
-
5232561434 Elastic Stop Nut M6. XT Except Europe, LTD Except EuropeElastic Stop Nut M6. XT Except Europe, LTD Except Europe
-
5232561434 Elastic Stop Nut M6. Black Carbon FiberElastic Stop Nut M6. Black Carbon Fiber
-
8233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
9234062670 Flat WasherFlat Washer
-
10234081100 Flat Washer 8 mm, NylonFlat Washer 8 mm, Nylon
-
11250000079 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
11250000079 Panel Nut M5 X 0.8. XTPanel Nut M5 X 0.8. XT
-
12250000128 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
13250000129 Torx Screw M6 X 16Torx Screw M6 X 16
-
14250000130 Torx Screw M5 X 20Torx Screw M5 X 20
-
14250000130 Torx Screw M5 X 20. XTTorx Screw M5 X 20. XT
-
15250000146 Truss Head Torx Screw K50 X 16Truss Head Torx Screw K50 X 16
-
16250000215 Torx Screw M6 X 45Torx Screw M6 X 45
-
17250000284 Torx Screw M6 x 25Torx Screw M6 x 25
-
18250000371 Torx Screw M6 X 30 Stainless. XT Except Europe, LTD Except EuropeTorx Screw M6 X 30 Stainless. XT Except Europe, LTD Except Europe
-
18250000371 Torx Screw M6 X 30 Stainless. Black Carbon FiberTorx Screw M6 X 30 Stainless. Black Carbon Fiber
-
19269500725 Nut Housing Ass'yNut Housing Ass'y
-
20293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
21293150190 Pop Rivet 3/16. XTPop Rivet 3/16. XT
-
22293830005 Rubber PlugRubber Plug
-
23705002408 Reflector, Red. EuropeReflector, Red. Europe
-
24L705003603 LH Upper Rear Mudguards. Black Carbon FiberLH Upper Rear Mudguards. Black Carbon Fiber
-
24L705003603 LH Upper Rear Mudguards. XT Except Europe, LTD Except EuropeLH Upper Rear Mudguards. XT Except Europe, LTD Except Europe
-
24R705003604 RH Upper Rear Mudguards. Black Carbon FiberRH Upper Rear Mudguards. Black Carbon Fiber
-
24R705003604 RH Upper Rear Mudguards. XT Except Europe, LTD Except EuropeRH Upper Rear Mudguards. XT Except Europe, LTD Except Europe
-
26L708300231 LH Welded Rail. XTLH Welded Rail. XT
-
26R708300232 RH Welded Rail. XTRH Welded Rail. XT
-
27708300131 Separator Pannel Ass'ySeparator Pannel Ass'y
-
28L708300101 LH Rear Fender, Yellow. DPSLH Rear Fender, Yellow. DPS
-
28L708300101 LH Rear Fender, Yellow. XT YellowLH Rear Fender, Yellow. XT Yellow
-
28L708300226 LH Rear Fender, Red. XT RedLH Rear Fender, Red. XT Red
-
28L708300437 LH Rear Fender, Camo. XT CAMOLH Rear Fender, Camo. XT CAMO
-
28L708300548 LH Rear Fender, Magnesium. MagnesiumLH Rear Fender, Magnesium. Magnesium
-
28L708300666 LH Rear Fender, Red. STDLH Rear Fender, Red. STD
-
28L708300668 LH Rear Fender, Graphite. Black Carbon FiberLH Rear Fender, Graphite. Black Carbon Fiber
-
28R708300102 RH Rear Fender, Yellow. DPSRH Rear Fender, Yellow. DPS
-
28R708300102 RH Rear Fender, Yellow. XT YellowRH Rear Fender, Yellow. XT Yellow
-
28R708300227 RH Rear Fender, Red. XT RedRH Rear Fender, Red. XT Red
-
28R708300438 RH Rear Fender, Camo. XT CAMORH Rear Fender, Camo. XT CAMO
-
28R708300550 RH Rear Fender, Magnesium. MagnesiumRH Rear Fender, Magnesium. Magnesium
-
28R708300667 RH Rear Fender, Red. STDRH Rear Fender, Red. STD
-
28R708300669 RH Rear Fender, Graphite. Black Carbon FiberRH Rear Fender, Graphite. Black Carbon Fiber
-
30l708300103 LH Rear Facia. STD Except Europe, X Except EuropeLH Rear Facia. STD Except Europe, X Except Europe
-
30l708300103 LH Rear Facia. DPSLH Rear Facia. DPS
-
30l708300103 LH Rear Facia. Black Carbon FiberLH Rear Facia. Black Carbon Fiber
-
30l708300103 LH Rear Facia. XT Except Europe, LTD Except EuropeLH Rear Facia. XT Except Europe, LTD Except Europe
-
30l708300103 LH Rear Facia. XT Europe, LTD EuropeLH Rear Facia. XT Europe, LTD Europe
-
30l708300559 LH Rear Facia. STD Europe, X EuropeLH Rear Facia. STD Europe, X Europe
-
30r708300104 RH Rear Facia. STD Except Europe, X Except EuropeRH Rear Facia. STD Except Europe, X Except Europe
-
30r708300104 RH Rear Facia. DPSRH Rear Facia. DPS
-
30r708300104 RH Rear Facia. XT Except Europe, LTD Except EuropeRH Rear Facia. XT Except Europe, LTD Except Europe
-
30r708300104 RH Rear Facia. Black Carbon FiberRH Rear Facia. Black Carbon Fiber
-
30r708300104 RH Rear Facia. XT Europe, LTD EuropeRH Rear Facia. XT Europe, LTD Europe
-
30r708300560 RH Rear Facia. STD Europe, X EuropeRH Rear Facia. STD Europe, X Europe
-
33708300183 Retaining PlateRetaining Plate
-
34708300206 Retaining Plate SupportRetaining Plate Support
-
35293150100 Pop Rivet 3/16''Pop Rivet 3/16''
-
36293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
41L708300333 LH Painted Rail Cap. STDLH Painted Rail Cap. STD
-
41R708300334 RH Painted Rail Cap. STDRH Painted Rail Cap. STD
-
43L708300233 LH Rail Cover. XTLH Rail Cover. XT
-
43R708300234 RH Rail Cover. XTRH Rail Cover. XT
-
46708300345 Upper Pivot SupportUpper Pivot Support
-
47708300346 Front SupportFront Support
-
52L715001259 LH Box Ass'yLH Box Ass'y
-
52R715001257 RH Box Ass'yRH Box Ass'y
-
56708300736 SpacerSpacer
-
57708300737 BushingBushing
-
58708300809 Heat Deflector SheetHeat Deflector Sheet
-
59708300810 Heat Deflector SheetHeat Deflector Sheet
-
60708300811 Heat Deflector SheetHeat Deflector Sheet
-
61708300812 Heat Deflector SheetHeat Deflector Sheet
-
62732610072 Push NutPush Nut
