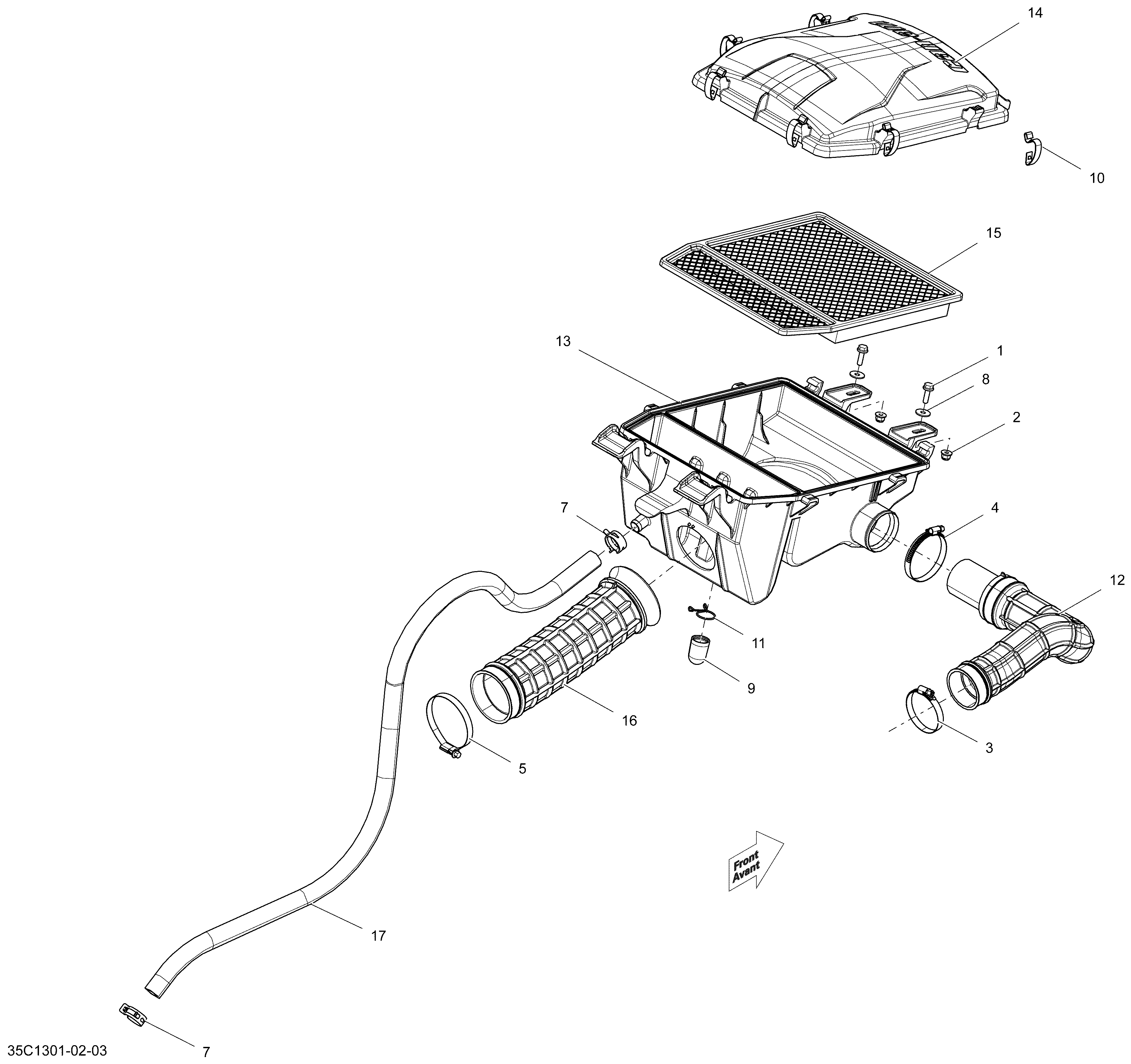

02- Air Intake для BRP Commander STD, DPS, XT, 800R EFI - 2013
-
№АртикулНазвание
-
1207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
2233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
3293650078 Norma ClampNorma Clamp
-
4293650079 Norma ClampNorma Clamp
-
5293650091 Norma ClampNorma Clamp
-
7293650213 Norma Spring ClampNorma Spring Clamp
-
8391302000 Flat WasherFlat Washer
-
9707800080 Drain TubeDrain Tube
-
10707800249 Cover BracketCover Bracket
-
11707800278 Retainer ClipRetainer Clip
-
12707800322 Intake AdaptorIntake Adaptor
-
13707800325 Air Intake Silencer BaseAir Intake Silencer Base
-
14707800326 Air Intake Silencer CoverAir Intake Silencer Cover
-
15707800327 Air FilterAir Filter
-
16707800329 Intake AdaptorIntake Adaptor
-
17707800411 Hose 15.88 mmHose 15.88 mm
