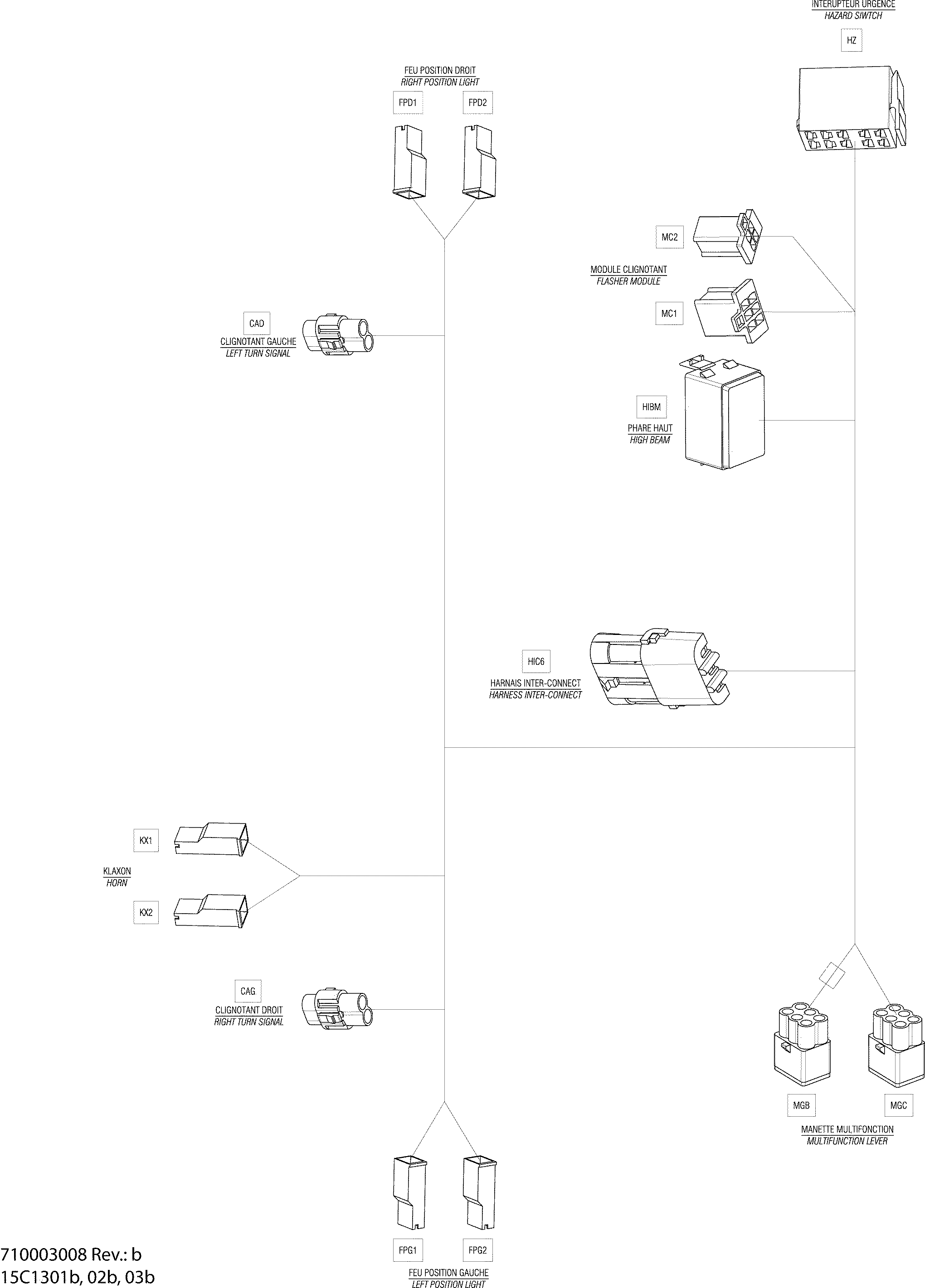

10- Electrical Harness Europe для BRP Commander STD, DPS, XT, 800R EFI - 2013
-
№АртикулНазвание
-
1710003008 Harness Ass'y. EURHarness Ass'y. EUR
-
CAD409012100 Female TerminalFemale Terminal
-
CAD409012300 SealSeal
-
CAG409012100 Female TerminalFemale Terminal
-
CAG409012300 SealSeal
-
CAG409209200 HousingHousing
-
D3409012700 DiodeDiode
-
D4409012700 DiodeDiode
-
FPD1293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
FPD1409010100 Female TerminalFemale Terminal
-
FPD1409010400 Female Terminal Housing, 1 CircuitFemale Terminal Housing, 1 Circuit
-
FPD1710000751 Shrink TubingShrink Tubing
-
FPD2293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
FPD2409010100 Female TerminalFemale Terminal
-
FPD2409010400 Female Terminal Housing, 1 CircuitFemale Terminal Housing, 1 Circuit
-
FPD2710000751 Shrink TubingShrink Tubing
-
FPG1293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
FPG1409010100 Female TerminalFemale Terminal
-
FPG1409010400 Female Terminal Housing, 1 CircuitFemale Terminal Housing, 1 Circuit
-
FPG1710000751 Shrink TubingShrink Tubing
-
FPG2293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
FPG2409010100 Female TerminalFemale Terminal
-
FPG2409010400 Female Terminal Housing, 1 CircuitFemale Terminal Housing, 1 Circuit
-
FPG2710000751 Shrink TubingShrink Tubing
-
HIBM293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
HIBM710002407 HousingHousing
-
HIBM710002863 TerminalTerminal
-
HIC6278000222 Male TerminalMale Terminal
-
HIC6278000281 Female Terminal Housing, 3 CircuitsFemale Terminal Housing, 3 Circuits
-
HIC6278000585 Wire Seal (20 Gauge) (Purple)(Packard)Wire Seal (20 Gauge) (Purple)(Packard)
-
HIC6710000992 ClipClip
-
HZ293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
HZ710001931 TerminalTerminal
-
HZ710002000 HousingHousing
-
KX1293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
KX1409010100 Female TerminalFemale Terminal
-
KX1409010400 Female Terminal Housing, 1 CircuitFemale Terminal Housing, 1 Circuit
-
KX1710000751 Shrink TubingShrink Tubing
-
KX2293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
KX2409010100 Female TerminalFemale Terminal
-
KX2409010400 Female Terminal Housing, 1 CircuitFemale Terminal Housing, 1 Circuit
-
KX2710000751 Shrink TubingShrink Tubing
-
MC1293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
MC1710002314 HousingHousing
-
MC1710002315 TerminalTerminal
-
MC2293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
MC2710002313 HousingHousing
-
MC2710002315 TerminalTerminal
-
MGB409012100 Female TerminalFemale Terminal
-
MGB409012300 SealSeal
-
MGB710000080 CapCap
-
MGB710000081 Female Housing, 6 CircuitsFemale Housing, 6 Circuits
-
MGC409012100 Female TerminalFemale Terminal
-
MGC409012300 SealSeal
-
MGC710000080 CapCap
-
MGC710000081 Female Housing, 6 CircuitsFemale Housing, 6 Circuits
