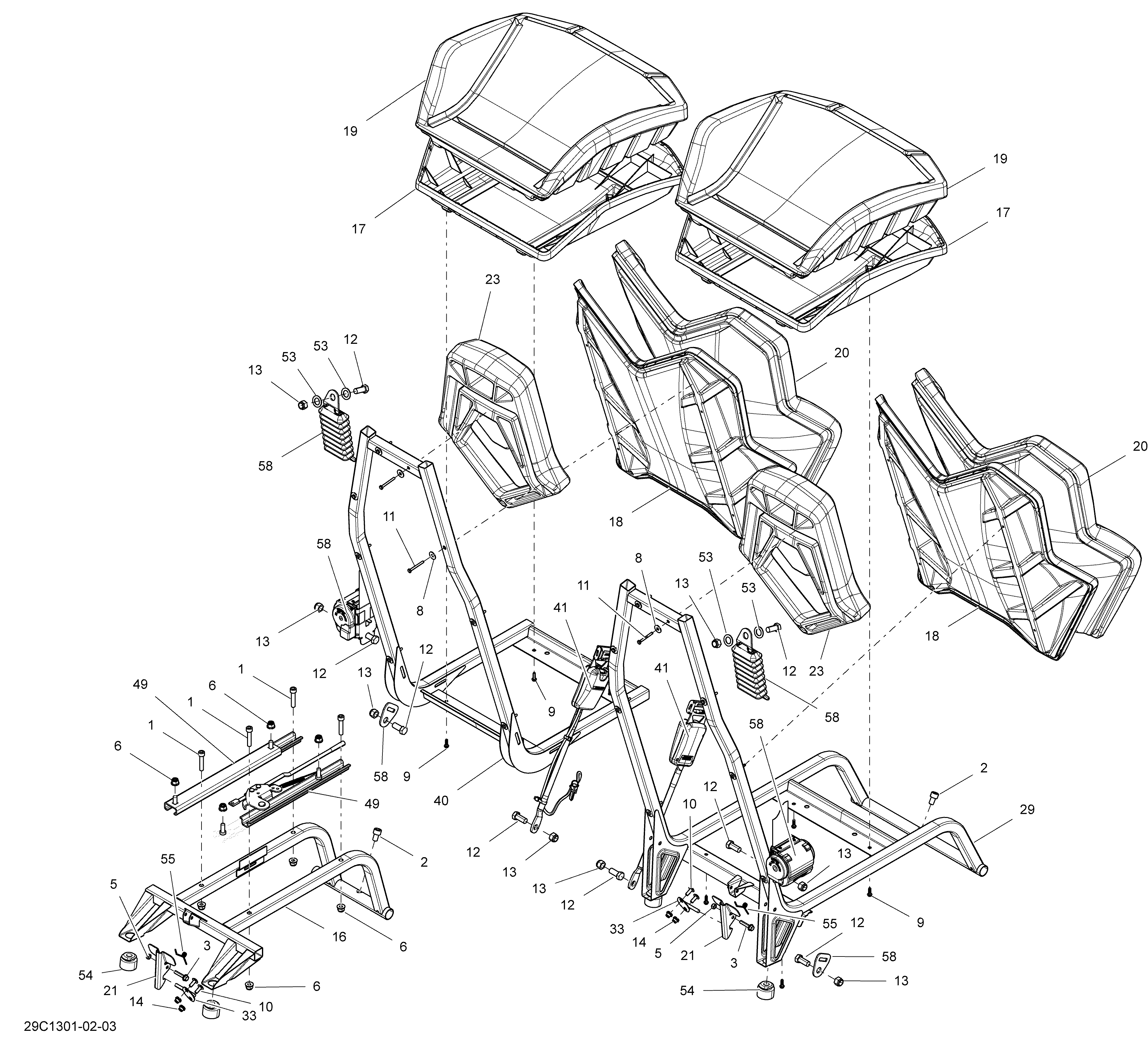

09- Seat для BRP Commander STD, DPS, XT, 800R EFI - 2013
-
№АртикулНазвание
-
1205084044 Socket Head Screw M8 X 40Socket Head Screw M8 X 40
-
2205501644 Socket Screw M10 X 16Socket Screw M10 X 16
-
3207663044 Hex. Flanged Screw M6 X 30Hex. Flanged Screw M6 X 30
-
5232561600 Hex. Elastic Stop Nut M6Hex. Elastic Stop Nut M6
-
6233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
8234062670 Flat WasherFlat Washer
-
9241151640 Hex. Flanged Screw K50 X 16Hex. Flanged Screw K50 X 16
-
10250000223 Torx Screw M6 X 16Torx Screw M6 X 16
-
11250000490 Hex. Washer Head Screw PT K50 X 40Hex. Washer Head Screw PT K50 X 40
-
12250000521 Hex. Cap Screw 7/16'' X 1''Hex. Cap Screw 7/16'' X 1''
-
13250100135 Nylon Insert Hex. Lock Nut 7/16-20Nylon Insert Hex. Lock Nut 7/16-20
-
14293450274 InsertInsert
-
16708000667 Seat MemberSeat Member
-
17708001102 Cushion Ass'yCushion Ass'y
-
18708000669 Backrest Ass'yBackrest Ass'y
-
19708001103 Seat CoverSeat Cover
-
20708000675 Backrest CoverBackrest Cover
-
21708000678 Seat LatchSeat Latch
-
23708000711 Head RestHead Rest
-
29708000690 Passenger Seat FramePassenger Seat Frame
-
33708000794 Lock StemLock Stem
-
40708000739 Driver Seat FrameDriver Seat Frame
-
41708000856 Driver Buckle Side. EuropeDriver Buckle Side. Europe
-
41708000987 Driver Buckle SideDriver Buckle Side
-
41708000844 Passenger Buckle SidePassenger Buckle Side
-
41708000857 Passenger Buckle Side. EuropePassenger Buckle Side. Europe
-
49708000848 LH RailLH Rail
-
49708000846 RH RailRH Rail
-
53708000891 Position WasherPosition Washer
-
54708000899 Rubber BumperRubber Bumper
-
55708000921 SpringSpring
-
58708001108 Safety BeltSafety Belt
-
58708001130 Safety Belt. EuropeSafety Belt. Europe
