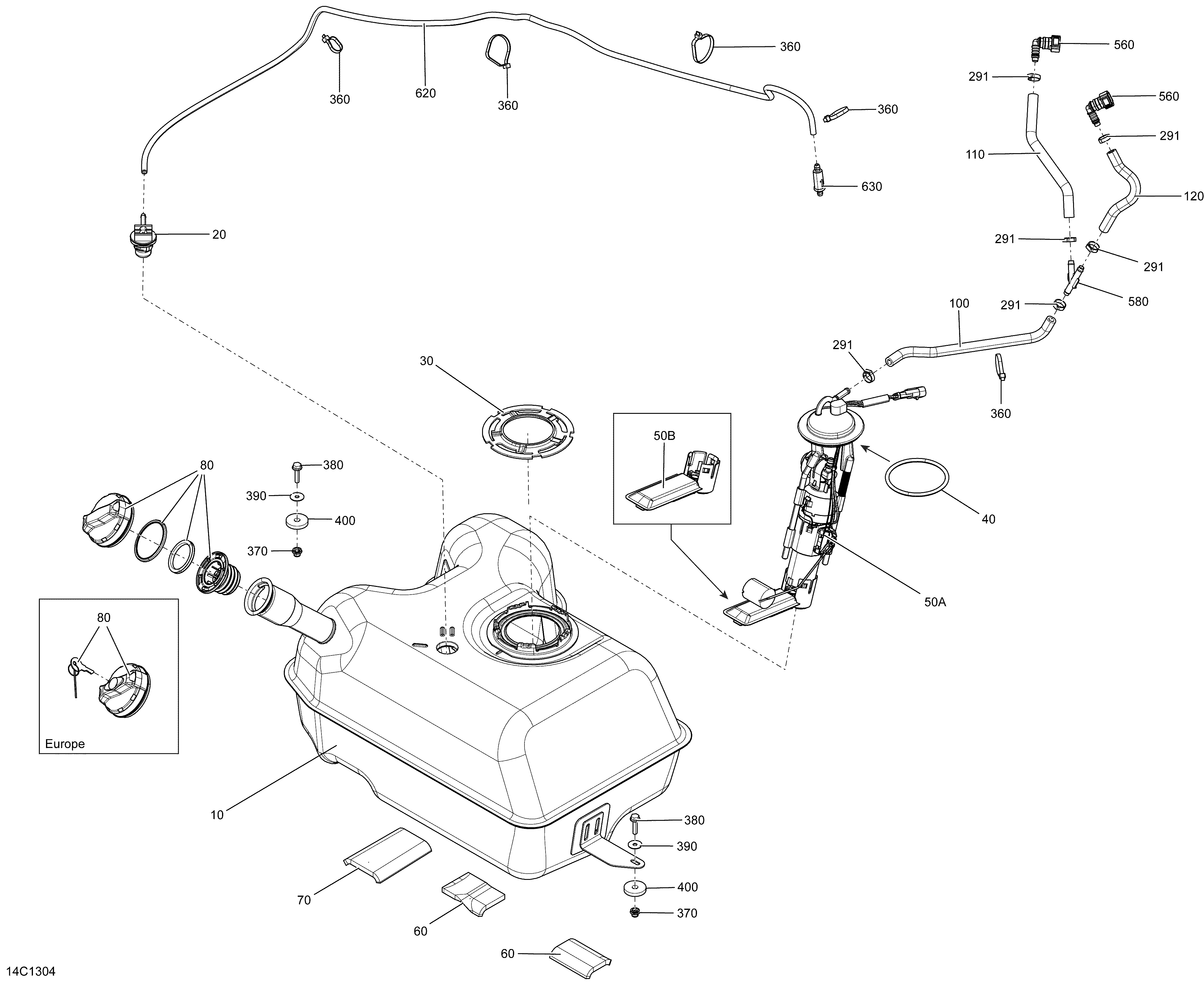

02- Fuel System для BRP Maverick 1000, STD, XRS - 2013
-
№АртикулНазвание
-
10709000467 Fuel TankFuel Tank
-
20709000127 Rollover ValveRollover Valve
-
30709000274 RingRing
-
40709000275 O-RingO-Ring
-
50a709000362 Fuel Pump. Includes 50A to 50BFuel Pump. Includes 50A to 50B
-
50b709000389 Fuel Pre-FilterFuel Pre-Filter
-
60709000288 Neoprene PadNeoprene Pad
-
70709000289 Neoprene PadNeoprene Pad
-
80709000268 CapCap
-
80715001124 Fuel Cap Kit. EuropeFuel Cap Kit. Europe
-
100709000393 Fuel LineFuel Line
-
110709000393 Fuel LineFuel Line
-
120709000393 Fuel LineFuel Line
-
291293650046 Oetiker ClampOetiker Clamp
-
360414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
370293450274 InsertInsert
-
380207662544 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
390224060201 Flat WasherFlat Washer
-
400293830037 Rubber WasherRubber Washer
-
560275500700 Quick Attach 90°Quick Attach 90°
-
580293710136 Y-Fitting, 5/16''Y-Fitting, 5/16''
-
620415080200 Hose, PolyurethaneHose, Polyurethane
-
630709000330 FilterFilter
