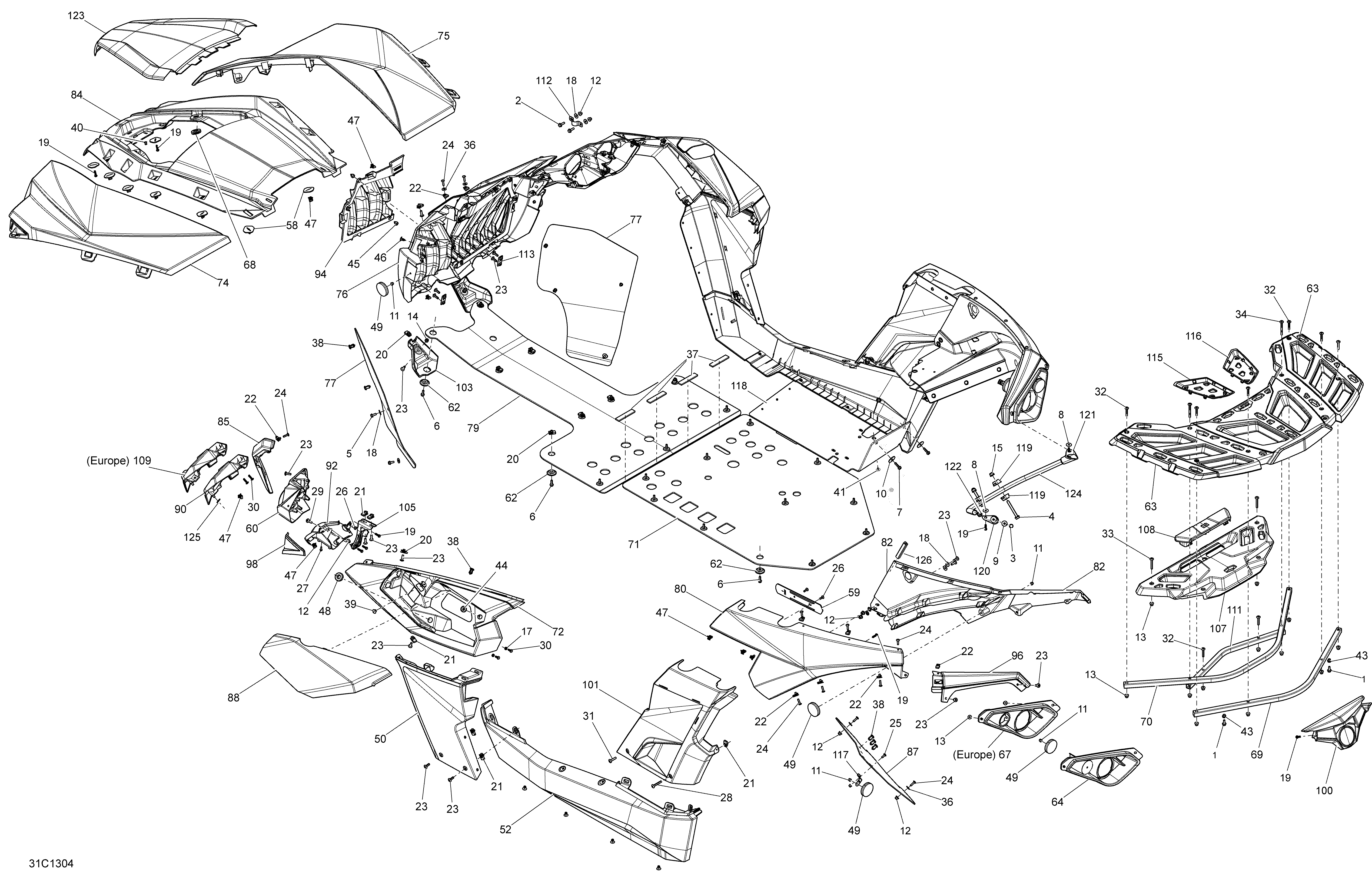

09- Body And Accessories для BRP Maverick 1000, STD, XRS - 2013
-
№АртикулНазвание
-
1207561634 Hex. Flanged Screw M6 X 16, Scotch GripHex. Flanged Screw M6 X 16, Scotch Grip
-
2207662084 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
3207662544 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
4207687044 Hex. Flanged Screw M8 X 70Hex. Flanged Screw M8 X 70
-
5210261680 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
6210262080 Hex. Forming Screw M6 X 20Hex. Forming Screw M6 X 20
-
7210262580 Hex. Flanged Forming Screw M6 X 25Hex. Flanged Forming Screw M6 X 25
-
8224060201 Flat WasherFlat Washer
-
9224061201 Flat WasherFlat Washer
-
10224081301 Flat WasherFlat Washer
-
11233251414 Hex. Flanged Elastic Nut M5Hex. Flanged Elastic Nut M5
-
12233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
12233251494 Elastic Flanged Nut M5Elastic Flanged Nut M5
-
13233261434 Flanged Elastic Nut M6Flanged Elastic Nut M6
-
14233261494 Hex. Elastic Flanged Nut M6Hex. Elastic Flanged Nut M6
-
15233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
17234051410 Flat Washer M5Flat Washer M5
-
18234062670 Flat WasherFlat Washer
-
19241152060 Hex. Flanged Screw K50 X 20Hex. Flanged Screw K50 X 20
-
20250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
21250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
22250000079 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
23250000128 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
24250000130 Torx Screw M5 X 20Torx Screw M5 X 20
-
25250000145 Torx Screw M5 X 14. EuropeTorx Screw M5 X 14. Europe
-
26250000146 Truss Head Torx Screw K50 X 16Truss Head Torx Screw K50 X 16
-
27250000202 Self Tapping Screw #8 X 5/8Self Tapping Screw #8 X 5/8
-
28250000215 Torx Screw M6 X 45Torx Screw M6 X 45
-
29250000284 Torx Screw M6 x 25Torx Screw M6 x 25
-
30250000297 Truss Head Torx Screw K50 X 20Truss Head Torx Screw K50 X 20
-
31250000398 Stainless Torx Screw,Nylon Patch,M6 X 30Stainless Torx Screw,Nylon Patch,M6 X 30
-
32250000646 Torx Screw M6 X 35Torx Screw M6 X 35
-
33250000647 Torx Screw M6 X 45Torx Screw M6 X 45
-
34250000648 Torx Screw M6 X 60Torx Screw M6 X 60
-
36250200025 Washer M5Washer M5
-
37291001932 PadPad
-
38293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
39293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
40293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
41293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
43293450274 InsertInsert
-
44293720053 GrommetGrommet
-
45293830005 Rubber PlugRubber Plug
-
46414644300 DartDart
-
47517302785 ClipClip
-
48517303756 GrommetGrommet
-
49705002409 Reflector, AmberReflector, Amber
-
49705002408 Reflector, RedReflector, Red
-
49705002408 Reflector, Red. EuropeReflector, Red. Europe
-
50705002887 LH Front Lateral Pannel, YellowLH Front Lateral Pannel, Yellow
-
50705002888 RH Front Lateral Pannel, YellowRH Front Lateral Pannel, Yellow
-
52705006991 LH Lateral Middle PanelLH Lateral Middle Panel
-
52705006992 RH Lateral Middle PanelRH Lateral Middle Panel
-
58705003841 Support PlateSupport Plate
-
59705004261 Support PlateSupport Plate
-
60705004508 LH Front FaciaLH Front Facia
-
60705004509 RH Front FaciaRH Front Facia
-
62705004510 CupCup
-
63715002367 Rack KitRack Kit
-
64705004731 LH Rear FaciaLH Rear Facia
-
64705004732 RH Rear FaciaRH Rear Facia
-
67705004926 RH Rear Facia. EuropeRH Rear Facia. Europe
-
67705004927 LH Rear Facia. EuropeLH Rear Facia. Europe
-
68705005156 Oval WasherOval Washer
-
69705005469 TubeTube
-
70705005470 TubeTube
-
71705005480 Central Skid PlateCentral Skid Plate
-
72705005779 LH Front Fender, YellowLH Front Fender, Yellow
-
72705006558 LH Front Fender, BlackLH Front Fender, Black
-
72705005780 RH Front Fender, YellowRH Front Fender, Yellow
-
72705006559 RH Front Fender, BlackRH Front Fender, Black
-
74705005781 LH Fixe HoodLH Fixe Hood
-
75705005782 RH Fixe HoodRH Fixe Hood
-
76705005784 Front Radiator GrillFront Radiator Grill
-
77705005796 Front Inner FenderFront Inner Fender
-
79705005798 Front Skid PlateFront Skid Plate
-
80705005801 LH Rear Fender, YellowLH Rear Fender, Yellow
-
80705006579 LH Rear Fender, BlackLH Rear Fender, Black
-
80705005802 RH Rear Fender, YellowRH Rear Fender, Yellow
-
80705006580 RH Rear Fender, BlackRH Rear Fender, Black
-
82705005803 LH Rear Inner FenderLH Rear Inner Fender
-
82705005804 RH Rear Inner FenderRH Rear Inner Fender
-
84705005821 Fixe Center HoodFixe Center Hood
-
85705005824 LH Bumper CapLH Bumper Cap
-
85705005825 RH Bumper CapRH Bumper Cap
-
87705005850 Rear Fender DeflectorRear Fender Deflector
-
88705005852 LH Cover Front Fender, YellowLH Cover Front Fender, Yellow
-
88705006566 LH Cover Front Fender, BlackLH Cover Front Fender, Black
-
88705005853 RH Cover Front Fender, YellowRH Cover Front Fender, Yellow
-
88705006567 RH Cover Front Fender, BlackRH Cover Front Fender, Black
-
90705005935 LH Bumper GrillLH Bumper Grill
-
90705005936 RH Bumper GrillRH Bumper Grill
-
92705005953 LH Front Fender Trim, YellowLH Front Fender Trim, Yellow
-
92705006562 LH Front Fender Trim, BlackLH Front Fender Trim, Black
-
92705005954 RH Front Fender Trim, YellowRH Front Fender Trim, Yellow
-
92705006563 RH Front Fender Trim, BlackRH Front Fender Trim, Black
-
94705005983 LH Rear Radiator GrillLH Rear Radiator Grill
-
94705005984 RH Rear Radiator GrillRH Rear Radiator Grill
-
96705005990 LH Rear Facia Trim, YellowLH Rear Facia Trim, Yellow
-
96705006583 LH Rear Facia Trim, BlackLH Rear Facia Trim, Black
-
96705005991 RH Rear Facia Trim, YellowRH Rear Facia Trim, Yellow
-
96705006584 RH Rear Facia Trim, BlackRH Rear Facia Trim, Black
-
98705005992 LH Front Facia TrimLH Front Facia Trim
-
98705005993 RH Front Facia TrimRH Front Facia Trim
-
100705005994 LOGO SupportLOGO Support
-
101705006000 LH Rear Lateral PanelLH Rear Lateral Panel
-
101705006001 RH Rear Lateral PanelRH Rear Lateral Panel
-
103705006038 LH Bumper Skid CapLH Bumper Skid Cap
-
103705006039 RH Bumper Skid CapRH Bumper Skid Cap
-
105705006078 LH Froont Facia SupportLH Froont Facia Support
-
105705006079 RH Froont Facia SupportRH Froont Facia Support
-
107705006128 Bagage Central RackBagage Central Rack
-
108705006132 Central Bagage Rack CapCentral Bagage Rack Cap
-
109705006213 LH Bumper Grill. EuropeLH Bumper Grill. Europe
-
109705006214 RH Bumper Grill. EuropeRH Bumper Grill. Europe
-
111705006279 Bagage Rack TubeBagage Rack Tube
-
112705006623 ClampClamp
-
113705006635 Radiator Grill BracketRadiator Grill Bracket
-
115705006713 LH Bagage Rack CoverLH Bagage Rack Cover
-
116705006714 RH Bagage Rack CoverRH Bagage Rack Cover
-
117705006828 Reflector Support. EuropeReflector Support. Europe
-
118705007038 Lateral Skid PlateLateral Skid Plate
-
119705007044 Rear Support Facia ClipRear Support Facia Clip
-
120705007045 LH Rear Facia SupportLH Rear Facia Support
-
121705007046 RH Rear Facia SupportRH Rear Facia Support
-
122705007047 Tube ConnectorTube Connector
-
123705007060 Removable Hood, BlackRemovable Hood, Black
-
124705007299 Body TubeBody Tube
-
125732610072 Push NutPush Nut
-
126293200093 Neoprene SealNeoprene Seal
