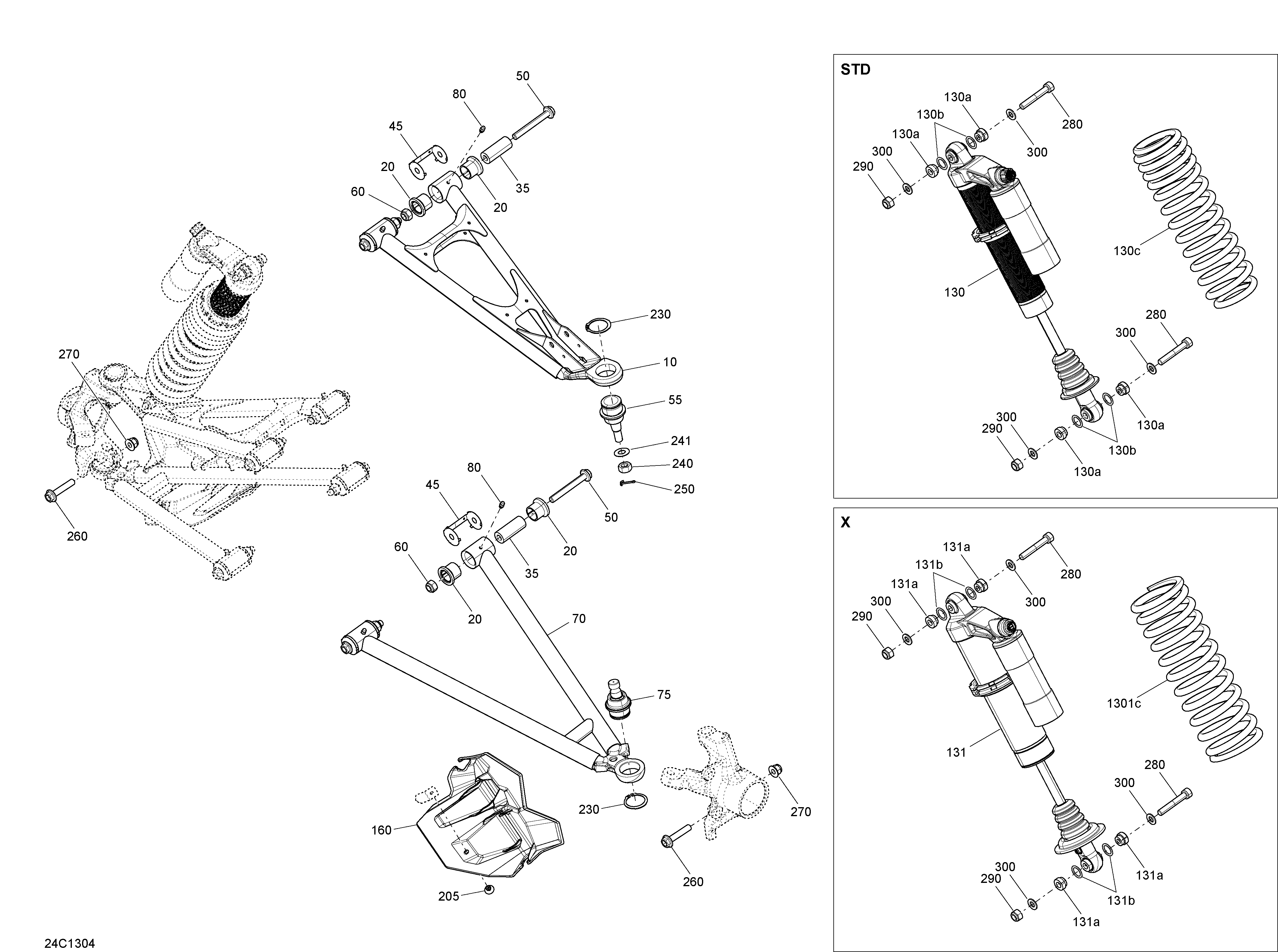

07- Front Suspension для BRP Maverick 1000, STD, XRS - 2013
-
№АртикулНазвание
-
10706201602 Painted Upper Front Arm. STDPainted Upper Front Arm. STD
-
10706201644 Upper Front Arm Yellow. XUpper Front Arm Yellow. X
-
20706201659 CushionCushion
-
35706201590 SleeveSleeve
-
45706201660 Wear PlateWear Plate
-
50207608046 Hex Flanged Screw M10 X 80Hex Flanged Screw M10 X 80
-
55706202044 Ball JointBall Joint
-
70706201608 RH Painted Front Lower ArmRH Painted Front Lower Arm
-
70706201607 LH Painted Front Lower ArmLH Painted Front Lower Arm
-
75706202045 Ball JointBall Joint
-
80408200700 Grease FittingGrease Fitting
-
130706201579 Front Shock. STDFront Shock. STD
-
130a715900210 Interior Bushing. STDInterior Bushing. STD
-
130b715900209 O-Ring Bushing. STDO-Ring Bushing. STD
-
130c706201580 Yellow Front Spring. STDYellow Front Spring. STD
-
131706201599 Front Shock. XFront Shock. X
-
131b715900209 O-Ring Bushing. XO-Ring Bushing. X
-
131a715900210 Interior Bushing. XInterior Bushing. X
-
131c706201600 Yellow Front Spring. XYellow Front Spring. X
-
160706201765 RH Joint ProtectorRH Joint Protector
-
160706201764 LH Joint ProtectorLH Joint Protector
-
205293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
230293370035 CirclipCirclip
-
240250100099 Nut M12Nut M12
-
241706200281 Hardened WasherHardened Washer
-
250211400017 Cotter PinCotter Pin
-
260207605044 Hex. Flanged Screw M10 X 50Hex. Flanged Screw M10 X 50
-
270233201414 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
280205006087 Socket Screw M10 X 60Socket Screw M10 X 60
-
290233601416 Elastic Locking Nut M10Elastic Locking Nut M10
-
300503183800 WasherWasher
