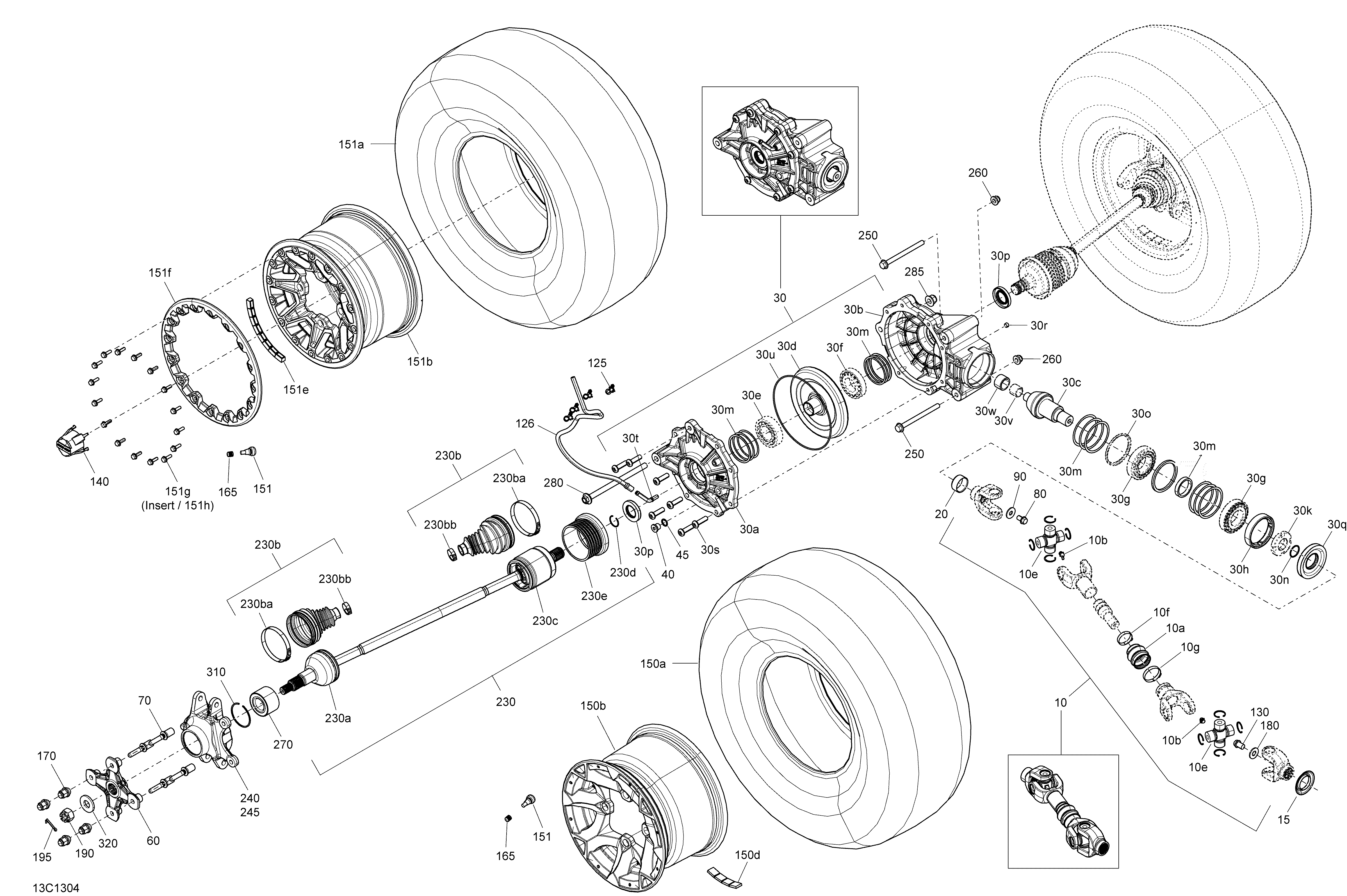

08- Drive System, Rear для BRP Maverick 1000, STD, XRS - 2013
-
№АртикулНазвание
-
10705501849 Drive Axle Ass'y. Includes 10 to 10gDrive Axle Ass'y. Includes 10 to 10g
-
10a715900118 Rubber BootRubber Boot
-
10b715900239 Grease FittingGrease Fitting
-
10e715500371 Universal JointUniversal Joint
-
10f509000045 Oetiker Gear ClampOetiker Gear Clamp
-
10g293650138 Oetiker Gear ClampOetiker Gear Clamp
-
15705501123 ProtectorProtector
-
20705400036 Wear RingWear Ring
-
30705501912 Rear Differential Ass'y. Includes 30 to 30mRear Differential Ass'y. Includes 30 to 30m
-
30a705501735 Rear CoverRear Cover
-
30b705501736 Pinion CoverPinion Cover
-
30c703500838 Gear 10Teeth KitGear 10Teeth Kit
-
30d703500837 Gear 36 Teeth KitGear 36 Teeth Kit
-
30h705501740 NutNut
-
30m703500839 Differential Shim KitDifferential Shim Kit
-
30n705501554 O-RingO-Ring
-
30p705501556 Oil SealOil Seal
-
30q705501933 Oil SealOil Seal
-
30r705501724 Plug DrainPlug Drain
-
30s705501562 BoltBolt
-
30t705501584 Breather TubeBreather Tube
-
30u705501749 Oil SealOil Seal
-
30w703500840 Needle BearingNeedle Bearing
-
40705500504 Fill Level PlugFill Level Plug
-
45705500506 Copper WasherCopper Washer
-
60705501900 Wheel HubWheel Hub
-
70250300051 Wheel StudWheel Stud
-
80250000615 Hex Flanged Screwv M10 X 16Hex Flanged Screwv M10 X 16
-
90250200014 Flat Washer M10Flat Washer M10
-
125710003168 Tie-RapTie-Rap
-
126415080200 Hose, PolyurethaneHose, Polyurethane
-
130250000359 Hex Flanged Screw M12 x 16Hex Flanged Screw M12 x 16
-
140705400928 Wheel CapWheel Cap
-
150a705501817 Rear Tire Maxxis 27X11X12. STDRear Tire Maxxis 27X11X12. STD
-
150b705501465 Rear Rim. STDRear Rim. STD
-
150c705400193 Rim Valve With Cap. STDRim Valve With Cap. STD
-
150d705501385 1/2 OZ Weight. STD1/2 OZ Weight. STD
-
151a705501817 Rear Tire Maxxis 27X11X12. X Excep EUROPERear Tire Maxxis 27X11X12. X Excep EUROPE
-
151b705501522 Rear Rim. X Excep EUROPERear Rim. X Excep EUROPE
-
151d705400193 Rim Valve With Cap. X Excep EUROPERim Valve With Cap. X Excep EUROPE
-
151e705501385 1/2 OZ Weight. X Excep EUROPE1/2 OZ Weight. X Excep EUROPE
-
151f705401329 Reinforcement Disc, Yellow. X Excep EUROPEReinforcement Disc, Yellow. X Excep EUROPE
-
151g250000435 Hex. Flanged Screw M6 X 25. X Excep EUROPEHex. Flanged Screw M6 X 25. X Excep EUROPE
-
151h293450317 InsertInsert
-
151a705501818 Rear Tire. X EUROPERear Tire. X EUROPE
-
151b705501522 Rear Rim. X EUROPERear Rim. X EUROPE
-
151d705400193 Rim Valve With Cap. X EUROPERim Valve With Cap. X EUROPE
-
151e705501385 1/2 OZ Weight. X EUROPE1/2 OZ Weight. X EUROPE
-
151f705401329 Reinforcement Disc, Yellow. X EUROPEReinforcement Disc, Yellow. X EUROPE
-
151g250000435 Hex. Flanged Screw M6 X 25. X EUROPEHex. Flanged Screw M6 X 25. X EUROPE
-
151705400193 Rim Valve With CapRim Valve With Cap
-
165293000110 Valve CapValve Cap
-
170250100100 Black Wheel Nut M10 X 1.25Black Wheel Nut M10 X 1.25
-
180250200102 Flat Washer M12Flat Washer M12
-
190250100047 Hex. Castellated Nut M18Hex. Castellated Nut M18
-
195250400036 Cotter PinCotter Pin
-
230705501948 Half Shaft. Includes 230 to 230eHalf Shaft. Includes 230 to 230e
-
230a705501863 CV JointCV Joint
-
230b705501864 Boot Kit. Includes 230b to 230bbBoot Kit. Includes 230b to 230bb
-
230ba715900241 Oetiker Clamp, 82.1 mmOetiker Clamp, 82.1 mm
-
230bb715900242 Oetiker Clamp, 27.3 mmOetiker Clamp, 27.3 mm
-
230c705501865 Plunging JointPlunging Joint
-
230d705501781 CirclipCirclip
-
230e705501841 Heat DissipatorHeat Dissipator
-
240705501730 LH Rear KnuckleLH Rear Knuckle
-
245705501731 RH Rear KnuckleRH Rear Knuckle
-
250230602546 Hex. Flanged Screw M10 X 125Hex. Flanged Screw M10 X 125
-
260233201416 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
270293350040 Cone BearingCone Bearing
-
280230629087 Hex. Flanged Screw M12 X 190Hex. Flanged Screw M12 X 190
-
285233221416 Elastic Flange Nut M12Elastic Flange Nut M12
-
310293370019 CirclipCirclip
-
320250200148 Spring WasherSpring Washer
