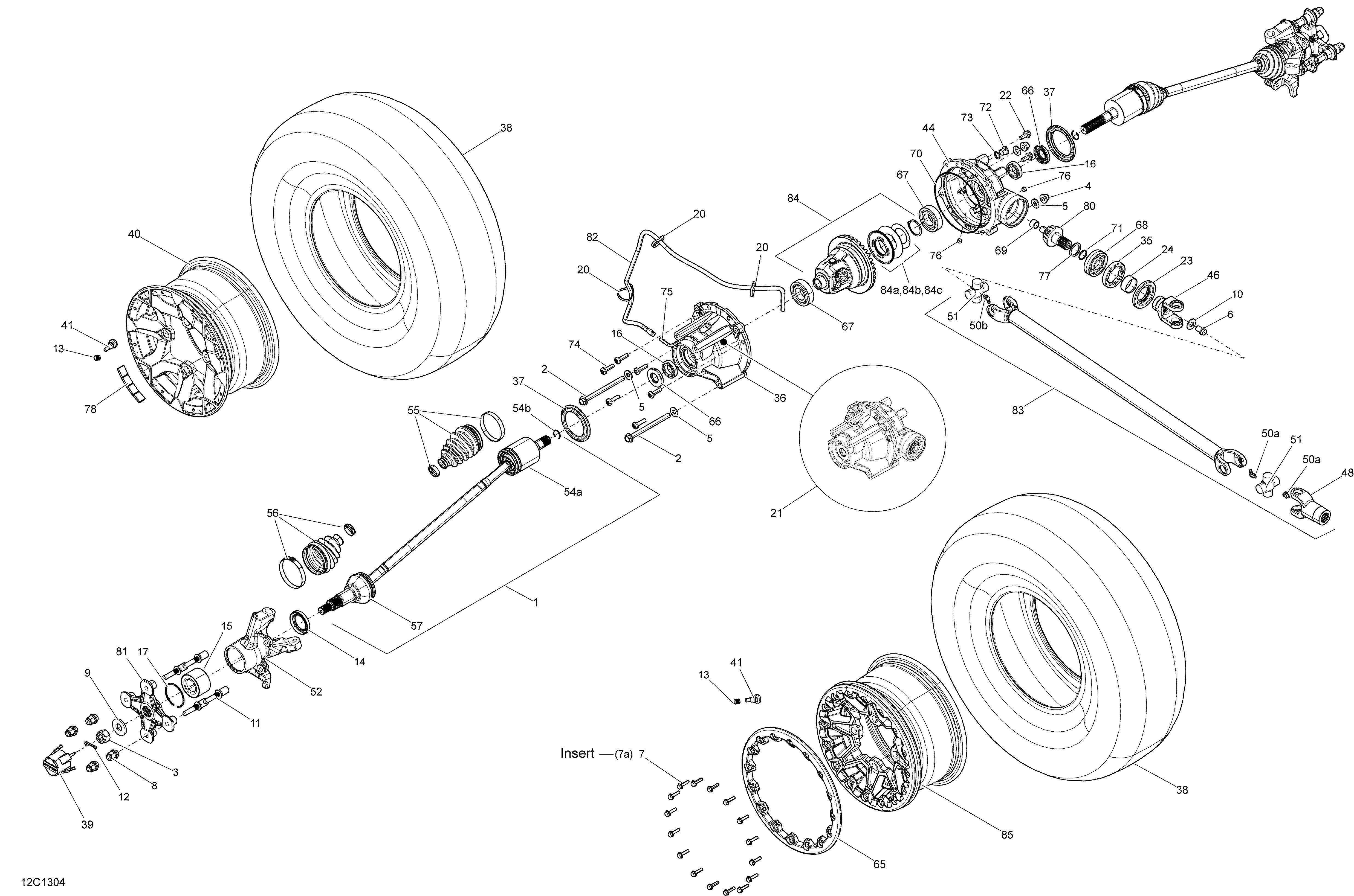

07- Drive System, Front для BRP Maverick 1000, STD, XRS - 2013
-
№АртикулНазвание
-
1705401236 RH Constant-Speed Universal JointRH Constant-Speed Universal Joint
-
1705401235 LH Constant-Speed Universal JointLH Constant-Speed Universal Joint
-
2230603046 Flanged Hex. Screw, M10 X 130Flanged Hex. Screw, M10 X 130
-
3250100047 Hex. Castellated Nut M18Hex. Castellated Nut M18
-
4233201416 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
5234201474 Conical Spring Washer 10 mmConical Spring Washer 10 mm
-
6250000378 Hex Flanged Screw M12 X 16, Scotch GripHex Flanged Screw M12 X 16, Scotch Grip
-
7250000435 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
7A293450317 InsertInsert
-
8250100100 Black Wheel Nut M10 X 1.25Black Wheel Nut M10 X 1.25
-
9250200049 Spring WasherSpring Washer
-
10250200102 Flat Washer M12Flat Washer M12
-
11250300051 Wheel StudWheel Stud
-
12250400036 Cotter PinCotter Pin
-
13293000110 Valve CapValve Cap
-
14293250246 O-RingO-Ring
-
15293350040 Cone BearingCone Bearing
-
16293350044 Ball BearingBall Bearing
-
17293370019 CirclipCirclip
-
20414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
21705401482 Front Differential Ass'yFront Differential Ass'y
-
22207582044 Hex. Flanged Screw M8 X 20, Scotch GripHex. Flanged Screw M8 X 20, Scotch Grip
-
23705401481 Oil SealOil Seal
-
24705400036 Wear RingWear Ring
-
35705400661 NutNut
-
36705400762 Front CoverFront Cover
-
37705400780 Wear SleeveWear Sleeve
-
38705401385 Front Tire Maxxis 27X9X12Front Tire Maxxis 27X9X12
-
38705401386 Front Tire. X Model, EuropeFront Tire. X Model, Europe
-
39705400928 Wheel CapWheel Cap
-
40705401091 Front RimFront Rim
-
41705400193 Rim Valve With CapRim Valve With Cap
-
44705401136 Front Gear CoverFront Gear Cover
-
46715900232 Yoke JointYoke Joint
-
48715900231 Yoke Joint. Cover 715900483Yoke Joint. Cover 715900483
-
50a703500813 Grease FittingGrease Fitting
-
50b703500815 Grease FittingGrease Fitting
-
51703500814 Unit Pack KitUnit Pack Kit
-
52705401204 LH Front KnuckleLH Front Knuckle
-
52705401205 RH Front KnuckleRH Front Knuckle
-
54a705401350 LH Plunging JointLH Plunging Joint
-
54a705401348 RH Plunging JointRH Plunging Joint
-
54b705401349 Circlip JointCirclip Joint
-
55705401346 Boot Kit, Differential SideBoot Kit, Differential Side
-
56705401345 Boot Kit, Wheel SideBoot Kit, Wheel Side
-
57705401344 CV JointCV Joint
-
65705401329 Yellow Reinforcement DiscYellow Reinforcement Disc
-
66705500255 Oil SealOil Seal
-
67705500259 Ball BearingBall Bearing
-
68705500260 Ball BearingBall Bearing
-
69705500261 Needle BearingNeedle Bearing
-
70705500265 SealSeal
-
71705500267 O-RingO-Ring
-
72705500504 Fill Level PlugFill Level Plug
-
73705500506 Copper WasherCopper Washer
-
74705500892 ScrewScrew
-
75705500893 Vent ValveVent Valve
-
76705500894 Drain PlugDrain Plug
-
77705501162 Pinion Gear ShimPinion Gear Shim
-
78705501385 1/2 OZ Weight1/2 OZ Weight
-
80705501588 10 Teeth Pinion10 Teeth Pinion
-
81705501900 Wheel HubWheel Hub
-
82415080200 Hose, PolyurethaneHose, Polyurethane
-
83705401196 Drive Axle Ass'yDrive Axle Ass'y
-
84705400645 DifferentialDifferential
-
84a703500049 Pinion Shim KitPinion Shim Kit
-
84b703500288 Differential Shim Spool KitDifferential Shim Spool Kit
-
84c703500050 Differential Shim Spool KitDifferential Shim Spool Kit
-
85705401155 Front RimFront Rim
