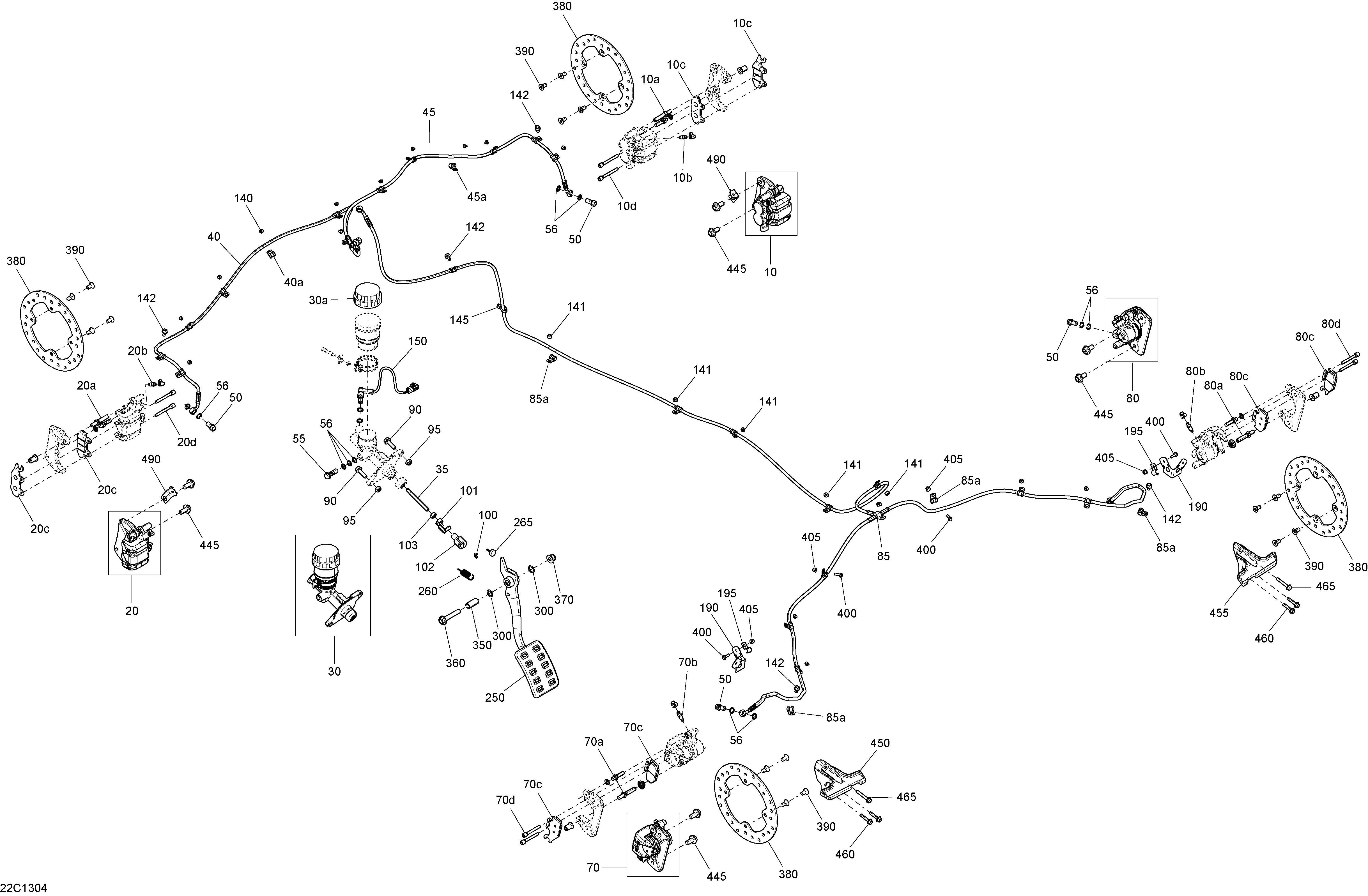

06- Brakes для BRP Maverick 1000, STD, XRS - 2013
-
№АртикулНазвание
-
10705600678 RH Caliper. Includes 10 to 10dRH Caliper. Includes 10 to 10d
-
10a715500333 Spring Boot KitSpring Boot Kit
-
10b705600080 Bleeding ScrewBleeding Screw
-
10c715500336 Brake Pad KitBrake Pad Kit
-
10d715500337 Pin SetPin Set
-
20705600679 LH Caliper. Includes 20 to 20dLH Caliper. Includes 20 to 20d
-
20a715500333 Spring Boot KitSpring Boot Kit
-
20b705600080 Bleeding ScrewBleeding Screw
-
20c715500335 Brake Pad KitBrake Pad Kit
-
20d715500337 Pin SetPin Set
-
30705600681 Master Cylinder. Includes 30 to 30aMaster Cylinder. Includes 30 to 30a
-
30a715500332 Diaphragm Cap KitDiaphragm Cap Kit
-
35705600833 Master Cylinder RodMaster Cylinder Rod
-
40705601079 LH Front Flexible Hose. Includes 40 to 40aLH Front Flexible Hose. Includes 40 to 40a
-
40a715900250 Hose ClipHose Clip
-
45705601080 RH Front Flexible Hose. Includes 45 to 45aRH Front Flexible Hose. Includes 45 to 45a
-
45a715900250 Hose ClipHose Clip
-
50705600609 Banjo BoltBanjo Bolt
-
55705600958 Banjo BoltBanjo Bolt
-
56705600310 Copper WasherCopper Washer
-
70705601089 LH Caliper. Includes 70 to 70dLH Caliper. Includes 70 to 70d
-
70a705601146 Spring Boot KitSpring Boot Kit
-
70b705600080 Bleeding ScrewBleeding Screw
-
70c705600398 Brake Pad KitBrake Pad Kit
-
70d705600081 Pin SetPin Set
-
80705601090 RH Caliper. Includes 80 to 80dRH Caliper. Includes 80 to 80d
-
80a705601146 Spring Boot KitSpring Boot Kit
-
80b705600080 Bleeding ScrewBleeding Screw
-
80c705601147 RH Brake Pad KitRH Brake Pad Kit
-
80d705600081 Pin SetPin Set
-
85705601081 Flexible Hose. Includes 85 to 85aFlexible Hose. Includes 85 to 85a
-
85a715900250 Hose ClipHose Clip
-
90207682544 Hex. Flanged Screw M8 X 25Hex. Flanged Screw M8 X 25
-
95232581414 Hex. Elastic Stop Nut M8Hex. Elastic Stop Nut M8
-
100371800700 Cotter PinCotter Pin
-
101250400062 PinPin
-
102705600100 YokeYoke
-
103232081414 Hex. Nut M8Hex. Nut M8
-
140390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
141232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
142210261040 Hex. Flanged Screw M6 X 10Hex. Flanged Screw M6 X 10
-
145414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
150705600798 Brake SwitchBrake Switch
-
190705601160 Hose SupportHose Support
-
195705601161 Half ClipHalf Clip
-
250705600724 Brake PedalBrake Pedal
-
260705600792 Brake Pedal SpringBrake Pedal Spring
-
265708000759 Rubber StopperRubber Stopper
-
300293300144 O-RingO-Ring
-
350705600815 Inner SpacerInner Spacer
-
360207605544 Hex. Flanged Screw M10 X 55Hex. Flanged Screw M10 X 55
-
370233201414 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
380705600999 Disc BrakeDisc Brake
-
390235381646 Torx Screw M8 X 16, Scotch GripTorx Screw M8 X 16, Scotch Grip
-
400210251680 Hex. Forming Screw M5 X 16Hex. Forming Screw M5 X 16
-
405233251414 Hex. Flanged Elastic Nut M5Hex. Flanged Elastic Nut M5
-
445250000601 Flanged Screw S.GRIP M10 X 20Flanged Screw S.GRIP M10 X 20
-
450705601197 LH DeflecttorLH Deflecttor
-
455705601198 RH DeflecttorRH Deflecttor
-
460207563044 Hex. Flanged Screw M6 X 30, Scotch GripHex. Flanged Screw M6 X 30, Scotch Grip
-
465207564044 Socket Head Screw M6 X 40, Scotch GripSocket Head Screw M6 X 40, Scotch Grip
-
490705601088 BracketBracket
