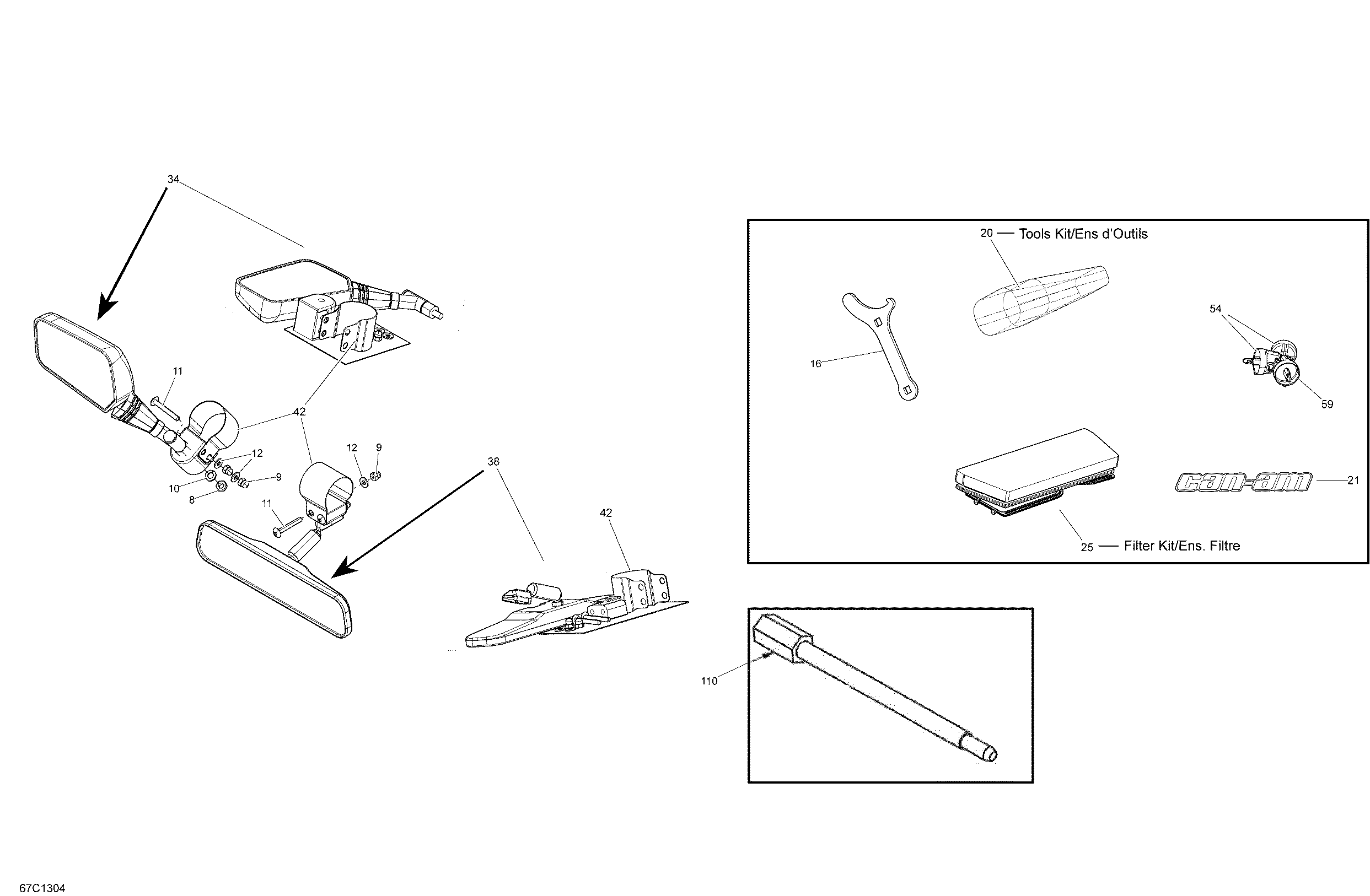

09- Mirrors And Tools для BRP Maverick 1000, STD, XRS - 2013
-
№АртикулНазвание
-
8232180600 Hex. Jam Nut M8Hex. Jam Nut M8
-
9232361493 Domed Nut M6Domed Nut M6
-
10234181401 Lock Washer 8 mmLock Washer 8 mm
-
11250000215 Torx Screw M6 X 45Torx Screw M6 X 45
-
12250200039 Flat WasherFlat Washer
-
16529000057 Adjustment WrenchAdjustment Wrench
-
20704700148 Tool KitTool Kit
-
21704902319 Cage Decal. X rs ModelCage Decal. X rs Model
-
25707800557 Filter KitFilter Kit
-
34708200182 Left Mirror Kit. EuropeLeft Mirror Kit. Europe
-
38708200183 Center Mirror Kit. EuropeCenter Mirror Kit. Europe
-
42708200185 Mirror ClampMirror Clamp
-
54710000817 Black-Electronic KeyBlack-Electronic Key
-
59710002183 Grey-Electronic KeyGrey-Electronic Key
-
110529036098 Crank Lock Driven OpenCrank Lock Driven Open
