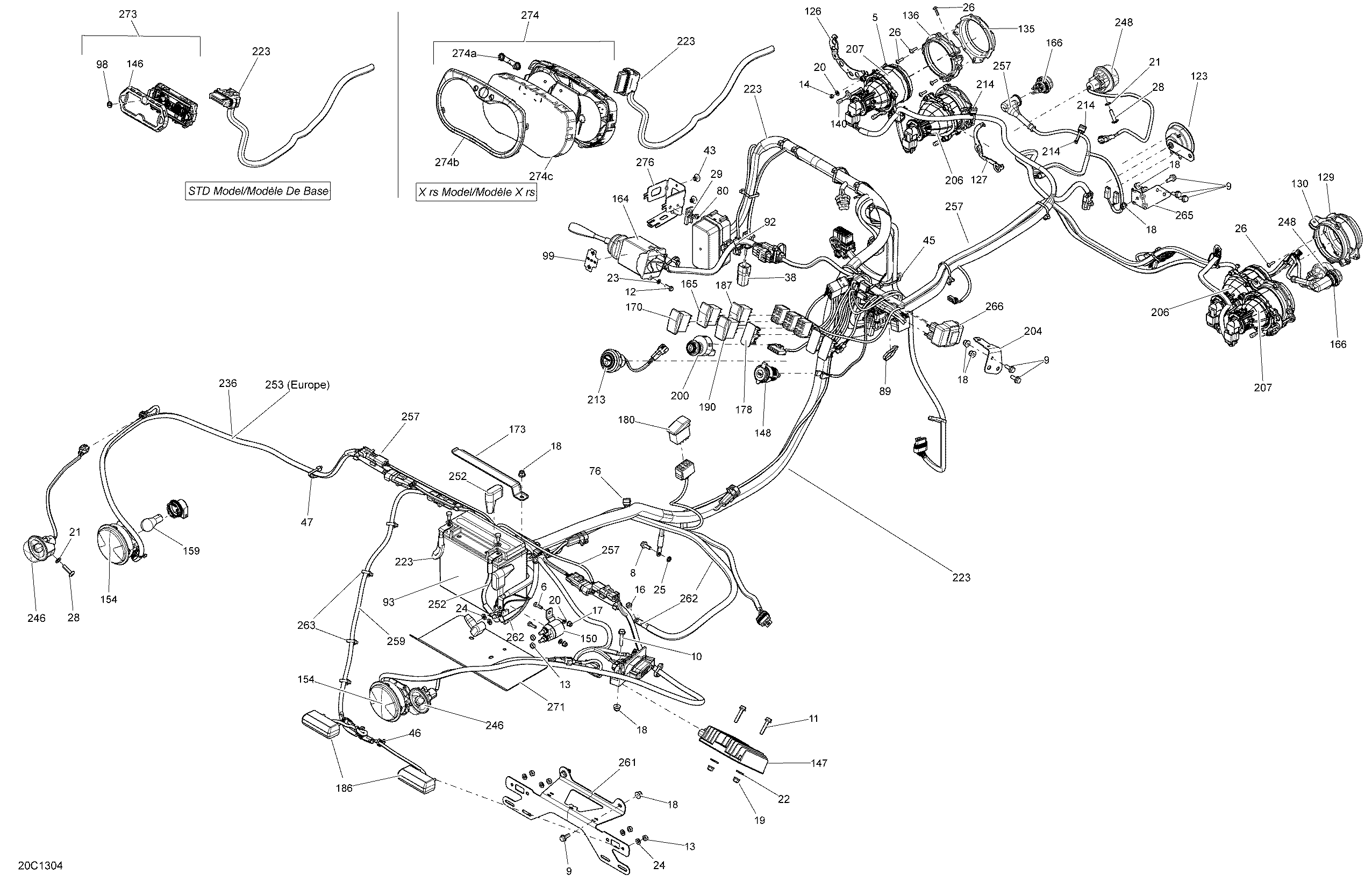

10- Electrical System для BRP Maverick 1000, STD, XRS - 2013
-
№АртикулНазвание
-
5207142544 Hex. Screw M4 X 25Hex. Screw M4 X 25
-
6207151644 Hex. Screw M5 X 16Hex. Screw M5 X 16
-
8207561644 Hex. Flanged Screw M6 X 16, Scotch GripHex. Flanged Screw M6 X 16, Scotch Grip
-
9207661644 Hex. Flanged Screw M6 X 16. EuropeHex. Flanged Screw M6 X 16. Europe
-
10207663034 Hex. Flanged Screw M6 X 30Hex. Flanged Screw M6 X 30
-
11207663056 Hex Flanged Screw M6 X 30Hex Flanged Screw M6 X 30
-
12210251680 Hex. Forming Screw M5 X 16. EuropeHex. Forming Screw M5 X 16. Europe
-
13232061600 Hex. Nut M6. EuropeHex. Nut M6. Europe
-
13232061600 Hex. Nut M6Hex. Nut M6
-
14232541414 Elastic Stop Nut M4Elastic Stop Nut M4
-
16232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
17233251414 Hex. Flanged Elastic Nut M5Hex. Flanged Elastic Nut M5
-
18233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
19233261494 Hex. Elastic Flanged Nut M6Hex. Elastic Flanged Nut M6
-
20234051410 Flat Washer M5Flat Washer M5
-
21234061410 Flat Washer 6 mm. EuropeFlat Washer 6 mm. Europe
-
22234062670 Flat WasherFlat Washer
-
23234151401 Lock Washer 5 mm. EuropeLock Washer 5 mm. Europe
-
24234161601 Lock Washer Helical M6. EuropeLock Washer Helical M6. Europe
-
24234161601 Lock Washer Helical M6Lock Washer Helical M6
-
25234461608 External Serrated Lock Washer 6 mmExternal Serrated Lock Washer 6 mm
-
26250000084 Phillips Screw K40 X 16Phillips Screw K40 X 16
-
28250000284 Torx Screw M6 x 25. EuropeTorx Screw M6 x 25. Europe
-
29270000141 ClipClip
-
38278002704 Diagnostic ConnectorDiagnostic Connector
-
43293150103 Pop Rivet 3/16''Pop Rivet 3/16''
-
45293730018 Mount DartMount Dart
-
46293750002 Tie-Rap 142 mm. EuropeTie-Rap 142 mm. Europe
-
47293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
76293750063 Clip Tie-RapClip Tie-Rap
-
80390402400 Pop Rivet 3/16''Pop Rivet 3/16''
-
89414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
92414227300 Clip. EuropeClip. Europe
-
93410301203 Battery Ass'y, 18 AmperesBattery Ass'y, 18 Amperes
-
98704901270 BRP Logo, 13 mm. STD ModelBRP Logo, 13 mm. STD Model
-
99704902614 Flasher Decal. EuropeFlasher Decal. Europe
-
123710000983 Horn. EuropeHorn. Europe
-
126710001036 LH High Light SupportLH High Light Support
-
126710001115 RH High Light SupportRH High Light Support
-
127710001037 LH Low Light SupportLH Low Light Support
-
127710001094 RH Low Light SupportRH Low Light Support
-
129710001081 RH Low Front HousingRH Low Front Housing
-
129710001083 LH Low Front HousingLH Low Front Housing
-
130710001082 RH Low Rear HousingRH Low Rear Housing
-
130710001084 LH Low Rear HousingLH Low Rear Housing
-
135710001085 RH High Front HousingRH High Front Housing
-
135710001087 LH High Front HousingLH High Front Housing
-
136710001086 RH High Rear HousingRH High Rear Housing
-
136710001088 LH High Rear HousingLH High Rear Housing
-
140710001147 Setting ScrewSetting Screw
-
146710001183 Trim Ring Ass'y. STD ModelTrim Ring Ass'y. STD Model
-
147710001191 Voltage RegulatorVoltage Regulator
-
148710001248 Outlet DCOutlet DC
-
150710001364 Starter RelayStarter Relay
-
154710001645 Tail LightTail Light
-
159520000758 BulbBulb
-
164710001721 Turn Signal. EuropeTurn Signal. Europe
-
165710001725 Hi/Low Beam SwitchHi/Low Beam Switch
-
166710001726 Day Light. EuropeDay Light. Europe
-
170710001737 4X4 Switch4X4 Switch
-
173710001916 Battery HolderBattery Holder
-
178710001999 Plug CarlingPlug Carling
-
180710002053 Switch, Over RideSwitch, Over Ride
-
186710002055 License Light. EuropeLicense Light. Europe
-
187710002076 Switch. EuropeSwitch. Europe
-
190710002199 PPS Sport SwitchPPS Sport Switch
-
200710002327 Ignition SwitchIgnition Switch
-
204710002408 Support. EuropeSupport. Europe
-
206710002524 Low Beam Ass'yLow Beam Ass'y
-
207710002525 High Beam Ass'yHigh Beam Ass'y
-
213710002594 Engine START ButtonEngine START Button
-
214710002896 Tie-Rap Clip. EuropeTie-Rap Clip. Europe
-
223710002924 Harness Ass'yHarness Ass'y
-
236710002925 Rear HarnessRear Harness
-
248710002964 Flasher. EuropeFlasher. Europe
-
252710003123 Positive CablePositive Cable
-
253710003126 Rear Harness. EuropeRear Harness. Europe
-
257710003127 Harness Ass'y. EuropeHarness Ass'y. Europe
-
259710003128 Harness Ass'y. EuropeHarness Ass'y. Europe
-
261710003150 Light Support. EuropeLight Support. Europe
-
262710003151 Positive CablePositive Cable
-
263710003168 Tie-RapTie-Rap
-
265710003170 Support. EuropeSupport. Europe
-
266710003239 Flasher Unit. EuropeFlasher Unit. Europe
-
271710003265 Heat DeflectorHeat Deflector
-
273710003288 Calibrated Speedometer. STD ModelCalibrated Speedometer. STD Model
-
274710003292 Calibrated Speedometer. X rs ModelCalibrated Speedometer. X rs Model
-
276710003335 Fuse HolderFuse Holder
-
274a415129355 Speedometer Button. X rs ModelSpeedometer Button. X rs Model
-
274b415129348 Gauge Ring. X rs ModelGauge Ring. X rs Model
-
274c415129349 Lens. X rs ModelLens. X rs Model
