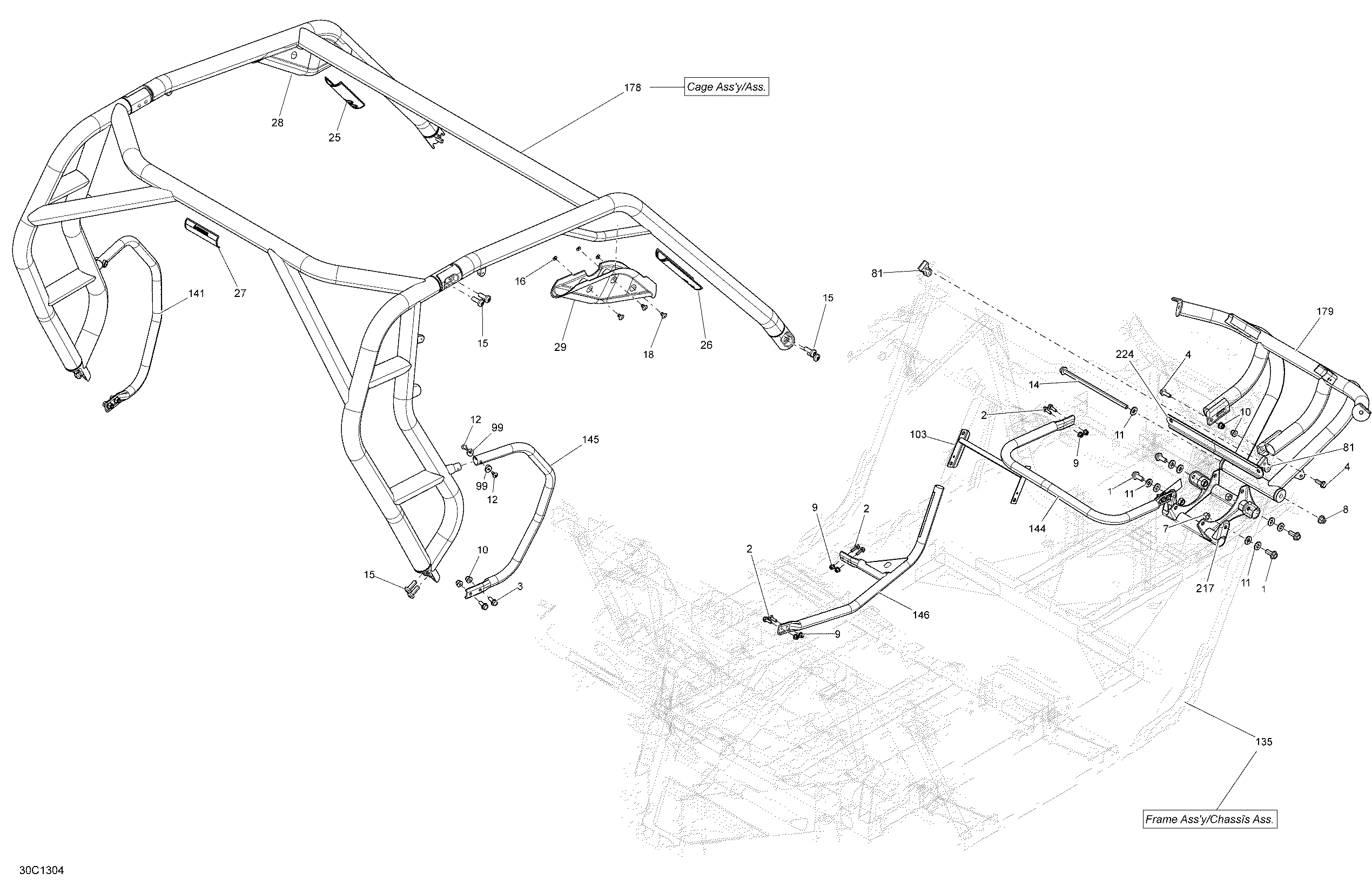

09- Frame для BRP Maverick 1000, STD, XRS - 2013
-
№АртикулНазвание
-
1207602546 Hex. Flanged Screw M10 X 25Hex. Flanged Screw M10 X 25
-
2207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
3207682044 Hex. Flanged Screw M8 X 20Hex. Flanged Screw M8 X 20
-
4207682544 Hex. Flanged Screw M8 X 25Hex. Flanged Screw M8 X 25
-
7232500416 Elastic Stop Nut M10Elastic Stop Nut M10
-
8233201416 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
9233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
10233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
11234201474 Conical Spring Washer 10 mmConical Spring Washer 10 mm
-
12250000439 Torx Truss Screw M6 X 14Torx Truss Screw M6 X 14
-
14250000597 Hex. Flange ScrewHex. Flange Screw
-
15250000624 Screw Torx M10 X 30Screw Torx M10 X 30
-
16250200121 Flat WasherFlat Washer
-
18293150108 Pop Rivet 3/16''Pop Rivet 3/16''
-
25704902413 Warning LabelWarning Label
-
26704902415 Warning LabelWarning Label
-
27704903492 Warning LabelWarning Label
-
28705004985 LH Cage Cap MouldingLH Cage Cap Moulding
-
29705004986 RH Cage Cap MouldingRH Cage Cap Moulding
-
81705203415 Binding BlockBinding Block
-
99705202223 Offset WasherOffset Washer
-
103705203330 Reinforcement PanelReinforcement Panel
-
135715001976 Frame Ass'y, BlackFrame Ass'y, Black
-
141705203323 LH Side Protector TubeLH Side Protector Tube
-
144705203332 HandleHandle
-
145705203321 RH Side Protector TubeRH Side Protector Tube
-
146705203319 Console HandleConsole Handle
-
178705203567 Safety Cage KitSafety Cage Kit
-
179705203077 Front BumperFront Bumper
-
217705203296 Differential SupportDifferential Support
-
224705203454 Front Suspension LinkFront Suspension Link
