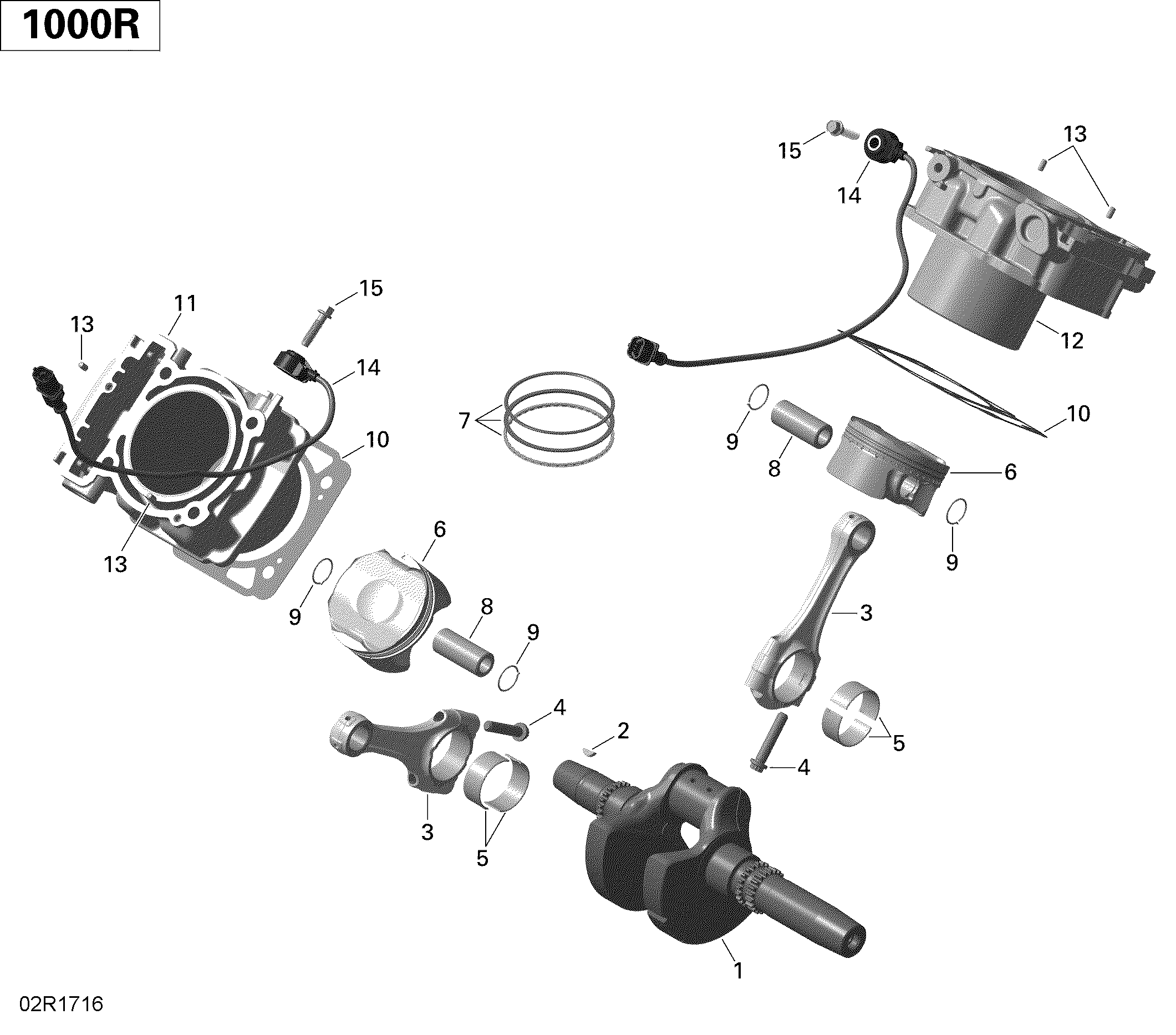

01- Crankshaft, Piston and Cylinder - 1000R для BRP 2-Maverick MAX - 2017
-
№АртикулНазвание
-
1420219736 CrankshaftCrankshaft
-
2420246570 Woodruff Key 4 X 5Woodruff Key 4 X 5
-
3420217556 Connecting Rod Ass'y. Includes 3 to 4Connecting Rod Ass'y. Includes 3 to 4
-
4420641475 Connecting Rod Screw M9 X 1Connecting Rod Screw M9 X 1
-
5420233726 Plain BearingPlain Bearing
-
6420686094 Piston Ass'y, 90.958 mm. Includes 6 to 7Piston Ass'y, 90.958 mm. Includes 6 to 7
-
7420296774 Piston Ring SetPiston Ring Set
-
8420216351 Piston PinPiston Pin
-
9420245436 Piston CirclipPiston Circlip
-
10420630210 GasketGasket
-
11420413110 Cylinder With Sleeve, FrontCylinder With Sleeve, Front
-
12420413115 Cylinder With Sleeve, RearCylinder With Sleeve, Rear
-
13420929650 Drive Pin 5 X 10Drive Pin 5 X 10
-
14420664031 Noise SensorNoise Sensor
-
15420441751 Flanged Hex. Screw M8 X 30Flanged Hex. Screw M8 X 30
