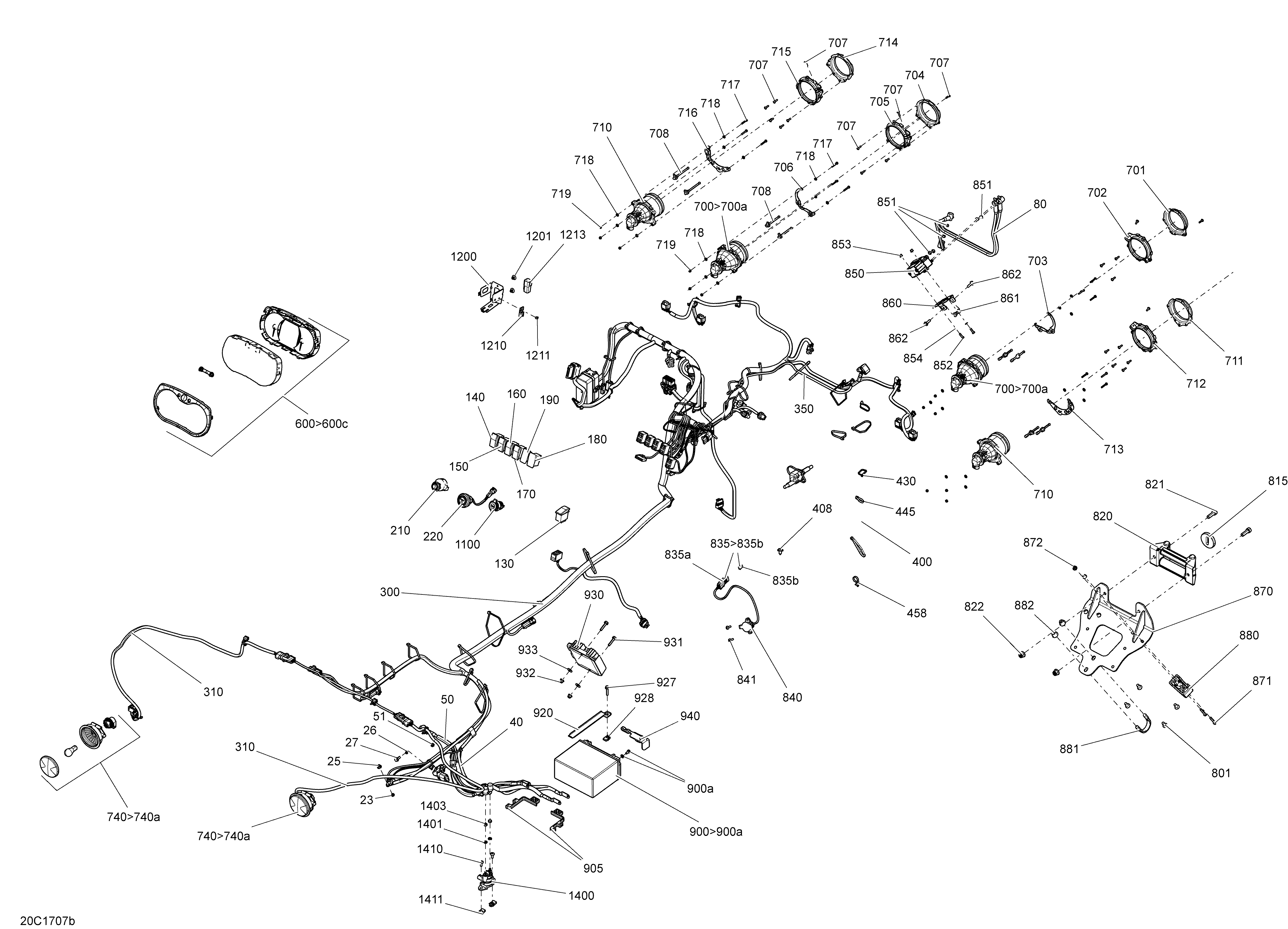

10- Electrical System - 1000R EFI Package XMR для BRP 2-Maverick MAX - 2017
-
№АртикулНазвание
-
23234461608 External Serrated Lock Washer 6 mmExternal Serrated Lock Washer 6 mm
-
25233061414 Hex. Flanged Nut M6Hex. Flanged Nut M6
-
26234461608 External Serrated Lock Washer 6 mmExternal Serrated Lock Washer 6 mm
-
27207561644 Hex. Flanged Screw M6 X 16, Scotch GripHex. Flanged Screw M6 X 16, Scotch Grip
-
40710005240 Negative Winch CableNegative Winch Cable
-
50710004390 Positive CablePositive Cable
-
51232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
80710005216 Winch Harness Ass'yWinch Harness Ass'y
-
130710002053 Switch, Over RideSwitch, Over Ride
-
140710001725 Hi/Low SwitchHi/Low Switch
-
150710001737 SwitchSwitch
-
160710003541 Switch PPS SportSwitch PPS Sport
-
170710001781 Switch DPSSwitch DPS
-
180710002052 SwitchSwitch
-
190710001999 Plug CarlingPlug Carling
-
210710003847 Ignition SwitchIgnition Switch
-
220710002594 Engine START ButtonEngine START Button
-
300710005229 Main Harness Ass'yMain Harness Ass'y
-
310710004685 Rear HarnessRear Harness
-
350710005215 Winch Harness Ass'yWinch Harness Ass'y
-
408293730018 Mount DartMount Dart
-
486293750002 Tie-Rap 142 mmTie-Rap 142 mm
-
400293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
458293750009 Tie-Rap 173 mmTie-Rap 173 mm
-
445414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
443414227300 ClipClip
-
430710002896 Tie-Rap ClipTie-Rap Clip
-
480710003168 Tie-RapTie-Rap
-
600>600c710005116 Speedometer Ass'y. Incldues 600 to 600cSpeedometer Ass'y. Incldues 600 to 600c
-
600a415129348 Gauge RingGauge Ring
-
600b415129349 LensLens
-
600c415129355 Speedometer ButtonSpeedometer Button
-
700>700a710002524 Low Beam Ass'y. Includes 700 to 700aLow Beam Ass'y. Includes 700 to 700a
-
700a415129249 Halogen BulbHalogen Bulb
-
701710001081 RH Low Front HousingRH Low Front Housing
-
702710001082 RH Low Rear HousingRH Low Rear Housing
-
703710001094 RH Low Light SupportRH Low Light Support
-
704710001083 LH Low Front HousingLH Low Front Housing
-
705710001084 LH Low Rear HousingLH Low Rear Housing
-
706710001037 LH Low Light SupportLH Low Light Support
-
707250000723 Phillips Screw K40 X 16Phillips Screw K40 X 16
-
708710001147 Setting ScrewSetting Screw
-
710710002525 High Beam Ass'yHigh Beam Ass'y
-
711710001085 RH High Front HousingRH High Front Housing
-
712710001086 RH High Rear HousingRH High Rear Housing
-
713710001115 RH High Light SupportRH High Light Support
-
714710001087 LH High Front HousingLH High Front Housing
-
715710001088 LH High Rear HousingLH High Rear Housing
-
716710001036 LH High Light SupportLH High Light Support
-
717207142544 Hex. Screw M4 X 25Hex. Screw M4 X 25
-
718234051410 Flat Washer M5Flat Washer M5
-
719232541414 Elastic Stop Nut M4Elastic Stop Nut M4
-
740>740a710001645 Tail Light. Includes 740 to 740aTail Light. Includes 740 to 740a
-
740a520000758 BulbBulb
-
801235382046 Torx Screw M8 X 20, Scotch GripTorx Screw M8 X 20, Scotch Grip
-
810715003523 Hook and Strap kitHook and Strap kit
-
815710005142 Winch Cable StopperWinch Cable Stopper
-
820710004822 Winch Cable GuideWinch Cable Guide
-
821205003044 Socket Screw M10 x 30Socket Screw M10 x 30
-
822233201414 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
835>835b710001059 Connector Ass'y. Includes 835 to 835bConnector Ass'y. Includes 835 to 835b
-
835a278000281 Female Terminal Housing, 3 CircuitsFemale Terminal Housing, 3 Circuits
-
835b710000992 ClipClip
-
840710005258 Winch ConnectorWinch Connector
-
841250000720 Torx Screw K50 X 16Torx Screw K50 X 16
-
850710004824 Winch SolenoidWinch Solenoid
-
851232561434 Elastic Stop Nut M6Elastic Stop Nut M6
-
852207151644 Hex. Screw M5 X 16Hex. Screw M5 X 16
-
853233251494 Elastic Flanged Nut M5Elastic Flanged Nut M5
-
854234051410 Flat Washer M5Flat Washer M5
-
860710004119 Solenoids SupportSolenoids Support
-
861233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
862207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
870715001699 Winch SupportWinch Support
-
871207064044 Hex. Screw M6 X 40Hex. Screw M6 X 40
-
872233261494 Hex. Elastic Flanged Nut M6Hex. Elastic Flanged Nut M6
-
880705006999 ClampClamp
-
881705203504 U-Bolt M10U-Bolt M10
-
882233201464 Hex. Elast. Flanged Nut M10Hex. Elast. Flanged Nut M10
-
900>900a410301203 Battery Ass'y, 18 Amperes. Includes 900 to 900aBattery Ass'y, 18 Amperes. Includes 900 to 900a
-
900a250000282 Battery Bolt KitBattery Bolt Kit
-
905710003602 Battery Rubber PadBattery Rubber Pad
-
920710001916 Battery HolderBattery Holder
-
927207563034 Hex. Flanged Screw M6 X 30, Scotch GripHex. Flanged Screw M6 X 30, Scotch Grip
-
928250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
930710001191 Voltage RegulatorVoltage Regulator
-
931207563034 Hex. Flanged Screw M6 X 30, Scotch GripHex. Flanged Screw M6 X 30, Scotch Grip
-
932233261494 Hex. Elastic Flanged Nut M6Hex. Elastic Flanged Nut M6
-
933234062670 Flat Washer, StainlessFlat Washer, Stainless
-
940710003582 CapCap
-
1100710001248 Outlet DCOutlet DC
-
1200710003335 Fuse HolderFuse Holder
-
1201293150103 Black Pop Rivet 3/16''Black Pop Rivet 3/16''
-
1210270000141 ClipClip
-
1211390402400 Pop Rivet 3/16''Pop Rivet 3/16''
-
1213710003006 HousingHousing
-
1400278003012 Starter RelayStarter Relay
-
1401234161601 Lock Washer Helical M6Lock Washer Helical M6
-
1403232061600 Hex. Nut M6Hex. Nut M6
-
1410250000717 Torx Head Screw M6 X 16Torx Head Screw M6 X 16
-
1411250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
