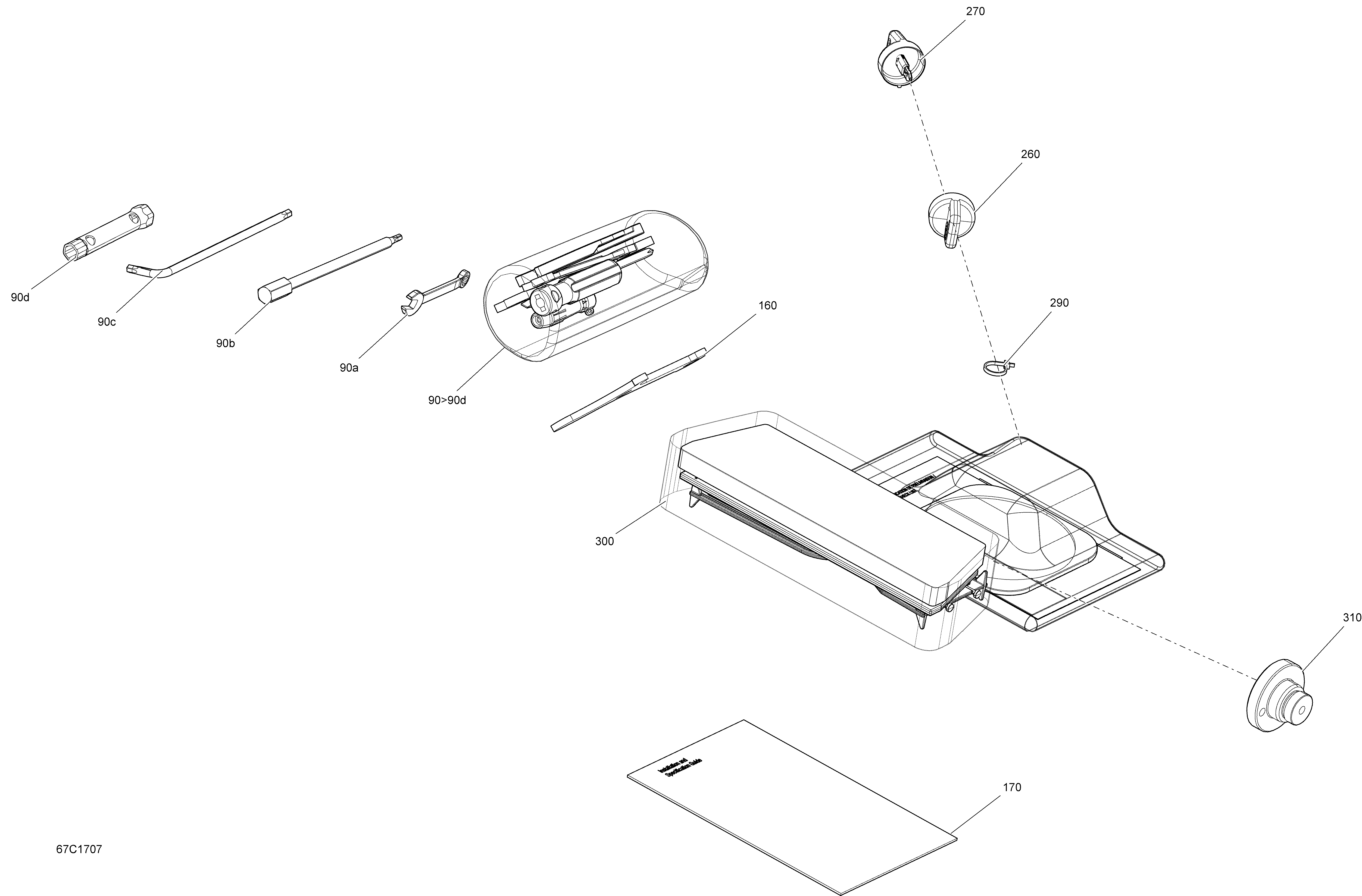

09- Mirrors And Tools - All Models для BRP 2-Maverick MAX - 2017
-
№АртикулНазвание
-
90>90d704700162 Tool Kit. Includes 90 to 90dTool Kit. Includes 90 to 90d
-
90A708200338 Wrench 8 mmWrench 8 mm
-
90b529000072 Puller/Locking ToolPuller/Locking Tool
-
90c708200340 Torx Key T30Torx Key T30
-
90d529014900 Socket Wrench 10/13 mmSocket Wrench 10/13 mm
-
160529000057 Adjustment WrenchAdjustment Wrench
-
170219001639 Winch Booklet. Package XMRWinch Booklet. Package XMR
-
260710000817 Black-Electronic KeyBlack-Electronic Key
-
270710002183 Grey-Electronic KeyGrey-Electronic Key
-
290293750001 Tie-Rap 94 mmTie-Rap 94 mm
-
300707800573 Filter Kit. Engine 1000R EFIFilter Kit. Engine 1000R EFI
-
310708200504 Tool Kit CVT. Package XMRTool Kit CVT. Package XMR
-
310708200504 Tool Kit CVT. Engine 1000T EFITool Kit CVT. Engine 1000T EFI
