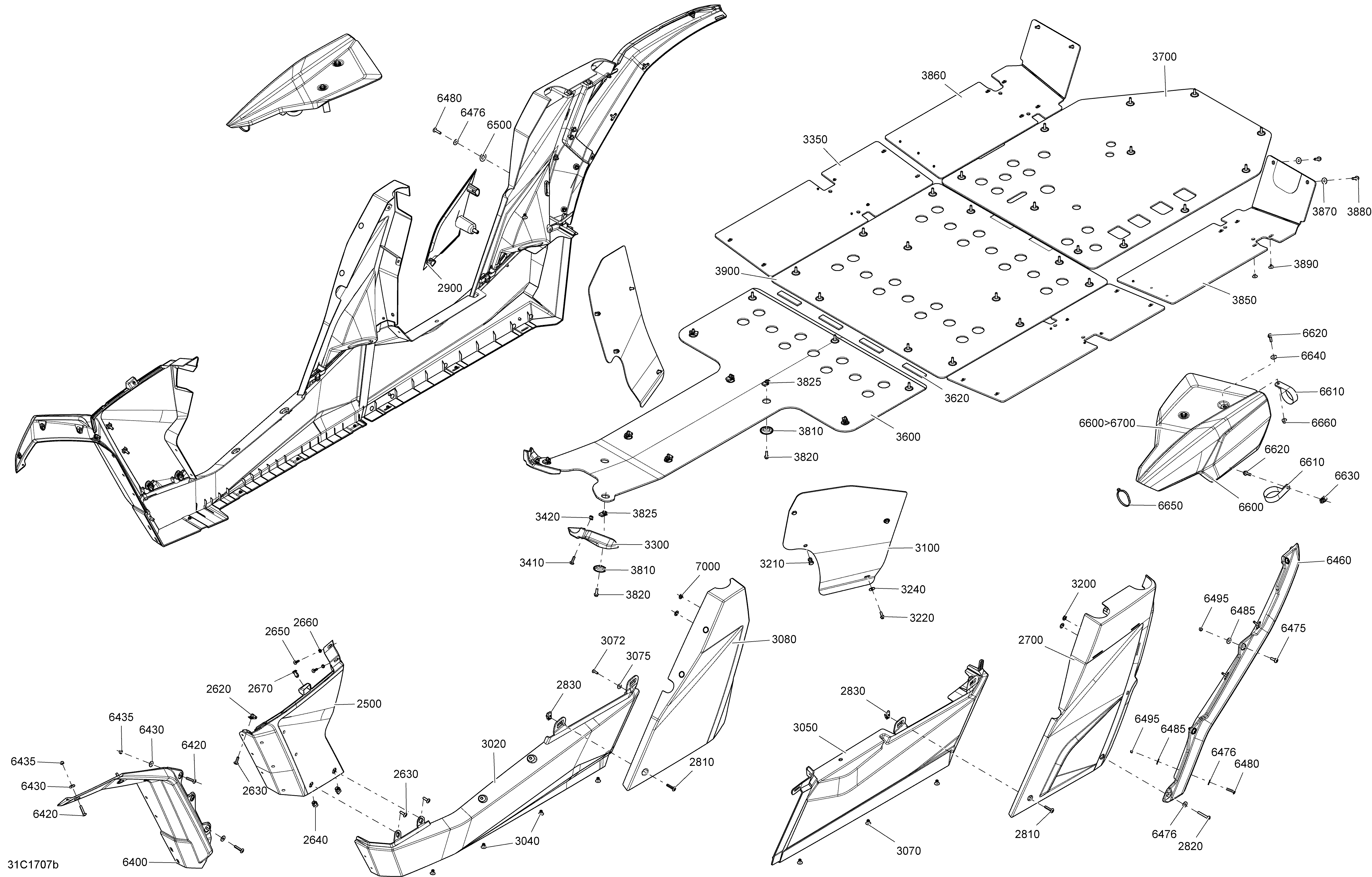

09- Body And Accessories - Middle Section All Models для BRP 2-Maverick MAX - 2017
-
№АртикулНазвание
-
2500705007853 Deep Black LH Front Lateral Panel. Package DPSDeep Black LH Front Lateral Panel. Package DPS
-
2500705007854 Deep Black RH Front Lateral Panel. Package DPSDeep Black RH Front Lateral Panel. Package DPS
-
2500705009717 Hyper Silver LH Front Lateral PanelHyper Silver LH Front Lateral Panel
-
2500705009718 Hyper Silver RH Front Lateral PanelHyper Silver RH Front Lateral Panel
-
2500705008488 Timeless Black LH Front Lateral Panel. Package XDS XRSTimeless Black LH Front Lateral Panel. Package XDS XRS
-
2500705008489 Timeless Black RH Front Lateral Panel. Package XDS XRSTimeless Black RH Front Lateral Panel. Package XDS XRS
-
2500705007358 White LH Front Lateral Pannel. Package XDS STDWhite LH Front Lateral Pannel. Package XDS STD
-
2500705007359 White RH Front Lateral Pannel. Package XDS STDWhite RH Front Lateral Pannel. Package XDS STD
-
2620250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
2630250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
2640250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
2650250000760 Torx Screw Truss Head PT.K50 X 20Torx Screw Truss Head PT.K50 X 20
-
2660234051410 Flat Washer M5Flat Washer M5
-
2670293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
2700705009851 Black LH Rear Lateral Panel. Package DPSBlack LH Rear Lateral Panel. Package DPS
-
2700705009853 Black RH Lateral Panel. Package DPSBlack RH Lateral Panel. Package DPS
-
2700705009721 Hyper Silver LH Rear Lateral PanelHyper Silver LH Rear Lateral Panel
-
2700705009854 Hyper Silver Side PanelHyper Silver Side Panel
-
2700705008509 Timeless Black RH Rear Lateral Panel. Package XDS XRSTimeless Black RH Rear Lateral Panel. Package XDS XRS
-
2700705008492 Tmeless Black LH Rear Lateral Panel. Package XDS XRSTmeless Black LH Rear Lateral Panel. Package XDS XRS
-
2700705007362 White LH Rear Lateral Panel. Package XDS STDWhite LH Rear Lateral Panel. Package XDS STD
-
2700705008458 White RH Rear Lateral Panel. Package XDS STDWhite RH Rear Lateral Panel. Package XDS STD
-
2810250000843 Torx Truss Screw M6 X 30Torx Truss Screw M6 X 30
-
2820250000748 Torx Screw M6 X 45Torx Screw M6 X 45
-
2830250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
2900705007419 White RH Panel Cover. Package XDS STDWhite RH Panel Cover. Package XDS STD
-
2900705008510 Timeless Black RH Panel Cover. Package XDS XRSTimeless Black RH Panel Cover. Package XDS XRS
-
2900705009856 Deep Black Panel Cover. Package DPSDeep Black Panel Cover. Package DPS
-
2900705009857 Hyper Silver Panel CoverHyper Silver Panel Cover
-
3020705005423 Black LH Lower PanelBlack LH Lower Panel
-
3020705005424 Black RH Lower PanelBlack RH Lower Panel
-
3040293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
3050705005425 Black LH Rear Lower PanelBlack LH Rear Lower Panel
-
3050705005426 Black RH Rear Lower PanelBlack RH Rear Lower Panel
-
3070293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
3072250000720 Torx Screw K50 X 16Torx Screw K50 X 16
-
3075250200025 Washer M5Washer M5
-
3080705009859 Deep Black LH Ctr Cage Panel Cover. Package DPSDeep Black LH Ctr Cage Panel Cover. Package DPS
-
3080705009860 Deep Black RH Ctr Cage Panel Cover. Package DPSDeep Black RH Ctr Cage Panel Cover. Package DPS
-
3080705009861 Hyper Silver LH Ctr Cage Panel CoverHyper Silver LH Ctr Cage Panel Cover
-
3080705009862 Hyper Silver RH Ctr Cage Panel CoverHyper Silver RH Ctr Cage Panel Cover
-
3080705008511 Timeless Black LH Ctr Cage Panel Cover. Package XDS XRSTimeless Black LH Ctr Cage Panel Cover. Package XDS XRS
-
3080705008512 Timeless Black Met RH Center Cage Panel. Package XDS XRSTimeless Black Met RH Center Cage Panel. Package XDS XRS
-
3080705007421 White LH Center Cage Panel. Package XDS STDWhite LH Center Cage Panel. Package XDS STD
-
3080705007422 White RH Center Cage Panel. Package XDS STDWhite RH Center Cage Panel. Package XDS STD
-
3100705007827 Inner FenderInner Fender
-
3200250100031 Push NutPush Nut
-
3210293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
3220210261650 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
3240234062670 Flat Washer, StainlessFlat Washer, Stainless
-
3300705006038 LH Bumper Skid Cap. Package XMR, DPS, XDS STDLH Bumper Skid Cap. Package XMR, DPS, XDS STD
-
3300705006039 RH Bumper Skid Cap. Package XMR, DPS, XDS STDRH Bumper Skid Cap. Package XMR, DPS, XDS STD
-
3350705008421 Side Protector PlateSide Protector Plate
-
3410250000712 Torx Screw M6 X 20. Package XMR, DPS, XDS STDTorx Screw M6 X 20. Package XMR, DPS, XDS STD
-
3420233261494 Hex. Elastic Flanged Nut M6. Package XMR, DPS, XDS STDHex. Elastic Flanged Nut M6. Package XMR, DPS, XDS STD
-
3600705005798 Front Skid PlateFront Skid Plate
-
3620291001932 PadPad
-
3700705005480 Rear Skid Plate. Package XMR, DPSRear Skid Plate. Package XMR, DPS
-
3700705008958 Skid Plate. Package XDS STD, XDS XRS, XDS DPSSkid Plate. Package XDS STD, XDS XRS, XDS DPS
-
3810705007171 CupCup
-
3820210262050 Washer Head Hexagonal ScrewWasher Head Hexagonal Screw
-
3825250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
3850705009444 Skid Plate. Engine 1000TEFISkid Plate. Engine 1000TEFI
-
3860705007038 Lateral Skid PlateLateral Skid Plate
-
3870250200097 Flat WasherFlat Washer
-
3880210262050 Washer Head Hexagonal ScrewWasher Head Hexagonal Screw
-
3890293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
3900705009447 Skid PlateSkid Plate
-
6400705008988 LH Front Deflector. Package XMR, XDS XRS, XDS DPSLH Front Deflector. Package XMR, XDS XRS, XDS DPS
-
6400705008989 RH Front Deflector. Package XMR, XDS XRS, XDS DPSRH Front Deflector. Package XMR, XDS XRS, XDS DPS
-
6420250000842 Torx Screw M6 X 30 Stainless. Package XMR, XDS XRS, XDS DPSTorx Screw M6 X 30 Stainless. Package XMR, XDS XRS, XDS DPS
-
6430234062670 Flat Washer, Stainless. Package XMR, XDS XRS, XDS DPSFlat Washer, Stainless. Package XMR, XDS XRS, XDS DPS
-
6435232561434 Elastic Stop Nut M6. Package XMR, XDS XRS, XDS DPSElastic Stop Nut M6. Package XMR, XDS XRS, XDS DPS
-
6460705007637 LH Rear Deflector. Package XMR, XDS XRS, XDS DPSLH Rear Deflector. Package XMR, XDS XRS, XDS DPS
-
6460705007638 RH Rear Deflector. Package XMR, XDS XRS, XDS DPSRH Rear Deflector. Package XMR, XDS XRS, XDS DPS
-
6475250000712 Torx Screw M6 X 20. Package XMR, XDS XRS, XDS DPSTorx Screw M6 X 20. Package XMR, XDS XRS, XDS DPS
-
6476234062670 Flat Washer, Stainless. Package XMR, XDS XRS, XDS DPSFlat Washer, Stainless. Package XMR, XDS XRS, XDS DPS
-
6480250000758 Torx Screw M6 X 25. Package XMR, XDS XRS, XDS DPSTorx Screw M6 X 25. Package XMR, XDS XRS, XDS DPS
-
6485234062670 Flat Washer, Stainless. Package XMR, XDS XRS, XDS DPSFlat Washer, Stainless. Package XMR, XDS XRS, XDS DPS
-
6495232561434 Elastic Stop Nut M6. Package XMR, XDS XRS, XDS DPSElastic Stop Nut M6. Package XMR, XDS XRS, XDS DPS
-
6500250200086 Flat Washer. Package XMR, XDS XRS, XDS DPSFlat Washer. Package XMR, XDS XRS, XDS DPS
-
6600>6700705008450 Black Cage Cover Kit. Package XDS XRS Model Internationnal. Includes 6000 to 6000hBlack Cage Cover Kit. Package XDS XRS Model Internationnal. Includes 6000 to 6000h
-
6600>6700705008450 Black Cage Cover Kit. Package XDS DPS Model Internationnal. Includes 6000 to 6000hBlack Cage Cover Kit. Package XDS DPS Model Internationnal. Includes 6000 to 6000h
-
6600>6700705008450 Black Cage Cover Kit. Package XMR. Includes 6000 to 6000hBlack Cage Cover Kit. Package XMR. Includes 6000 to 6000h
-
6600705008452 Black LH Top Center Cage Cover. Package XDS DPS and XDS XRS, Model North AmericaBlack LH Top Center Cage Cover. Package XDS DPS and XDS XRS, Model North America
-
6610705005626 ''P'' Bracket, 2'' Dia.. Package XDS DPS and XDS XRS, Model North America''P'' Bracket, 2'' Dia.. Package XDS DPS and XDS XRS, Model North America
-
6620207662054 Hex. Flanged Screw M6 X 20. Package XDS DPS and XDS XRS, Model North AmericaHex. Flanged Screw M6 X 20. Package XDS DPS and XDS XRS, Model North America
-
6630250000048 Panel Nut M6 X 1.0. Package XDS DPS and XDS XRS, Model North AmericaPanel Nut M6 X 1.0. Package XDS DPS and XDS XRS, Model North America
-
6640234062670 Flat Washer, Stainless. Package XDS DPS and XDS XRS, Model North AmericaFlat Washer, Stainless. Package XDS DPS and XDS XRS, Model North America
-
6650293750008 Tie-Rap 350 mm. Package XDS DPS and XDS XRS, Model North AmericaTie-Rap 350 mm. Package XDS DPS and XDS XRS, Model North America
-
6660233261494 Hex. Elastic Flanged Nut M6. Package XDS DPS and XDS XRS, Model North AmericaHex. Elastic Flanged Nut M6. Package XDS DPS and XDS XRS, Model North America
-
6600705008453 Black RH Top Center Cage Cover. Package XDS DPS and XDS XRS, Model North AmericaBlack RH Top Center Cage Cover. Package XDS DPS and XDS XRS, Model North America
-
7000250100031 Push NutPush Nut
