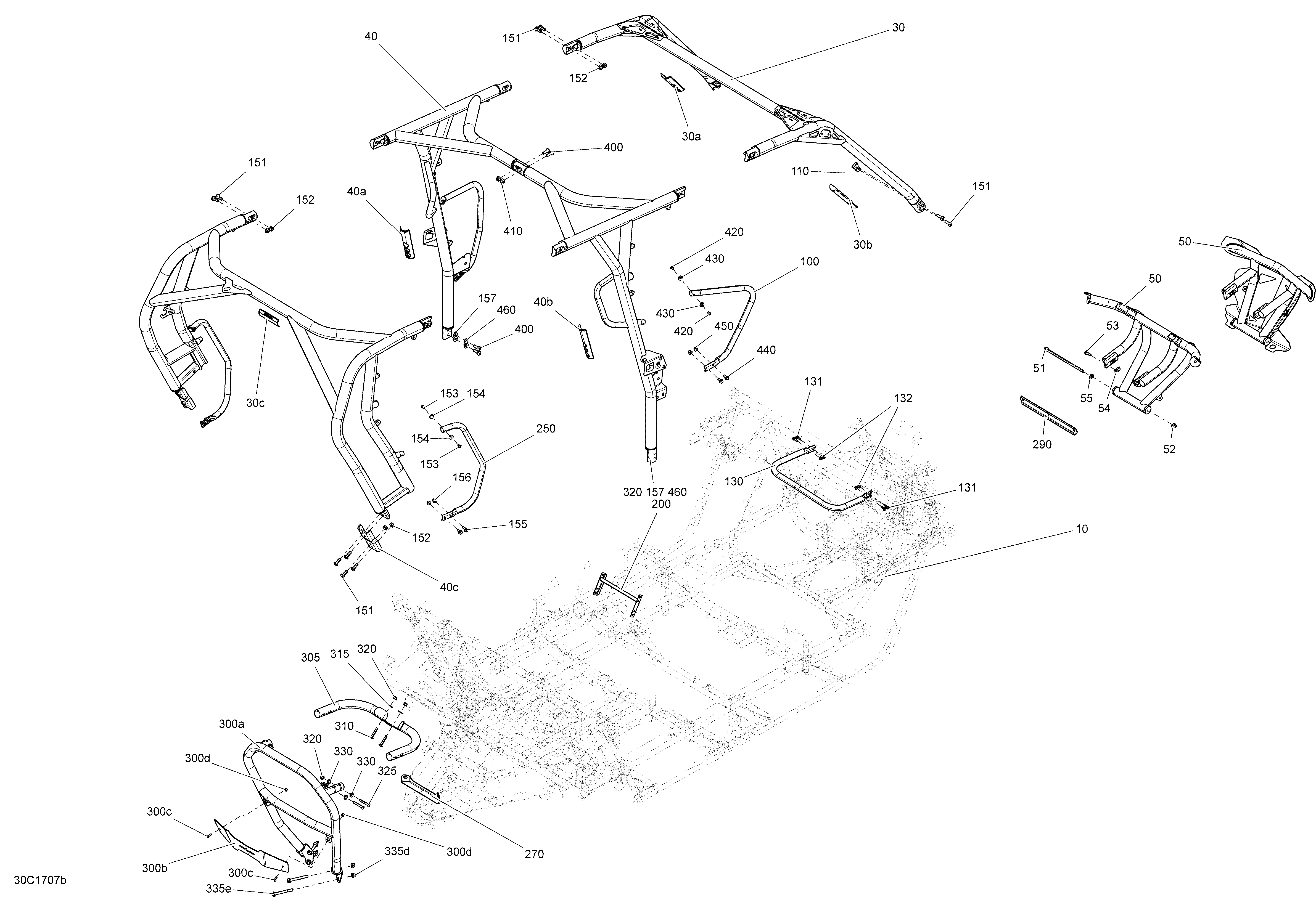

09- Frame - All Models для BRP 2-Maverick MAX - 2017
-
№АртикулНазвание
-
10715003790 Frame MAX Ass'y Black. Package XMR, DPSFrame MAX Ass'y Black. Package XMR, DPS
-
10715003795 Frame MAX Ass'y Black. Package XDS XRS, XDS DPS, XDS STDFrame MAX Ass'y Black. Package XDS XRS, XDS DPS, XDS STD
-
30715003420 Black Cage Kit. Includes 30 to 30cBlack Cage Kit. Includes 30 to 30c
-
30715003427 Red Cage Kit. Includes 30 to 30cRed Cage Kit. Includes 30 to 30c
-
30715003423 Blue Cage Kit. Includes 30 to 30cBlue Cage Kit. Includes 30 to 30c
-
30a704903679 Warning LabelWarning Label
-
30b704903680 Warning LabelWarning Label
-
30c704903492 Warning LabelWarning Label
-
40715003424 Black Center Safety Cage Kit. Includes 40 to 40dBlack Center Safety Cage Kit. Includes 40 to 40d
-
40715003429 Red Center Safety Cage Kit. Includes 40 to 40dRed Center Safety Cage Kit. Includes 40 to 40d
-
40715003425 Blue Center Safety Cage Kit. Includes 40 to 40dBlue Center Safety Cage Kit. Includes 40 to 40d
-
40a704903679 Warning LabelWarning Label
-
40b704903680 Warning LabelWarning Label
-
40b233181414 Hex. Flanged Nut M8Hex. Flanged Nut M8
-
40c705203514 Rear Hand MountingRear Hand Mounting
-
50705203685 Black Front Bumper. Package DPS, XMR, XDS STDBlack Front Bumper. Package DPS, XMR, XDS STD
-
50705204266 Front Bumper Ass'y. Package XDS DPS, XDS XRSFront Bumper Ass'y. Package XDS DPS, XDS XRS
-
51250000597 Hex. Flange ScrewHex. Flange Screw
-
52233201416 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
53207382544 Hex. Flange ScrewHex. Flange Screw
-
54250100118 Panel Nut M8 X 1.25Panel Nut M8 X 1.25
-
55234201474 Conical Spring Washer 10 mmConical Spring Washer 10 mm
-
100705203642 Black RH Front Side Protector TubeBlack RH Front Side Protector Tube
-
100705203643 Black LH Front Side Protector TubeBlack LH Front Side Protector Tube
-
100705204069 Red RH Front Side Protector TubeRed RH Front Side Protector Tube
-
100705204068 Red LH Front Side Protector TubeRed LH Front Side Protector Tube
-
100705204819 Blue RH Front Side Protector TubeBlue RH Front Side Protector Tube
-
100705204818 Blue LH Front Side Protector TubeBlue LH Front Side Protector Tube
-
110705203415 Binding BlockBinding Block
-
130705203332 Black HandleBlack Handle
-
131207662046 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
132233261416 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
151250000848 Screw Pan M10 X 30Screw Pan M10 X 30
-
152233101464 Hex. Elastic Flange Nut , M10 X 1.5Hex. Elastic Flange Nut , M10 X 1.5
-
153250000789 Torx Truss M6X14Torx Truss M6X14
-
154705202223 Offset WasherOffset Washer
-
155207682044 Hex. Flanged Screw M8 X 20Hex. Flanged Screw M8 X 20
-
156233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
157250200154 WasherWasher
-
250705203649 Black LH Rear Side Protector TubeBlack LH Rear Side Protector Tube
-
250705203652 Black RH Rear Side Protector TubeBlack RH Rear Side Protector Tube
-
250705204064 Red LH Rear Side Protector TubeRed LH Rear Side Protector Tube
-
250705204065 Red RH Rear Side Protector TubeRed RH Rear Side Protector Tube
-
250705204820 Blue LH Rear Side Protector TubeBlue LH Rear Side Protector Tube
-
250705204821 Blue RH Rear Side Protector TubeBlue RH Rear Side Protector Tube
-
270705203695 Reinforcement. Package DPS, XMRReinforcement. Package DPS, XMR
-
290705203454 Front Suspension LinkFront Suspension Link
-
300a705204767 Rear Bumper. Package XDS XRSRear Bumper. Package XDS XRS
-
300b705203282 Rear Protector. Package XDS XRSRear Protector. Package XDS XRS
-
300c250000234 Torx Screw M6 X 20, Stainless. Package XDS XRSTorx Screw M6 X 20, Stainless. Package XDS XRS
-
300d233261494 Hex. Elastic Flanged Nut M6. Package XDS XRSHex. Elastic Flanged Nut M6. Package XDS XRS
-
305705204766 Upper Arm. Package XDS XRSUpper Arm. Package XDS XRS
-
310250000761 Torx Truss Screw M8 X 50. Package XDS XRSTorx Truss Screw M8 X 50. Package XDS XRS
-
315234082410 Flat Washer 8 mm. Package XDS XRSFlat Washer 8 mm. Package XDS XRS
-
320233281464 Elastic Flange Nut M8. Package XDS XRSElastic Flange Nut M8. Package XDS XRS
-
325250000777 Torx Screw Scotch Grip M8X60. Package XDS XRSTorx Screw Scotch Grip M8X60. Package XDS XRS
-
330708300563 Washer. Package XDS XRSWasher. Package XDS XRS
-
335d233201416 Hex. Flanged Elastic Nut M10. Package XDS XRSHex. Flanged Elastic Nut M10. Package XDS XRS
-
335e207609046 Screw-Hex Flange M10 X 90. Package XDS XRSScrew-Hex Flange M10 X 90. Package XDS XRS
-
400250000848 Screw Pan M10 X 30Screw Pan M10 X 30
-
410233101464 Hex. Elastic Flange Nut , M10 X 1.5Hex. Elastic Flange Nut , M10 X 1.5
-
420250000789 Torx Truss M6X14Torx Truss M6X14
-
430705202223 Offset WasherOffset Washer
-
440207682044 Hex. Flanged Screw M8 X 20Hex. Flanged Screw M8 X 20
-
450233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
460250200154 WasherWasher
