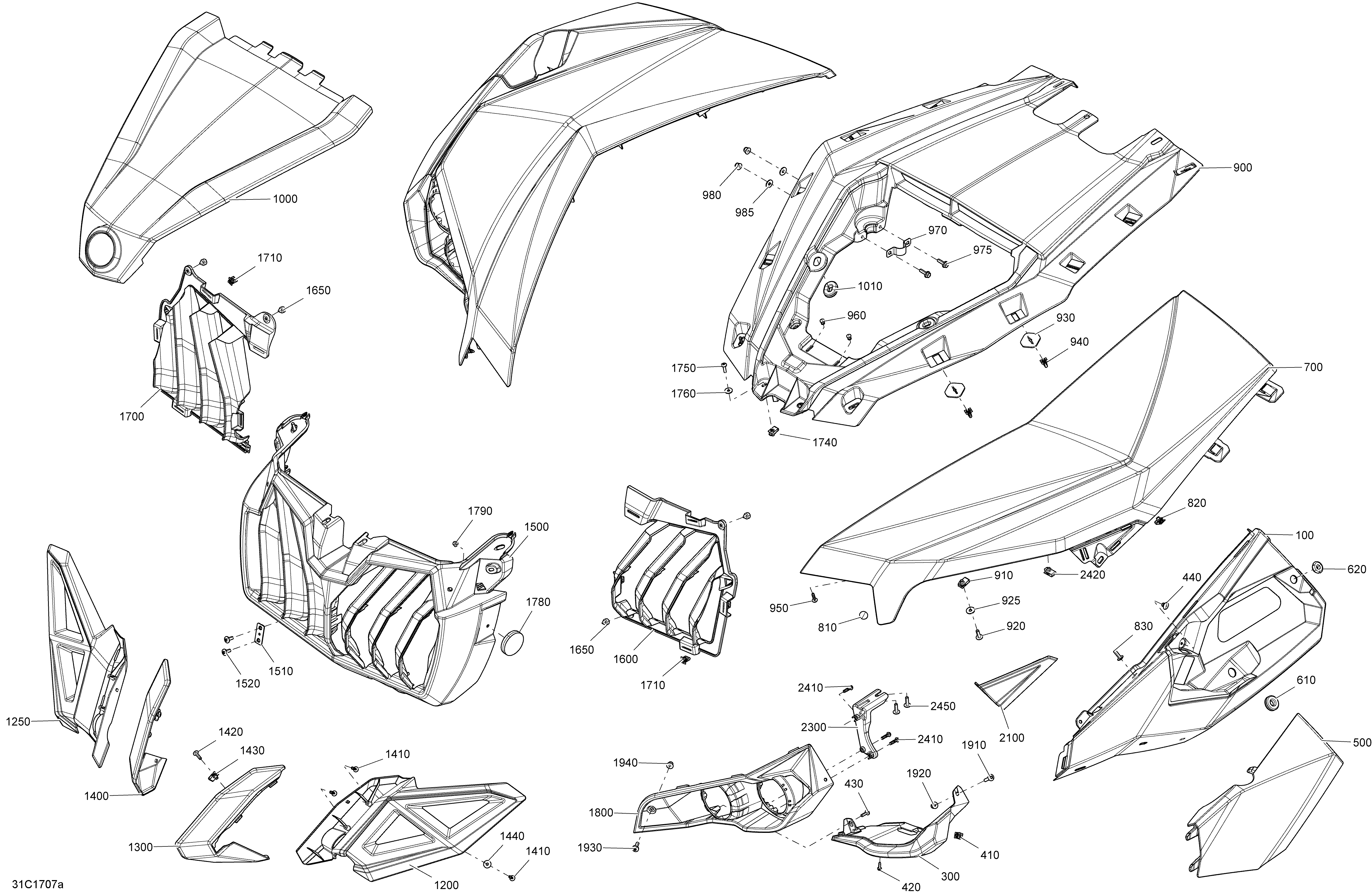

09- Body And Accessories - Front Section All Models для BRP 2-Maverick MAX - 2017
-
№АртикулНазвание
-
100705008534 Black Carbon Fiber LH Front Fender. Package XDS XRSBlack Carbon Fiber LH Front Fender. Package XDS XRS
-
100705008535 Black Carbon Fiber RH Front Fender. Package XDS XRSBlack Carbon Fiber RH Front Fender. Package XDS XRS
-
100705009668 Hyper Silver LH Front FenderHyper Silver LH Front Fender
-
100705009669 Hyper Silver RH Front FenderHyper Silver RH Front Fender
-
100705008941 Quarry Gray LH Front FenderQuarry Gray LH Front Fender
-
100705008942 Quarry Gray RH Front FenderQuarry Gray RH Front Fender
-
100705009666 Timeless Black LH Front Fender. Package XMRTimeless Black LH Front Fender. Package XMR
-
100705009667 Timeless Black RH Front Fender. Package XMRTimeless Black RH Front Fender. Package XMR
-
300705011048 Can-Am Red LH Fender Trim. Package XDS XRSCan-Am Red LH Fender Trim. Package XDS XRS
-
300705011049 Can-Am Red RH Fender Trim. Package XDS XRSCan-Am Red RH Fender Trim. Package XDS XRS
-
300705009672 Gulfstream Blue LH Fender TrimGulfstream Blue LH Fender Trim
-
300705009673 Gulfstream Blue RH Fender TrimGulfstream Blue RH Fender Trim
-
300705009670 Quarry Grey LH Fender Trim. Package DPSQuarry Grey LH Fender Trim. Package DPS
-
300705009671 Quarry Grey RH Fender Trim. Package DPSQuarry Grey RH Fender Trim. Package DPS
-
410517302785 ClipClip
-
420250000202 Self Tapping Screw #8 X 5/8Self Tapping Screw #8 X 5/8
-
430250000720 Torx Screw K50 X 16Torx Screw K50 X 16
-
440293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
500705008536 Black carbon Fiber LH Cover Front Fender. Package XDS XRSBlack carbon Fiber LH Cover Front Fender. Package XDS XRS
-
500705008537 Black Carbon Fiber RH Cover Front Fender. Package XDS XRSBlack Carbon Fiber RH Cover Front Fender. Package XDS XRS
-
500705009678 Hyper Silver LH Cover Fender. Package XDS DPSHyper Silver LH Cover Fender. Package XDS DPS
-
500705009679 Hyper Silver RH Cover Fender. Package XDS DPSHyper Silver RH Cover Fender. Package XDS DPS
-
500705009676 Quarry Grey LH Cover Fender. Package DPSQuarry Grey LH Cover Fender. Package DPS
-
500705009677 Quarry Grey RH Cover Fender. Package DPSQuarry Grey RH Cover Fender. Package DPS
-
500705009680 Timeless Black LH Cover Fender. Package XMRTimeless Black LH Cover Fender. Package XMR
-
500705009681 Timeless Black RH Cover Fender. Package XMRTimeless Black RH Cover Fender. Package XMR
-
500705007983 White LH Cover Front Fender. Package XDS STDWhite LH Cover Front Fender. Package XDS STD
-
500705007984 White RH Cover Front Fender. Package XDS STDWhite RH Cover Front Fender. Package XDS STD
-
610517303756 GrommetGrommet
-
620705003264 GrommetGrommet
-
700705009708 Hyper Silver LH Fixed HoodHyper Silver LH Fixed Hood
-
700705009709 Hyper Silver RH Fixed HoodHyper Silver RH Fixed Hood
-
700705008947 Quarry Gray LH Fixe HoodQuarry Gray LH Fixe Hood
-
700705008948 Quarry Gray RH Fixe HoodQuarry Gray RH Fixe Hood
-
700705008538 Timeless Black LH Fixe Hood. Package XDS XRSTimeless Black LH Fixe Hood. Package XDS XRS
-
700705008539 Timeless Black RH Fixe Hood. Package XDS XRSTimeless Black RH Fixe Hood. Package XDS XRS
-
810414644300 DartDart
-
820250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
830250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
900705005821 Fixe Center Hood. Except Package XMRFixe Center Hood. Except Package XMR
-
900705007960 Fixe Center Hood. Package XMRFixe Center Hood. Package XMR
-
910250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
920250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
925234062670 Flat Washer, StainlessFlat Washer, Stainless
-
930705003841 Support PlateSupport Plate
-
940517302785 ClipClip
-
950250000760 Torx Screw Truss Head PT.K50 X 20Torx Screw Truss Head PT.K50 X 20
-
960293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
970705006623 ClampClamp
-
975207662054 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
980233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
985234062670 Flat Washer, StainlessFlat Washer, Stainless
-
1000705007060 Black Removable Hood. Package DPSBlack Removable Hood. Package DPS
-
1000705007129 Black Carbon Fiber Removable Hood. Package XDS XRSBlack Carbon Fiber Removable Hood. Package XDS XRS
-
1000705008186 Bright White Removable Hood. Package XDS STDBright White Removable Hood. Package XDS STD
-
1000705009710 Timeless Black Removable HoodTimeless Black Removable Hood
-
1010705005156 Oval WasherOval Washer
-
1200705007497 LH Bumper Grill. Package XMR, DPS, XDS STDLH Bumper Grill. Package XMR, DPS, XDS STD
-
1250705007498 RH Bumper Grill. Package XMR, DPS, XDS STDRH Bumper Grill. Package XMR, DPS, XDS STD
-
1300705007352 White LH Bumper Cap. Package XDS STDWhite LH Bumper Cap. Package XDS STD
-
1300705009711 Gulfstream Blue LH Bumper Cap. Package XMRGulfstream Blue LH Bumper Cap. Package XMR
-
1300705010791 Can-Am Red LH Bumper Cap. Package DPSCan-Am Red LH Bumper Cap. Package DPS
-
1400705007353 White RH Bumper Cap. Package XDS STDWhite RH Bumper Cap. Package XDS STD
-
1400705009712 Gulfstream Blue RH Bumper Cap. Package XMRGulfstream Blue RH Bumper Cap. Package XMR
-
1400705010792 Can-Am Red RH Bumper Cap. Package DPSCan-Am Red RH Bumper Cap. Package DPS
-
1410250000760 Torx Screw Truss Head PT.K50 X 20. Package XMR, DPS, XDS STDTorx Screw Truss Head PT.K50 X 20. Package XMR, DPS, XDS STD
-
1420250000724 Torx Screw M5 X 20. Package XMR, DPS, XDS STDTorx Screw M5 X 20. Package XMR, DPS, XDS STD
-
1430250000079 Panel Nut M5 X 0.8. Package XMR, DPS, XDS STDPanel Nut M5 X 0.8. Package XMR, DPS, XDS STD
-
1440250200025 Washer M5. Package XMR, DPS, XDS STDWasher M5. Package XMR, DPS, XDS STD
-
1500705005784 Front Radiator GrillFront Radiator Grill
-
1510705006635 Radiator Grill BracketRadiator Grill Bracket
-
1520250000721 Torx ScrewTorx Screw
-
1600705005983 LH Rear Radiator GrillLH Rear Radiator Grill
-
1650293830005 Rubber BumperRubber Bumper
-
1700705005984 RH Rear Radiator GrillRH Rear Radiator Grill
-
1710517302785 ClipClip
-
1740250000079 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
1750250000724 Torx Screw M5 X 20Torx Screw M5 X 20
-
1760250200025 Washer M5Washer M5
-
1780705011222 Amber ReflectorAmber Reflector
-
1800705004508 LH Front FaciaLH Front Facia
-
1800705004509 RH Front FaciaRH Front Facia
-
1910250000758 Torx Screw M6 X 25Torx Screw M6 X 25
-
1920233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
1930250000712 Torx Screw M6 X 20Torx Screw M6 X 20
-
1940233261434 Flanged Elastic Nut M6Flanged Elastic Nut M6
-
2100705005992 LH Front Facia TrimLH Front Facia Trim
-
2100705005993 RH Front Facia TrimRH Front Facia Trim
-
2300705006078 LH Front Facia SupportLH Front Facia Support
-
2300705006079 RH Front Facia SupportRH Front Facia Support
-
2410250000760 Torx Screw Truss Head PT.K50 X 20Torx Screw Truss Head PT.K50 X 20
-
2420250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
2450250000722 Torx Screw M6 X 20Torx Screw M6 X 20
