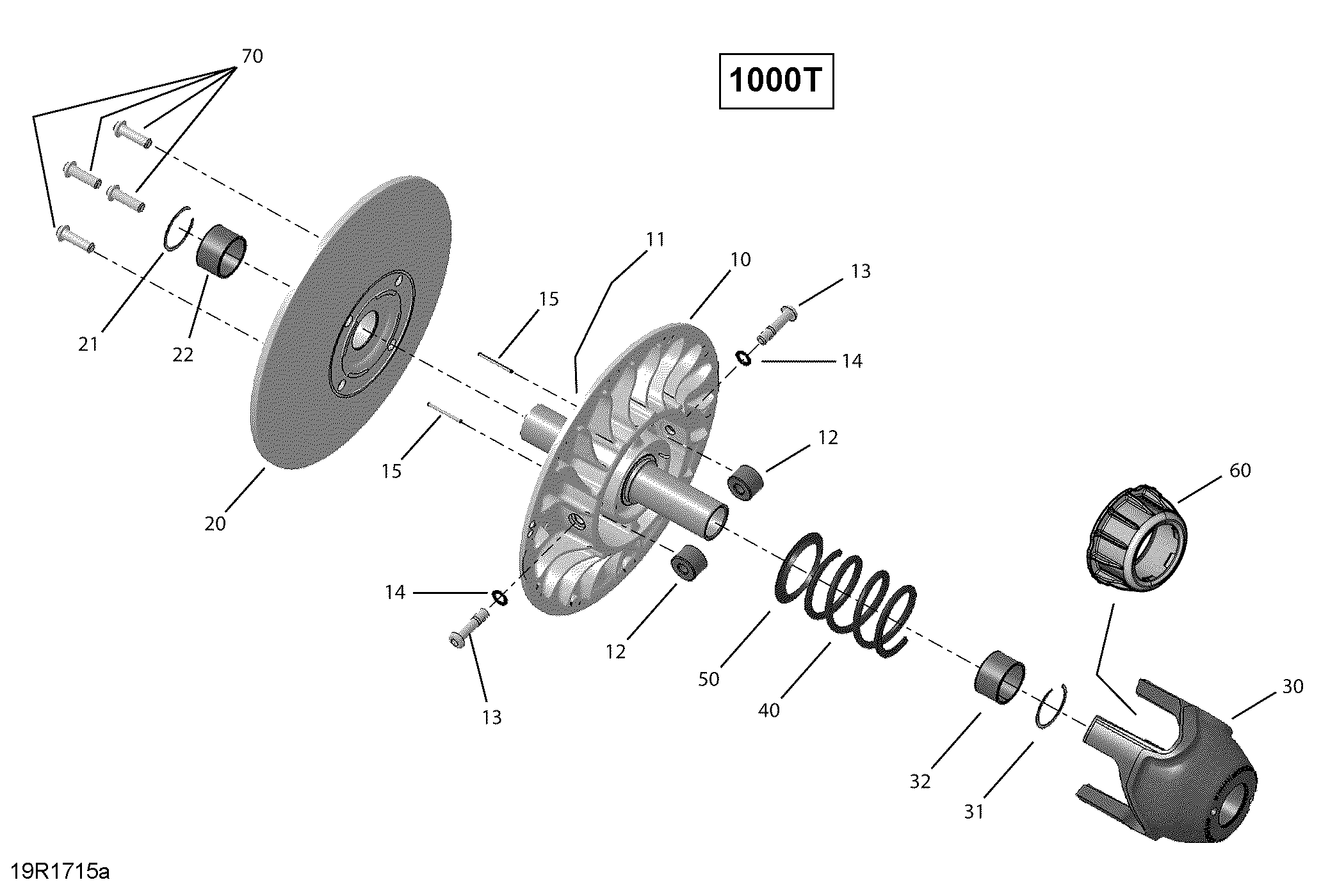

05- Transmission, Driven Pulley - Turbo для BRP 2-Maverick MAX - 2017
-
№АртикулНазвание
-
10707001812 Fixed Flange Ass'y. Includes 10 to 15Fixed Flange Ass'y. Includes 10 to 15
-
11707001648 RingRing
-
12417127016 RollerRoller
-
13417127294 Pivot StudPivot Stud
-
14250200009 Lock Washer 8 mmLock Washer 8 mm
-
15250400070 Spring PinSpring Pin
-
20707001770 Sliding Flange Ass'y. Includes 20 to 22Sliding Flange Ass'y. Includes 20 to 22
-
21293370052 CirclipCirclip
-
22707001651 BushingBushing
-
30707001769 Cam Ass'y. Includes 30 to 32Cam Ass'y. Includes 30 to 32
-
31293370052 CirclipCirclip
-
32707001651 BushingBushing
-
40414949500 SpringSpring
-
50707001650 Swivel AbutmentSwivel Abutment
-
60707001777 Spring ChamberSpring Chamber
-
70250000707 Hex. Button Head Screw M8 X 25Hex. Button Head Screw M8 X 25
