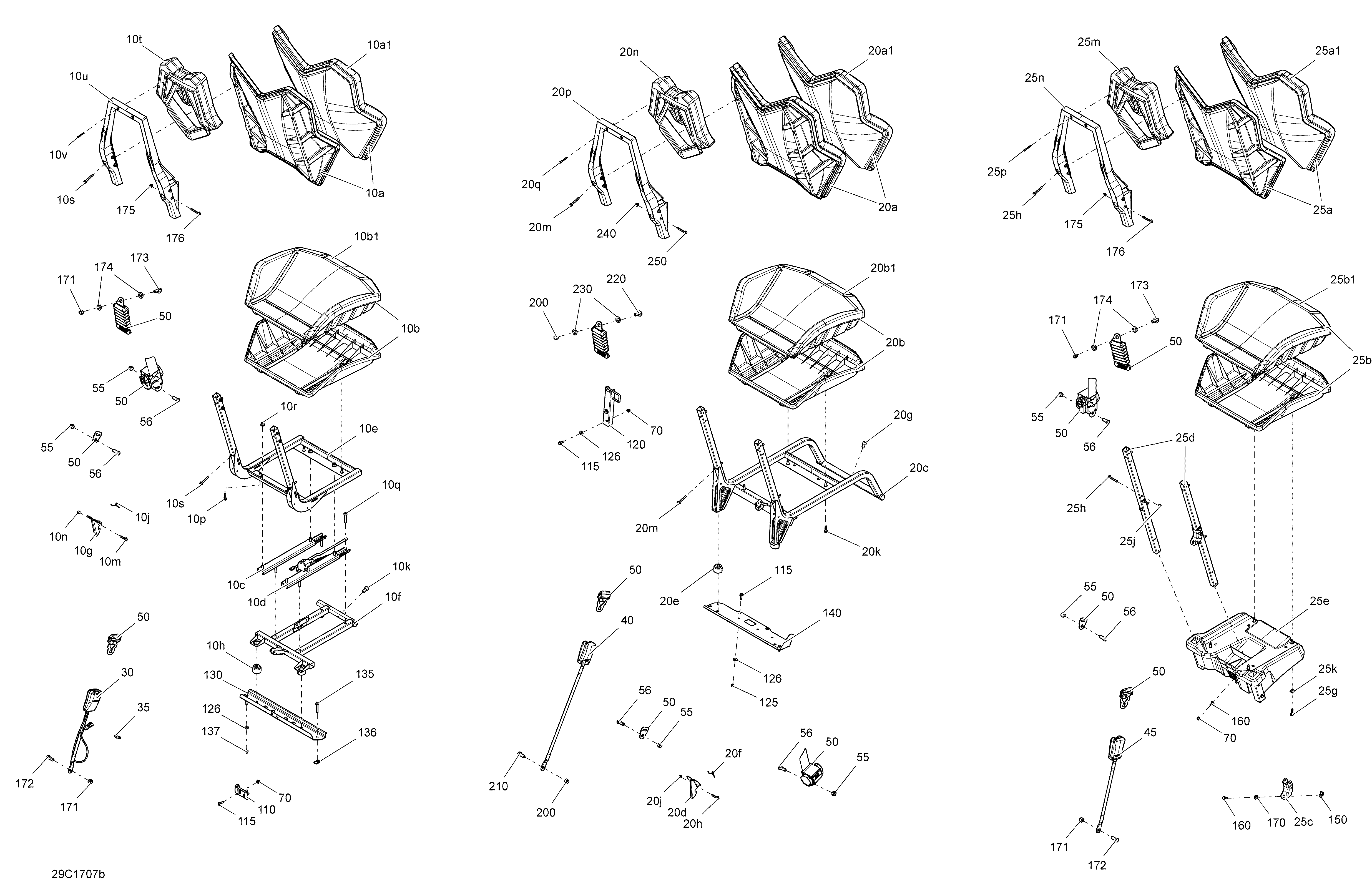

09- Seat - Turbo для BRP 2-Maverick MAX - 2017
-
№АртикулНазвание
-
10a708002246 Black Backrest Ass'y. Package XDS STD. Includes 10a to 10a1Black Backrest Ass'y. Package XDS STD. Includes 10a to 10a1
-
10a708002271 Gulfstream Blue Backrest Ass'y. Package XDS DPS. Includes 10a to 10a1Gulfstream Blue Backrest Ass'y. Package XDS DPS. Includes 10a to 10a1
-
10a708002265 Can-Am Red Backrest Ass'y. Package XDS XRS. Includes 10a to 10a1Can-Am Red Backrest Ass'y. Package XDS XRS. Includes 10a to 10a1
-
10a1708002248 Black Backrest Cover. Package XDS STDBlack Backrest Cover. Package XDS STD
-
10a1708002272 Gulfstream Blue Backrest Cover. Package XDS DPSGulfstream Blue Backrest Cover. Package XDS DPS
-
10a1708002266 Can-Am Red Backrest Cover. Package XDS XRSCan-Am Red Backrest Cover. Package XDS XRS
-
10b708002247 Black Cushion Ass'y. Package XDS STD. Includes 10b to 10b1Black Cushion Ass'y. Package XDS STD. Includes 10b to 10b1
-
10b708002273 Gulfstream Blue Cushion Ass'y. Package XDS DPS. Includes 10b to 10b1Gulfstream Blue Cushion Ass'y. Package XDS DPS. Includes 10b to 10b1
-
10b708002267 Can-Am Red Cushion Assembly. Package XDS XRS. Includes 10b to 10b1Can-Am Red Cushion Assembly. Package XDS XRS. Includes 10b to 10b1
-
10b1708002249 Black Cushion Cover. Package XDS STDBlack Cushion Cover. Package XDS STD
-
10b1708002274 Gulfstream Blue Seat Cover. Package XDS DPSGulfstream Blue Seat Cover. Package XDS DPS
-
10b1708002268 Can-Am Red Seat Cover. Package XDS XRSCan-Am Red Seat Cover. Package XDS XRS
-
10c708000848 LH RailLH Rail
-
10d708001739 RH RailRH Rail
-
10e708001356 Operator Seat FrameOperator Seat Frame
-
10f708001174 Seat MemberSeat Member
-
10g708001355 Seat LatchSeat Latch
-
10h708001671 Rubber BumperRubber Bumper
-
10j708000921 SpringSpring
-
10k205501644 Socket Screw M10 X 16Socket Screw M10 X 16
-
10m207563034 Hex. Flanged Screw M6 X 30, Scotch GripHex. Flanged Screw M6 X 30, Scotch Grip
-
10n232561600 Hex. Elastic Stop Nut M6Hex. Elastic Stop Nut M6
-
10p207562544 Hex. Flanged Screw M6 X 25, Scotch GripHex. Flanged Screw M6 X 25, Scotch Grip
-
10q205084044 Socket Head Screw M8 X 40Socket Head Screw M8 X 40
-
10r233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
10s250000672 Hex. Flange Screw M6Hex. Flange Screw M6
-
10t708001074 Head RestHead Rest
-
10u708001245 Seat SupportSeat Support
-
10v250000897 Hex. Flange Screw K50 X 40Hex. Flange Screw K50 X 40
-
20a708002246 Black Backrest Ass'y. Package XDS STD. Includes 20a to 20a1Black Backrest Ass'y. Package XDS STD. Includes 20a to 20a1
-
20a708002265 Can-Am Red Backrest Ass'y. Package XDS XRS. Includes 20a to 20a1Can-Am Red Backrest Ass'y. Package XDS XRS. Includes 20a to 20a1
-
20a708002271 Gulfstream Blue Backrest Ass'y. Package XDS DPS. Includes 20a to 20a1Gulfstream Blue Backrest Ass'y. Package XDS DPS. Includes 20a to 20a1
-
20a1708002248 Black Backrest Cover. Package XDS STDBlack Backrest Cover. Package XDS STD
-
20a1708002266 Can-Am Red Backrest Cover. Package XDS XRSCan-Am Red Backrest Cover. Package XDS XRS
-
20a1708002272 Gulfstream Blue Backrest Cover. Package XDS DPSGulfstream Blue Backrest Cover. Package XDS DPS
-
20b708002247 Black Cushion Ass'y. Package XDS STD. Includes 20b to 20b1Black Cushion Ass'y. Package XDS STD. Includes 20b to 20b1
-
20b708002267 Can-Am Red Cushion Assembly. Package XDS XRS. Includes 20b to 20b1Can-Am Red Cushion Assembly. Package XDS XRS. Includes 20b to 20b1
-
20b708002273 Gulfstream Blue Cushion Ass'y. Package XDS DPS. Includes 20b to 20b1Gulfstream Blue Cushion Ass'y. Package XDS DPS. Includes 20b to 20b1
-
20b1708002249 Black Cushion Cover. Package XDS STDBlack Cushion Cover. Package XDS STD
-
20b1708002268 Can-Am Red Seat Cover. Package XDS XRSCan-Am Red Seat Cover. Package XDS XRS
-
20b1708002274 Gulfstream Blue Seat Cover. Package XDS DPSGulfstream Blue Seat Cover. Package XDS DPS
-
20c708001357 Passenger Seat FramePassenger Seat Frame
-
20d708001355 Seat LatchSeat Latch
-
20e708001671 Rubber BumperRubber Bumper
-
20f708000921 SpringSpring
-
20g205501644 Socket Screw M10 X 16Socket Screw M10 X 16
-
20h207563034 Hex. Flanged Screw M6 X 30, Scotch GripHex. Flanged Screw M6 X 30, Scotch Grip
-
20j232561600 Hex. Elastic Stop Nut M6Hex. Elastic Stop Nut M6
-
20k207562544 Hex. Flanged Screw M6 X 25, Scotch GripHex. Flanged Screw M6 X 25, Scotch Grip
-
20m250000672 Hex. Flange Screw M6Hex. Flange Screw M6
-
20n708001074 Head RestHead Rest
-
20p708001245 Seat SupportSeat Support
-
20q250000897 Hex. Flange Screw K50 X 40Hex. Flange Screw K50 X 40
-
25a708002246 Black Backrest Ass'y. Package XDS STD. Includes 25a to 25a1Black Backrest Ass'y. Package XDS STD. Includes 25a to 25a1
-
25a708002271 Gulfstream Blue Backrest Ass'y. Package XDS DPS. Includes 25a to 25a1Gulfstream Blue Backrest Ass'y. Package XDS DPS. Includes 25a to 25a1
-
25a708002265 Can-Am Red Backrest Ass'y. Package XDS XRS. Includes 25a to 25a1Can-Am Red Backrest Ass'y. Package XDS XRS. Includes 25a to 25a1
-
25a1708002248 Black Backrest Cover. Package XDS STDBlack Backrest Cover. Package XDS STD
-
25a1708002272 Gulfstream Blue Backrest Cover. Package XDS DPSGulfstream Blue Backrest Cover. Package XDS DPS
-
25a1708002266 Can-Am Red Backrest Cover. Package XDS XRSCan-Am Red Backrest Cover. Package XDS XRS
-
25b708002247 Black Cushion Ass'y. Package XDS STD. Includes 25b to 25b1Black Cushion Ass'y. Package XDS STD. Includes 25b to 25b1
-
25b708002273 Gulfstream Blue Cushion Ass'y. Package XDS DPS. Includes 25b to 25b1Gulfstream Blue Cushion Ass'y. Package XDS DPS. Includes 25b to 25b1
-
25b708002267 Can-Am Red Cushion Assembly. Package XDS XRS. Includes 25b to 25b1Can-Am Red Cushion Assembly. Package XDS XRS. Includes 25b to 25b1
-
25b1708002249 Black Cushion Cover. Package XDS STDBlack Cushion Cover. Package XDS STD
-
25b1708002274 Gulfstream Blue Seat Cover. Package XDS DPSGulfstream Blue Seat Cover. Package XDS DPS
-
25b1708002268 Can-Am Red Seat Cover. Package XDS XRSCan-Am Red Seat Cover. Package XDS XRS
-
25c708001474 Rear AnchorRear Anchor
-
25d708001196 Lateral Tube. Package XDS STDLateral Tube. Package XDS STD
-
25d708001476 Side Tube. Package XDS DPSSide Tube. Package XDS DPS
-
25d708001476 Side Tube. Package XDS XRSSide Tube. Package XDS XRS
-
25e708001198 Seat SupportSeat Support
-
25g207562544 Hex. Flanged Screw M6 X 25, Scotch GripHex. Flanged Screw M6 X 25, Scotch Grip
-
25h250000672 Hex. Flange Screw M6Hex. Flange Screw M6
-
25j233161464 Hex. Elastic Flange Nut M6Hex. Elastic Flange Nut M6
-
25k234062670 Flat Washer, StainlessFlat Washer, Stainless
-
25m708001074 Head RestHead Rest
-
25n708001245 Seat SupportSeat Support
-
25n708001245 Seat Support. Package XDS STDSeat Support. Package XDS STD
-
25p250000897 Hex. Flange Screw K50 X 40Hex. Flange Screw K50 X 40
-
30708002061 Driver Buckle SideDriver Buckle Side
-
35293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
40708002064 Passenger Buckle SidePassenger Buckle Side
-
45708002063 Rear Passenger Buckle SideRear Passenger Buckle Side
-
50708001854 Safety BeltSafety Belt
-
55250100135 Nylon Insert Hex. Lock Nut 7/16-20Nylon Insert Hex. Lock Nut 7/16-20
-
56250000521 Hex. Cap Screw 7/16'' X 1''Hex. Cap Screw 7/16'' X 1''
-
70293450274 InsertInsert
-
110708001212 AnchorAnchor
-
115207562054 Flanged Hex. Screw S.GRIP M6 X 20Flanged Hex. Screw S.GRIP M6 X 20
-
120708001213 AnchorAnchor
-
125233061414 Hex. Flanged Nut M6Hex. Flanged Nut M6
-
126234062670 Flat Washer, StainlessFlat Washer, Stainless
-
130708001214 Seat SupportSeat Support
-
135250000213 Hex. Flanged Screw M6 X 1.0 X 45Hex. Flanged Screw M6 X 1.0 X 45
-
136250100171 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
137233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
140708001804 SupportSupport
-
150250100171 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
160207562054 Flanged Hex. Screw S.GRIP M6 X 20Flanged Hex. Screw S.GRIP M6 X 20
-
170234281474 Conical Spring Washer M8Conical Spring Washer M8
-
171250100135 Nylon Insert Hex. Lock Nut 7/16-20. North AmericaNylon Insert Hex. Lock Nut 7/16-20. North America
-
172250000521 Hex. Cap Screw 7/16'' X 1''. North AmericaHex. Cap Screw 7/16'' X 1''. North America
-
173708000890 Safety Belt Screw. North AmericaSafety Belt Screw. North America
-
174708000891 Position Washer. North AmericaPosition Washer. North America
-
175233161464 Hex. Elastic Flange Nut M6. North AmericaHex. Elastic Flange Nut M6. North America
-
176250000672 Hex. Flange Screw M6. North AmericaHex. Flange Screw M6. North America
-
200250100135 Nylon Insert Hex. Lock Nut 7/16-20Nylon Insert Hex. Lock Nut 7/16-20
-
210250000521 Hex. Cap Screw 7/16'' X 1''Hex. Cap Screw 7/16'' X 1''
-
220708000890 Safety Belt ScrewSafety Belt Screw
-
230708000891 Position WasherPosition Washer
-
240233161464 Hex. Elastic Flange Nut M6Hex. Elastic Flange Nut M6
-
250250000672 Hex. Flange Screw M6Hex. Flange Screw M6
