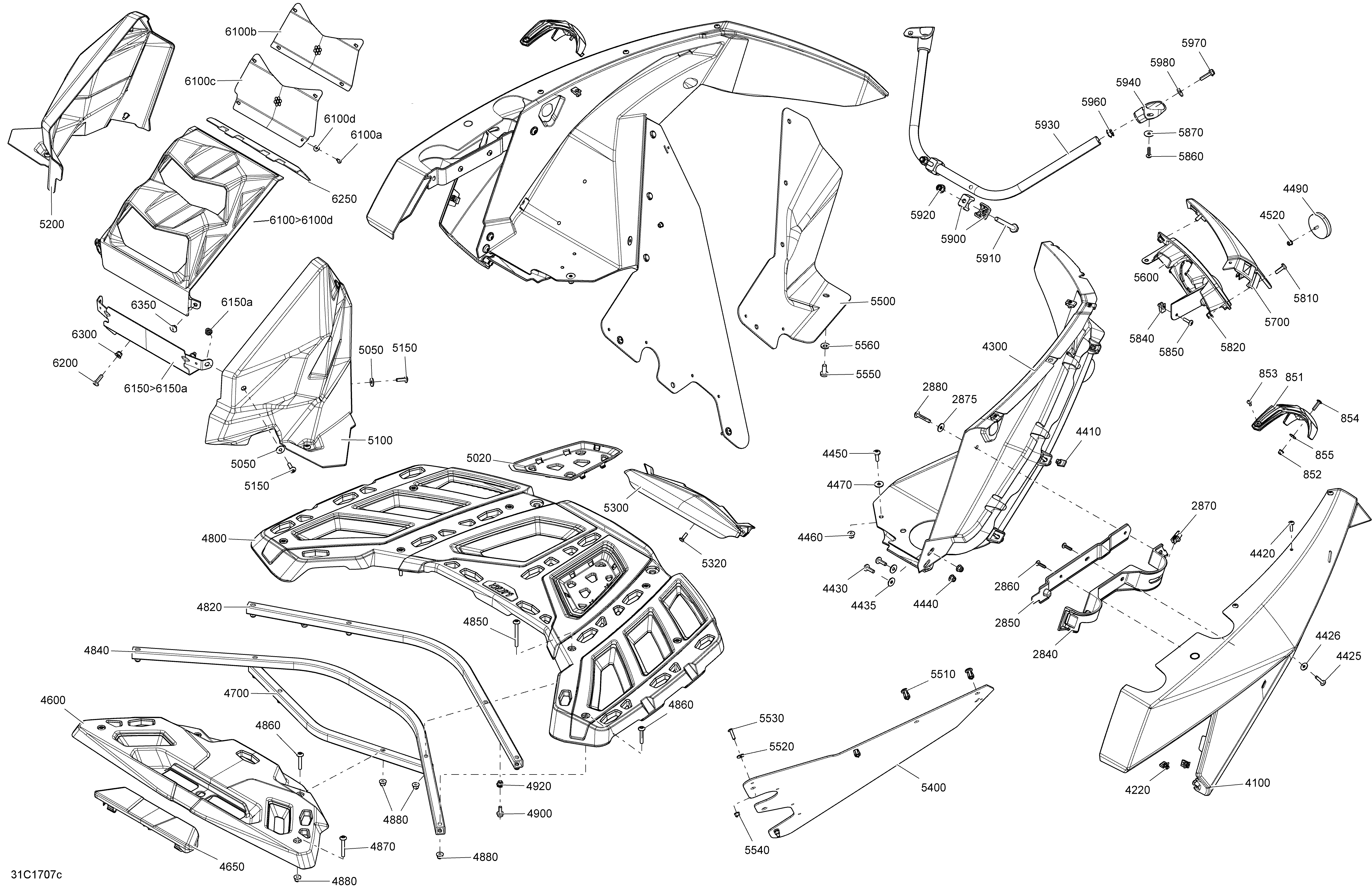

09- Body And Accessories - Rear Section All Models для BRP 2-Maverick MAX - 2017
-
№АртикулНазвание
-
851707001943 Gulfstream Blue Cap. Package XMRGulfstream Blue Cap. Package XMR
-
852233251494 Elastic Flanged Nut M5. Package XMRElastic Flanged Nut M5. Package XMR
-
853250000577 Torx Truss K40 X 12. Package XMRTorx Truss K40 X 12. Package XMR
-
854250000792 Torx Screw M5 X 20. Package XMRTorx Screw M5 X 20. Package XMR
-
855234052600 Flat Washer 5 mm, Stainless. Package XMRFlat Washer 5 mm, Stainless. Package XMR
-
2840705007918 LH Rear Fender SupportLH Rear Fender Support
-
2840705007919 RH Rear Fender SupportRH Rear Fender Support
-
2850705007917 Support PlateSupport Plate
-
2860250000760 Torx Screw Truss Head PT.K50 X 20Torx Screw Truss Head PT.K50 X 20
-
2870250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
2875234062670 Flat Washer, StainlessFlat Washer, Stainless
-
2880250000646 Torx Screw M6 X 35Torx Screw M6 X 35
-
4100705008540 Black Carbon Fiber LH Rear Fender. Package XDS XRSBlack Carbon Fiber LH Rear Fender. Package XDS XRS
-
4100705008541 Black Carbon Fiber RH Rear Fender. Package XDS XRSBlack Carbon Fiber RH Rear Fender. Package XDS XRS
-
4100705009729 Hyper Silver LH Rear Fender. Package XDS DPSHyper Silver LH Rear Fender. Package XDS DPS
-
4100705009730 Hyper Silver RH Rear Fender. Package XDS DPSHyper Silver RH Rear Fender. Package XDS DPS
-
4100705008949 Quarry Gray LH Rear FenderQuarry Gray LH Rear Fender
-
4100705008951 Quarry Gray RH Rear FenderQuarry Gray RH Rear Fender
-
4100705009727 Timeless Black LH Rear Fender. Package XMRTimeless Black LH Rear Fender. Package XMR
-
4100705009728 Timeless Black RH Rear Fender. Package XMRTimeless Black RH Rear Fender. Package XMR
-
4220517302785 ClipClip
-
4300705009445 LH Inner Fender. Engine 1000TEFILH Inner Fender. Engine 1000TEFI
-
4300705009548 LH Inner Fender. Engine 1000REFILH Inner Fender. Engine 1000REFI
-
4300705009549 RH Inner FenderRH Inner Fender
-
4410250000079 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
4420250000724 Torx Screw M5 X 20Torx Screw M5 X 20
-
4425250000762 Torx Screw M5 X 25Torx Screw M5 X 25
-
4426250200025 Washer M5Washer M5
-
4430250000712 Torx Screw M6 X 20Torx Screw M6 X 20
-
4435234062670 Flat Washer, StainlessFlat Washer, Stainless
-
4440233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
4450250000712 Torx Screw M6 X 20Torx Screw M6 X 20
-
4460233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
4470234062670 Flat Washer, StainlessFlat Washer, Stainless
-
4490705011221 Red ReflectorRed Reflector
-
4520233251494 Elastic Flanged Nut M5Elastic Flanged Nut M5
-
4600705006128 Bagage Central Rack. Engine 1000REFIBagage Central Rack. Engine 1000REFI
-
4650705006132 Central Bagage Rack Cap. Engine 1000REFICentral Bagage Rack Cap. Engine 1000REFI
-
4700705006279 Bagage Rack Tube. Engine 1000REFIBagage Rack Tube. Engine 1000REFI
-
4800715002367 Rear Rack KITRear Rack KIT
-
4820705005469 TubeTube
-
4840705005470 TubeTube
-
4850250000648 Torx Screw M6 X 60. Engine 1000REFITorx Screw M6 X 60. Engine 1000REFI
-
4860250000646 Torx Screw M6 X 35Torx Screw M6 X 35
-
4870250000647 Torx Screw M6 X 45. Engine 1000REFITorx Screw M6 X 45. Engine 1000REFI
-
4880233261434 Flanged Elastic Nut M6Flanged Elastic Nut M6
-
4900207561634 Hex. Flanged Screw M6 X 16, Scotch GripHex. Flanged Screw M6 X 16, Scotch Grip
-
4920293450274 InsertInsert
-
5020705006713 LH Bagage Rack CoverLH Bagage Rack Cover
-
5020705006714 RH Bagage Rack CoverRH Bagage Rack Cover
-
5050234062670 Flat Washer, Stainless. Engine 1000TEFIFlat Washer, Stainless. Engine 1000TEFI
-
5100705009046 LH Intercooler Cover. Engine 1000TEFILH Intercooler Cover. Engine 1000TEFI
-
5150250000722 Torx Screw M6 X 20. Engine 1000TEFITorx Screw M6 X 20. Engine 1000TEFI
-
5200705009047 RH Intercooler Cover. Engine 1000TEFIRH Intercooler Cover. Engine 1000TEFI
-
5300705005994 LOGO SupportLOGO Support
-
5320250000720 Torx Screw K50 X 16Torx Screw K50 X 16
-
5400705007828 Deflector. Engine 1000REFIDeflector. Engine 1000REFI
-
5500705009143 Deflector. Engine 1000TEFIDeflector. Engine 1000TEFI
-
5510293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
5520250200025 Washer M5Washer M5
-
5530250000724 Torx Screw M5 X 20Torx Screw M5 X 20
-
5540233251494 Elastic Flanged Nut M5Elastic Flanged Nut M5
-
5550236282054 Hex. Screw M8 X 20. Engine 1000TEFIHex. Screw M8 X 20. Engine 1000TEFI
-
5560234281474 Conical Spring Washer M8. Engine 1000TEFIConical Spring Washer M8. Engine 1000TEFI
-
5600705004731 LH Rear FaciaLH Rear Facia
-
5600705004732 RH Rear FaciaRH Rear Facia
-
5700705009733 Hyper Silver LH Trim. Package XDS DPSHyper Silver LH Trim. Package XDS DPS
-
5700705009734 Hyper Silver RH Trim. Package XDS DPSHyper Silver RH Trim. Package XDS DPS
-
5700705008542 Black Carbon Fiber LH Trim. Package XDS XRSBlack Carbon Fiber LH Trim. Package XDS XRS
-
5700705008543 Black Carbon Fiber RH Trim. Package XDS XRSBlack Carbon Fiber RH Trim. Package XDS XRS
-
5700705009731 Timeless Black LH Trim. Package XMRTimeless Black LH Trim. Package XMR
-
5700705009732 Timeless Black RH Trim. Package XMRTimeless Black RH Trim. Package XMR
-
5700705008952 Quarry Gray LH TrimQuarry Gray LH Trim
-
5700705008953 Quarry Gray RH TrimQuarry Gray RH Trim
-
5810250000712 Torx Screw M6 X 20Torx Screw M6 X 20
-
5820233261434 Flanged Elastic Nut M6Flanged Elastic Nut M6
-
5840250000079 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
5850250000724 Torx Screw M5 X 20Torx Screw M5 X 20
-
5860250000760 Torx Screw Truss Head PT.K50 X 20Torx Screw Truss Head PT.K50 X 20
-
5870224060201 Flat WasherFlat Washer
-
5900705007044 Rear Support Facia ClipRear Support Facia Clip
-
5910207687044 Hex. Flanged Screw M8 X 70Hex. Flanged Screw M8 X 70
-
5920233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
5930705007299 Body TubeBody Tube
-
5940705007045 LH Rear Facia SupportLH Rear Facia Support
-
5940705007046 RH Rear Facia SupportRH Rear Facia Support
-
5960705007047 Tube ConnectorTube Connector
-
5970207662544 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
5980224061201 Flat WasherFlat Washer
-
6100>6100d705204547 Scoop Ass'y. Engine 1000TEFI. Includes 6100 to 6100dScoop Ass'y. Engine 1000TEFI. Includes 6100 to 6100d
-
6100a241140060 Screw K40 X 10. Engine 1000TEFIScrew K40 X 10. Engine 1000TEFI
-
6100b705009260 Upper Grill. Engine 1000TEFIUpper Grill. Engine 1000TEFI
-
6100c705009261 Lower Grill. Engine 1000TEFILower Grill. Engine 1000TEFI
-
6100d391301000 Washer. Engine 1000TEFIWasher. Engine 1000TEFI
-
6150>6150a705009262 Air Duct Support. Engine 1000TEFI. Includes 6150 to 6150 aAir Duct Support. Engine 1000TEFI. Includes 6150 to 6150 a
-
6150a293450274 Insert. Engine 1000TEFIInsert. Engine 1000TEFI
-
6200250000712 Torx Screw M6 X 20. Engine 1000TEFITorx Screw M6 X 20. Engine 1000TEFI
-
6250705009343 Rear Support. Engine 1000TEFIRear Support. Engine 1000TEFI
-
6300233261434 Flanged Elastic Nut M6. Engine 1000TEFIFlanged Elastic Nut M6. Engine 1000TEFI
-
6350293150103 Black Pop Rivet 3/16''. Engine 1000TEFIBlack Pop Rivet 3/16''. Engine 1000TEFI
