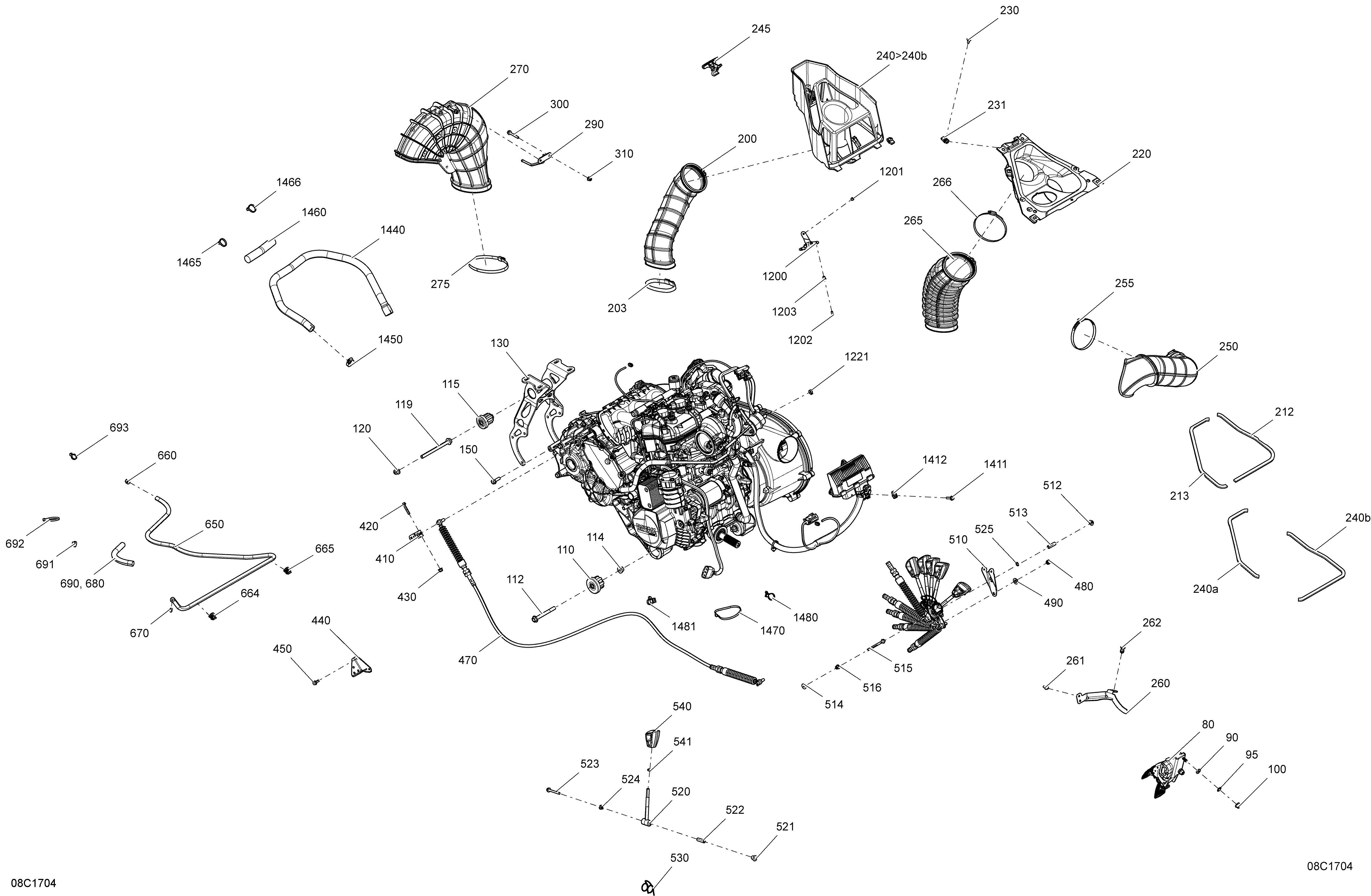

01- Engine And Engine Support для BRP 4-Maverick X3 MAX - 2017
-
№АртикулНазвание
-
80707001803 Pedal ThrottlePedal Throttle
-
90707001990 BushingBushing
-
95250100031 Push NutPush Nut
-
100233081416 Hex. Flanged Nut M8Hex. Flanged Nut M8
-
110707001807 Anti-Vibration MountAnti-Vibration Mount
-
112207609046 Screw-Hex Flange M10 X 90Screw-Hex Flange M10 X 90
-
114233201436 Flanged Elastic Nut M10Flanged Elastic Nut M10
-
115707001808 Anti-Vibration MountAnti-Vibration Mount
-
119230602546 Hex. Flanged Screw M10 X 125Hex. Flanged Screw M10 X 125
-
120233201436 Flanged Elastic Nut M10Flanged Elastic Nut M10
-
130707001881 Rear Engine SupportRear Engine Support
-
150207582544 Hex. Flanged Screw M8 X 25, Scotch GripHex. Flanged Screw M8 X 25, Scotch Grip
-
200706600077 Front Inlet DuctFront Inlet Duct
-
203514052924 Norma ClampNorma Clamp
-
212706600137 SealSeal
-
213706600138 SealSeal
-
220706600129 AdaptorAdaptor
-
230250000721 Torx ScrewTorx Screw
-
231250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
240>240b706600148 CVT Filter. Includes 240 to 240bCVT Filter. Includes 240 to 240b
-
240a706600136 SealSeal
-
240b706600139 SealSeal
-
245708000909 LatchLatch
-
250706600078 Front Outlet DuctFront Outlet Duct
-
255514052983 Norma Gear ClampNorma Gear Clamp
-
260706600147 Hose SupportHose Support
-
261207561244 Hex. Flanged Screw M6 X 12, Scotch GripHex. Flanged Screw M6 X 12, Scotch Grip
-
262293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
265706600080 Rear Inlet DuctRear Inlet Duct
-
266514052983 Norma Gear ClampNorma Gear Clamp
-
270706600081 Rear Outlet DuctRear Outlet Duct
-
275514052861 Gear Clamp (Norma)Gear Clamp (Norma)
-
290707002056 Outlet SupportOutlet Support
-
300207664044 Hex. Flanged Screw M6 X 40Hex. Flanged Screw M6 X 40
-
310233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
410707000911 LeverLever
-
420207663544 Hex. Flanged Screw M6 X 35Hex. Flanged Screw M6 X 35
-
430233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
440707001614 Cable SupportCable Support
-
450207561644 Hex. Flanged Screw M6 X 16, Scotch GripHex. Flanged Screw M6 X 16, Scotch Grip
-
470707002037 Shifting CableShifting Cable
-
480232581414 Hex. Elastic Stop Nut M8Hex. Elastic Stop Nut M8
-
490234001410 Flat Washer 10 mmFlat Washer 10 mm
-
510707000828 Lower Lever ArmLower Lever Arm
-
512707000847 Flanged BushingFlanged Bushing
-
513707001376 BushingBushing
-
514234062410 Flat Washer 6 mmFlat Washer 6 mm
-
515207667056 Hex. Flange Screw M6 X 70Hex. Flange Screw M6 X 70
-
516233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
520707000711 Upper Lever ArmUpper Lever Arm
-
521707000869 Flanged BushingFlanged Bushing
-
522707001376 BushingBushing
-
523207665044 Hex. Flanged Screw M6 X 50Hex. Flanged Screw M6 X 50
-
524233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
525504152282 CirclipCirclip
-
530707000750 Lever Arm SpringLever Arm Spring
-
540707000965 Lever ButtonLever Button
-
541232180491 Hex. Jam Nut M8Hex. Jam Nut M8
-
650709000168 Hose 1/4Hose 1/4
-
660293650042 Oetiker ClampOetiker Clamp
-
664293750058 Locking Tie RapLocking Tie Rap
-
665293750058 Locking Tie RapLocking Tie Rap
-
670293710039 Straight FittingStraight Fitting
-
680415080200 Hose, PolyurethaneHose, Polyurethane
-
690710004711 Tubing 13 mmTubing 13 mm
-
691414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
692414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
693414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
1200707001981 Valve SupportValve Support
-
1201390402000 Pop Rivet 3/16''Pop Rivet 3/16''
-
1202207551634 Hex. Flanged Screw, Scotch GripHex. Flanged Screw, Scotch Grip
-
1203293450268 InsertInsert
-
1221293650262 Oeticker ClampOeticker Clamp
-
1411207662554 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
1412250100113 Panel Nut, M6 X 1.0Panel Nut, M6 X 1.0
-
1440707001931 Hose VentHose Vent
-
1450293650051 Tridon Gear ClampTridon Gear Clamp
-
1460710005587 Tubing 22 mmTubing 22 mm
-
1465414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
1466414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
1470293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
1480710003168 Christmas Tree Tie-Rap 200 mmChristmas Tree Tie-Rap 200 mm
-
1481710005037 ClipClip
