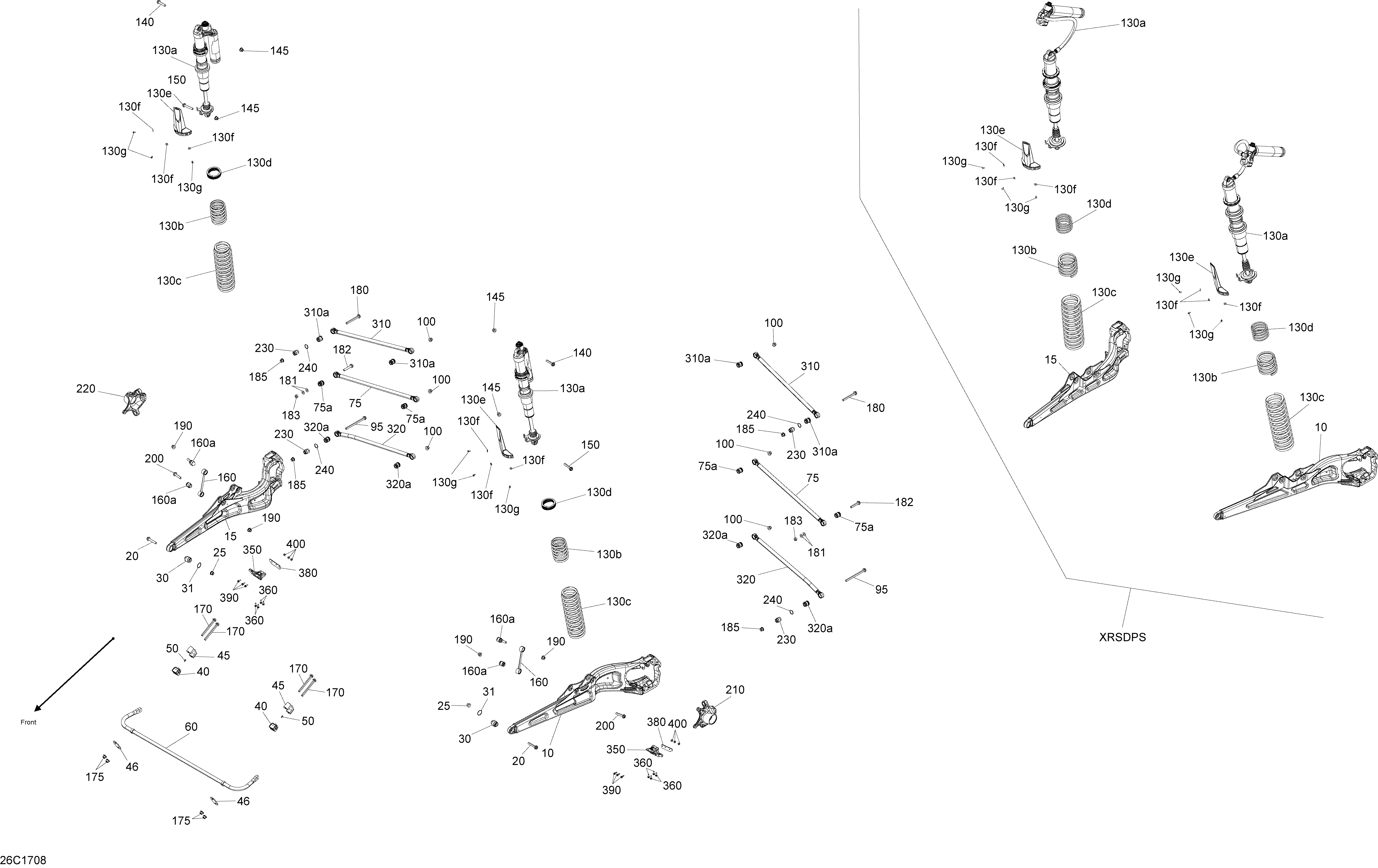

08- Rear Suspension для BRP 4-Maverick X3 MAX - 2017
-
№АртикулНазвание
-
10706002567 Black LH Rear Arm. Except XRSDPS PackageBlack LH Rear Arm. Except XRSDPS Package
-
10706002569 Red LH Rear Arm. XRSDPS Package, Liquid GoldRed LH Rear Arm. XRSDPS Package, Liquid Gold
-
10706002694 Black LH Rear Arm. XRSDPS Package, Timeless Black MetallicBlack LH Rear Arm. XRSDPS Package, Timeless Black Metallic
-
15706002568 Black RH Rear Arm. Except XRSDPS PackageBlack RH Rear Arm. Except XRSDPS Package
-
15706002570 Red RH Rear Arm. XRSDPS Package, Liquid GoldRed RH Rear Arm. XRSDPS Package, Liquid Gold
-
15706002695 Black RH Rear Arm. XRSDPS Package, Timeless Black MetallicBlack RH Rear Arm. XRSDPS Package, Timeless Black Metallic
-
20250000858 Hexagonal Flanged Screw M12 X 70Hexagonal Flanged Screw M12 X 70
-
25233221466 Elastic Flange Nut M12Elastic Flange Nut M12
-
30706001373 Radial JointRadial Joint
-
31293370093 Retaining RingRetaining Ring
-
40706002302 CushionCushion
-
45706002303 ClampClamp
-
46706002357 Support PlateSupport Plate
-
50408200700 Grease FittingGrease Fitting
-
60706002100 Stabilizer Bar Ass'yStabilizer Bar Ass'y
-
75>75a706002099 Central Control Link. Except XRSDPS Package. Includes 75 to 75aCentral Control Link. Except XRSDPS Package. Includes 75 to 75a
-
75a706002135 Radial JointRadial Joint
-
75>75a706002307 Central Control Link. XRSDPS Package. Includes 75 to 75aCentral Control Link. XRSDPS Package. Includes 75 to 75a
-
75a706002135 Radial JointRadial Joint
-
95250000862 Screw Flange M12 X 175Screw Flange M12 X 175
-
100233221466 Elastic Flange Nut M12Elastic Flange Nut M12
-
130a706002660 Shock LH. XDSDPS PackageShock LH. XDSDPS Package
-
130a706002666 Rear Shock LH. Standard PackageRear Shock LH. Standard Package
-
130a706002671 Shock. XRSDPS Package, Liquid GoldShock. XRSDPS Package, Liquid Gold
-
130a706002672 Shock. XRSDPS Package, Timeless Black MetallicShock. XRSDPS Package, Timeless Black Metallic
-
130a706002663 Shock RH. XDSDPS PackageShock RH. XDSDPS Package
-
130a706002667 Rear Shock RH. Standard PackageRear Shock RH. Standard Package
-
130b706002662 Deep Black Rear Spring. Except XRSDPS PackageDeep Black Rear Spring. Except XRSDPS Package
-
130b706002675 Spring. XRSDPS Package, Liquid GoldSpring. XRSDPS Package, Liquid Gold
-
130b706002669 Deep Black Rear Spring. XRSDPS Package, Timeless Black MetallicDeep Black Rear Spring. XRSDPS Package, Timeless Black Metallic
-
130c706002661 Deep Black Rear Spring. Except XRSDPS PackageDeep Black Rear Spring. Except XRSDPS Package
-
130c706002674 Spring. XRSDPS Package, Liquid GoldSpring. XRSDPS Package, Liquid Gold
-
130c706002668 Deep Black Rear Spring. XRSDPS Package, Timeless Black MetallicDeep Black Rear Spring. XRSDPS Package, Timeless Black Metallic
-
130e706202215 ProtectorProtector
-
130f250200025 Washer M5Washer M5
-
130g210251150 Hex. Flanged Screw M5 X 11Hex. Flanged Screw M5 X 11
-
140250000857 Screw Flange M12 X 60Screw Flange M12 X 60
-
145233221466 Elastic Flange Nut M12Elastic Flange Nut M12
-
150250000857 Screw Flange M12 X 60. Except XRSDPS PackageScrew Flange M12 X 60. Except XRSDPS Package
-
150250000858 Hexagonal Flanged Screw M12 X 70. XRSDPS PackageHexagonal Flanged Screw M12 X 70. XRSDPS Package
-
160>160a706002304 Biellette Barre Stab. Includes 160 to 160aBiellette Barre Stab. Includes 160 to 160a
-
160a706002135 Radial JointRadial Joint
-
170250000892 Screw Flange M12 X 135Screw Flange M12 X 135
-
175233221466 Elastic Flange Nut M12Elastic Flange Nut M12
-
180250000860 Screw Flange M12 X 115Screw Flange M12 X 115
-
181250200086 Flat WasherFlat Washer
-
182250000858 Hexagonal Flanged Screw M12 X 70Hexagonal Flanged Screw M12 X 70
-
183232521416 Elastic Flanged Stop Nut M12Elastic Flanged Stop Nut M12
-
185233221466 Elastic Flange Nut M12Elastic Flange Nut M12
-
190233221466 Elastic Flange Nut M12Elastic Flange Nut M12
-
200250000857 Screw Flange M12 X 60Screw Flange M12 X 60
-
210706001960 LH KhuckleLH Khuckle
-
220706001961 RH KhuckleRH Khuckle
-
230706002317 Radial JointRadial Joint
-
240293370118 Retaining RingRetaining Ring
-
310>310a706002136 Upper Control Link. Except XRSDPS Package. Includes 310 to 310aUpper Control Link. Except XRSDPS Package. Includes 310 to 310a
-
310a706002135 Radial JointRadial Joint
-
310>310a706002751 Upper Control Link. XRSDPS Package. Includes 310 to 310aUpper Control Link. XRSDPS Package. Includes 310 to 310a
-
310a706002135 Radial JointRadial Joint
-
320>320a706002139 Lower Control Link. Except XRSDPS Package. Includes 320 to 320aLower Control Link. Except XRSDPS Package. Includes 320 to 320a
-
320a706002135 Radial JointRadial Joint
-
320>320a706002311 Lower Control Link. XRSDPS Package. Includes 320 to 320aLower Control Link. XRSDPS Package. Includes 320 to 320a
-
320a706002135 Radial JointRadial Joint
-
350706002905 DeflectorDeflector
-
360207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
380706002851 Wear PlateWear Plate
-
390207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
400233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
