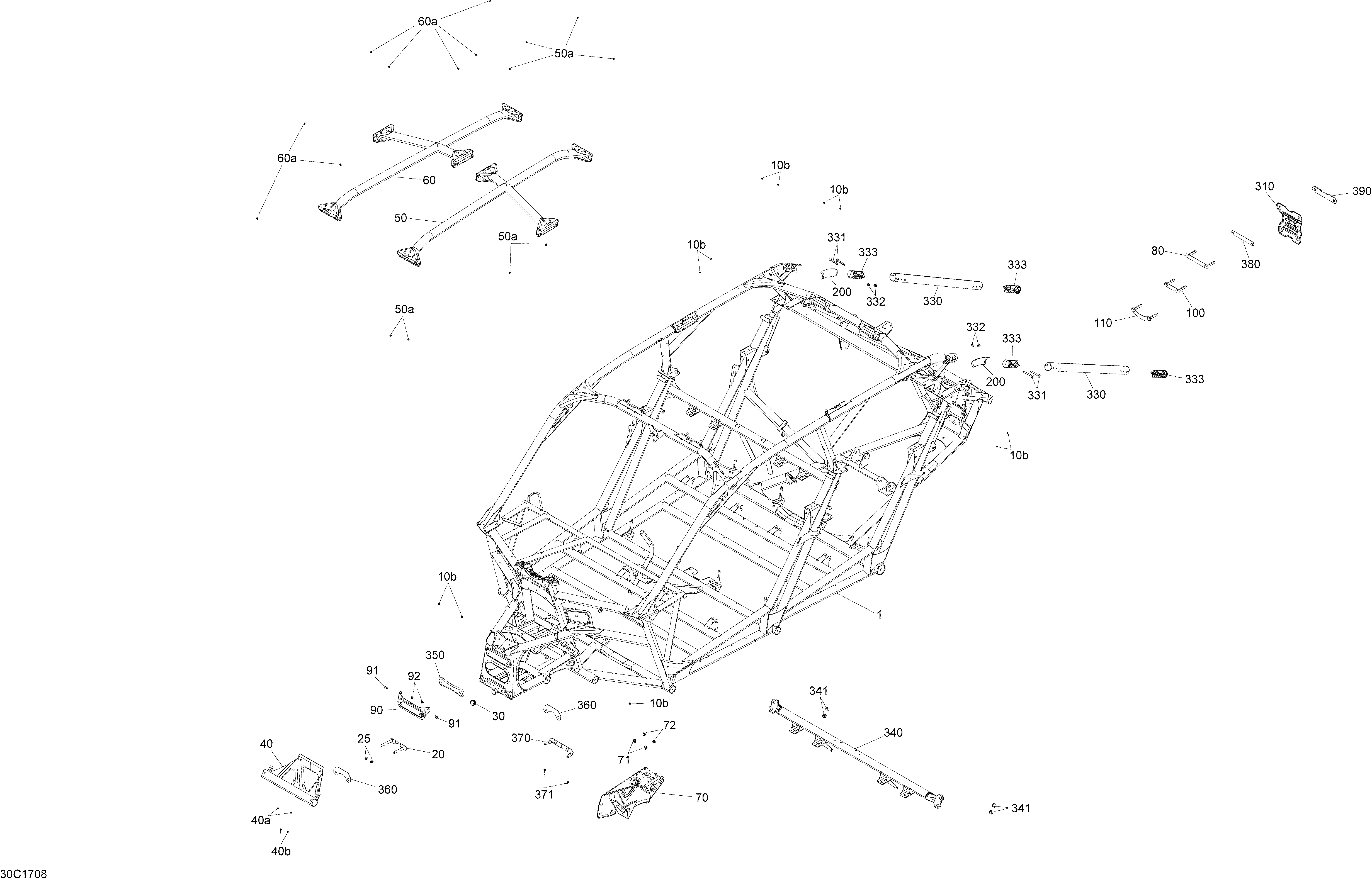

09- Frame для BRP 4-Maverick X3 MAX - 2017
-
№АртикулНазвание
-
1>1a715004376 Red Frame Max. XRSDPS Package, Liquid GoldRed Frame Max. XRSDPS Package, Liquid Gold
-
1>1a715004377 Black Frame Max. Except XRSDPS Package, Liquid GoldBlack Frame Max. Except XRSDPS Package, Liquid Gold
-
1a715004370 Red Max Cage Kit. XRSDPS Package, Liquid Gold Upper section OnlyRed Max Cage Kit. XRSDPS Package, Liquid Gold Upper section Only
-
1a715004371 Black Max Cage Kit. Except XRSDPS Package, Liquid Gold. Upper Section OnlyBlack Max Cage Kit. Except XRSDPS Package, Liquid Gold. Upper Section Only
-
10b390402000 Pop Rivet 3/16''Pop Rivet 3/16''
-
20705205897 Front PlateFront Plate
-
25207561044 Flanged Screw M6 X 10, Scotch GripFlanged Screw M6 X 10, Scotch Grip
-
30706200308 Plug 1-1/4''Plug 1-1/4''
-
40>40b705205746 Black Front Bumper. Except XRSDPS Package, Liquid Gold. Includes 40 to 40bBlack Front Bumper. Except XRSDPS Package, Liquid Gold. Includes 40 to 40b
-
40>40b705205747 Red Front Bumper. XRSDPS Package, Liquid Gold. Includes 40 to 40bRed Front Bumper. XRSDPS Package, Liquid Gold. Includes 40 to 40b
-
40a390402000 Pop Rivet 3/16''Pop Rivet 3/16''
-
40b390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
50>50a705206251 Left Painted Added Cage. Except XRSDPS Package, Liquid Gold. Includes 50 to 50aLeft Painted Added Cage. Except XRSDPS Package, Liquid Gold. Includes 50 to 50a
-
50>50a705206439 Left Painted Added Cage. XRSDPS Package, Liquid Gold. Includes 50 to 50aLeft Painted Added Cage. XRSDPS Package, Liquid Gold. Includes 50 to 50a
-
50a390402000 Pop Rivet 3/16''Pop Rivet 3/16''
-
60>60a705206410 Right Painted Added Cage. Except XRSDPS Package, Liquid Gold. Includes 60 to 60aRight Painted Added Cage. Except XRSDPS Package, Liquid Gold. Includes 60 to 60a
-
60>60a705206440 Right Painted Added Cage. XRSDPS Package, Liquid Gold. Includes 60 to 60aRight Painted Added Cage. XRSDPS Package, Liquid Gold. Includes 60 to 60a
-
60a390402000 Pop Rivet 3/16''Pop Rivet 3/16''
-
70705206924 PlaquePlaque
-
71207581244 Hex. Flanged Screw M8 X 12, Scotch GripHex. Flanged Screw M8 X 12, Scotch Grip
-
72233281416 Hex. Elastic Flanged Nut M8Hex. Elastic Flanged Nut M8
-
80705206066 Rear Upper PlateRear Upper Plate
-
90705205564 Stifner PlateStifner Plate
-
91207661654 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
92233261494 Hex. Elastic Flanged Nut M6Hex. Elastic Flanged Nut M6
-
100705206070 Rear Mid PlateRear Mid Plate
-
110705206073 Rear Lower PlateRear Lower Plate
-
200705205926 Black LH Link Plate. Except XRSDPS Package, Liquid GoldBlack LH Link Plate. Except XRSDPS Package, Liquid Gold
-
200705205929 Red LH Link Plate. XRSDPS Package, Liquid GoldRed LH Link Plate. XRSDPS Package, Liquid Gold
-
310705205750 Rear PlateRear Plate
-
330705205751 Black- Rear Mount. Except XRSDPS Package, Liquid GoldBlack- Rear Mount. Except XRSDPS Package, Liquid Gold
-
330705205751 Black- Rear Mount. XRSDPS Package, Liquid GoldBlack- Rear Mount. XRSDPS Package, Liquid Gold
-
331250000901 Torx Truss M8 X 65Torx Truss M8 X 65
-
332250100025 Elastic Flanged Nut M8Elastic Flanged Nut M8
-
333705205634 SleeveSleeve
-
340705206632 E-Coat Belt BarE-Coat Belt Bar
-
341232521416 Elastic Flanged Stop Nut M12Elastic Flanged Stop Nut M12
-
350705205294 Upper Link ArmUpper Link Arm
-
360705205295 Lower Link ArmLower Link Arm
-
370706203122 SupportSupport
-
371390402000 Pop Rivet 3/16''Pop Rivet 3/16''
-
380705206069 Front Upper PlateFront Upper Plate
-
390705206511 Upper Plate PaintedUpper Plate Painted
