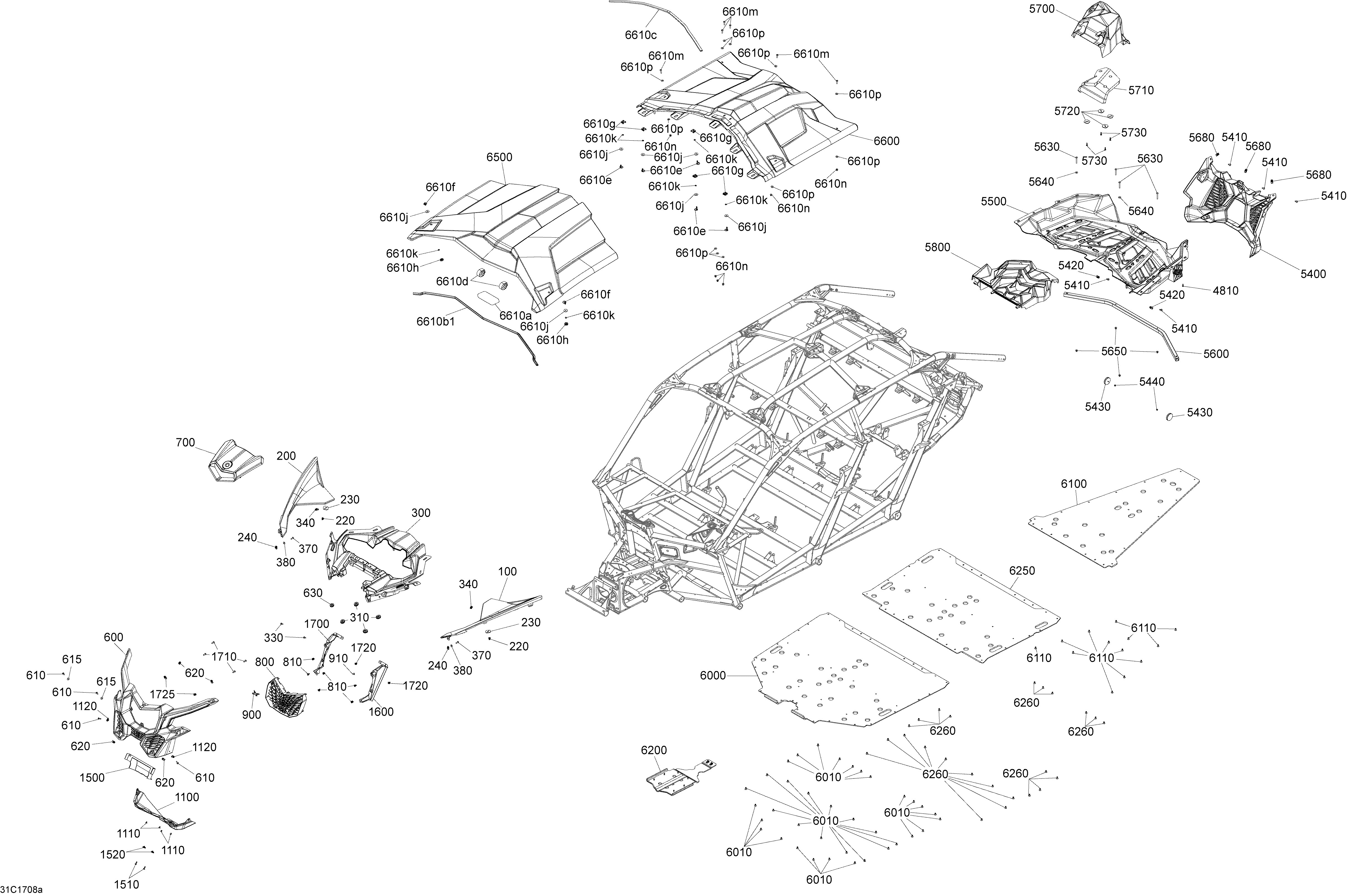

09- Body And Accessories Part 1 для BRP 4-Maverick X3 MAX - 2017
-
№АртикулНазвание
-
100705009505 White LH Front Fender. Bright WhiteWhite LH Front Fender. Bright White
-
100705011084 Yellow LH Front Fender. Circuit Yellow Met.Yellow LH Front Fender. Circuit Yellow Met.
-
100705011087 Black LH Front Fender. Timeless Black MetallicBlack LH Front Fender. Timeless Black Metallic
-
100705011092 Gold LH Front Fender. Liquid GoldGold LH Front Fender. Liquid Gold
-
200705009506 White RH Front Fender. Bright WhiteWhite RH Front Fender. Bright White
-
200705011086 Yellow RH Front Fender. Circuit Yellow Met.Yellow RH Front Fender. Circuit Yellow Met.
-
200705011091 Black RH Front Fender. Timeless Black MetallicBlack RH Front Fender. Timeless Black Metallic
-
200705011093 Gold RH Front Fender. Liquid GoldGold RH Front Fender. Liquid Gold
-
220517302785 ClipClip
-
230705003841 Support PlateSupport Plate
-
240250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
300705010671 Central HoodCentral Hood
-
310705010718 GrommetGrommet
-
330250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
340250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
370250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
380234062670 Flat Washer, StainlessFlat Washer, Stainless
-
600705009508 Front FaciaFront Facia
-
610250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
615234062670 Flat Washer, StainlessFlat Washer, Stainless
-
620250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
630517303756 GrommetGrommet
-
700705010277 White Facia cover. Bright WhiteWhite Facia cover. Bright White
-
700705011094 Yellow Facia cover. Circuit Yellow Met.Yellow Facia cover. Circuit Yellow Met.
-
700705011095 Black Facia cover. Timeless Black MetallicBlack Facia cover. Timeless Black Metallic
-
700705011097 Gold Facia cover. Liquid GoldGold Facia cover. Liquid Gold
-
800705010443 Front Radiator GrillFront Radiator Grill
-
810517302785 ClipClip
-
900705010885 LogoLogo
-
910250000725 Screw M4 X 16Screw M4 X 16
-
1100705009978 Front DeflectorFront Deflector
-
1110293150103 Black Pop Rivet 3/16''Black Pop Rivet 3/16''
-
1120250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
1500705010742 Lower Radiator deflectorLower Radiator deflector
-
1510250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
1520250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
1600705010626 LH Radiator deflectorLH Radiator deflector
-
1700705010627 RH Radiator deflectorRH Radiator deflector
-
1710250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
1720517302785 ClipClip
-
1725250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
4810250000720 Torx Screw K50 X 16Torx Screw K50 X 16
-
5400705010001 Rear FaciaRear Facia
-
5410250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
5420250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
5430705011221 Red ReflectorRed Reflector
-
5440233251494 Elastic Flanged Nut M5Elastic Flanged Nut M5
-
5500715004366 Luggage Rack KitLuggage Rack Kit
-
5600705010773 E-Coat Luggage Rack TubeE-Coat Luggage Rack Tube
-
5630250000868 Torx Truss M6 X 50Torx Truss M6 X 50
-
5640234062670 Flat Washer, StainlessFlat Washer, Stainless
-
5650233261494 Hex. Elastic Flanged Nut M6Hex. Elastic Flanged Nut M6
-
5680250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
5700705010288 Air Intake CoverAir Intake Cover
-
5710705011293 Foam Air Intake CoverFoam Air Intake Cover
-
5720705003841 Support PlateSupport Plate
-
5730250000760 Torx Screw Truss Head PT.K50 X 20Torx Screw Truss Head PT.K50 X 20
-
5800705010286 Rear CoverRear Cover
-
6000705012360 Central Skid Plate. Exept XRSDPS PackageCentral Skid Plate. Exept XRSDPS Package
-
6000705012362 Central Skid Plate. XRSDPS PackageCentral Skid Plate. XRSDPS Package
-
6010293150108 Pop Rivet 3/16''. Exept XRSDPS PackagePop Rivet 3/16''. Exept XRSDPS Package
-
6010293150108 Pop Rivet 3/16''. XRSDPS PackagePop Rivet 3/16''. XRSDPS Package
-
6100705012361 Rear Skid Plate. Exept XRSDPS PackageRear Skid Plate. Exept XRSDPS Package
-
6100705012363 Rear Skid Plate. XRSDPS PackageRear Skid Plate. XRSDPS Package
-
6110293150108 Pop Rivet 3/16''. XRSDPS PackagePop Rivet 3/16''. XRSDPS Package
-
6110293150108 Pop Rivet 3/16''. Exept XRSDPS PackagePop Rivet 3/16''. Exept XRSDPS Package
-
6200715003933 Front Skid Plates. XRSDPS PackageFront Skid Plates. XRSDPS Package
-
6250705011458 Central Skid Plate. Exept XRSDPS PackageCentral Skid Plate. Exept XRSDPS Package
-
6250705012191 Central Skid Plate. XRSDPS PackageCentral Skid Plate. XRSDPS Package
-
6260293150108 Pop Rivet 3/16''. Exept XRSDPS PackagePop Rivet 3/16''. Exept XRSDPS Package
-
6260293150108 Pop Rivet 3/16''. XRSDPS PackagePop Rivet 3/16''. XRSDPS Package
-
6500715003750 Max Sport Roof. XRSDPS PackageMax Sport Roof. XRSDPS Package
-
6600715003750 Max Sport Roof. XRSDPS PackageMax Sport Roof. XRSDPS Package
-
6610a704904566 CAN-AM DecalCAN-AM Decal
-
6610b1293250424 SealSeal
-
6610c293200136 Seal, MeterSeal, Meter
-
6610d705011280 StrapStrap
-
6610e705002649 Quarter Turn ScrewQuarter Turn Screw
-
6610f250100186 Quarter-Turn ScrewQuarter-Turn Screw
-
6610g705002651 Quarter Turn NutQuarter Turn Nut
-
6610h705011055 Quarter Turn Urethane WasherQuarter Turn Urethane Washer
-
6610j250200165 Flat Washer M6Flat Washer M6
-
6610k705002650 WasherWasher
-
6610m250000807 Torx Screw M6 X 25Torx Screw M6 X 25
-
6610n233261466 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
6610p250200029 Washer M6Washer M6
