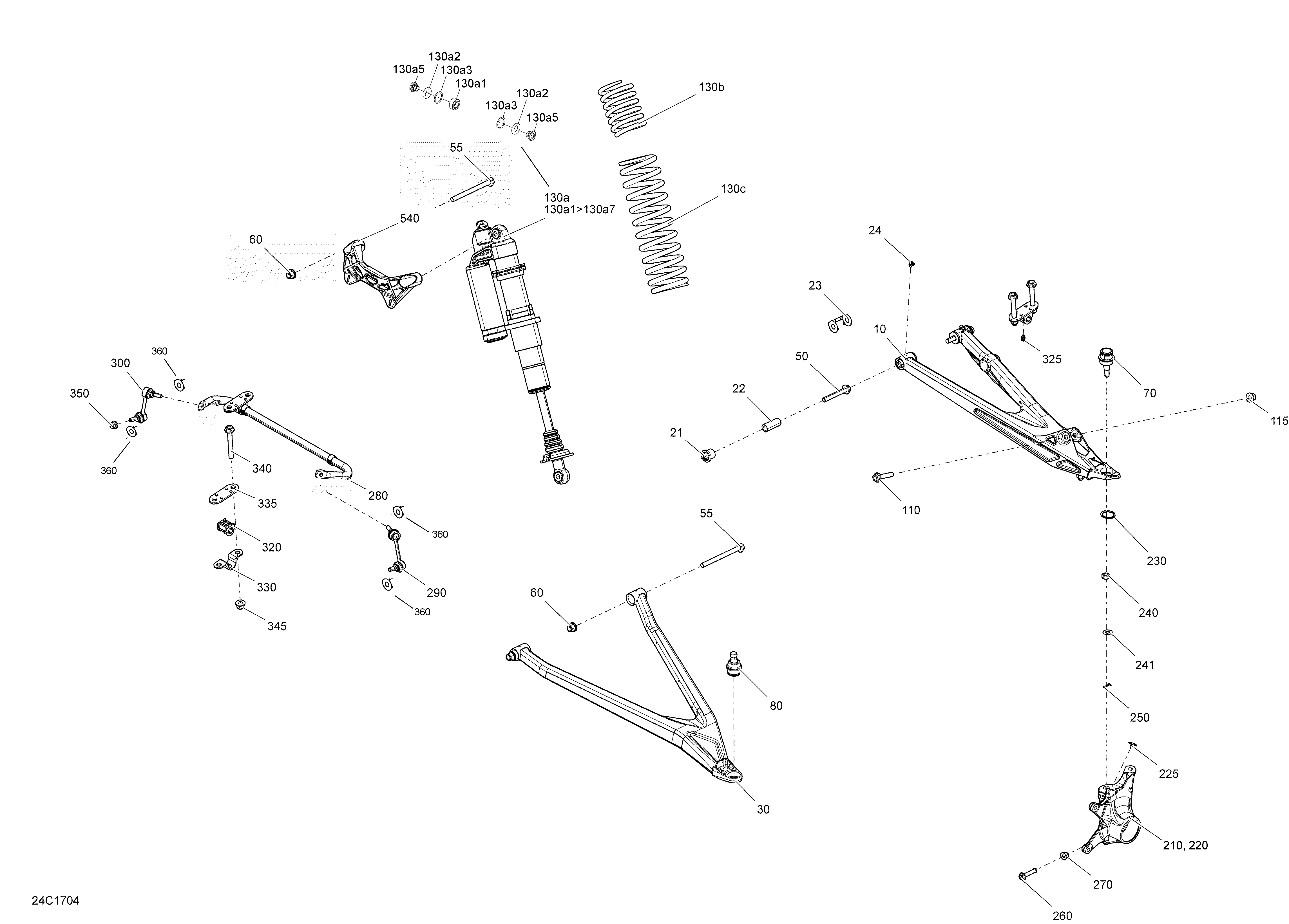

07- Front Suspension для BRP 4-Maverick X3 MAX - 2017
-
№АртикулНазвание
-
10706202700 Black LH Upper Arm. Except XRSDPS PackageBlack LH Upper Arm. Except XRSDPS Package
-
10706203074 Suspension Arm. XRSDPS Package, Liquid GoldSuspension Arm. XRSDPS Package, Liquid Gold
-
10706203076 Suspension Arm. XRSDPS Package, Timeless Black MetallicSuspension Arm. XRSDPS Package, Timeless Black Metallic
-
20706202701 Black RH Upper Arm. Except XRSDPS PackageBlack RH Upper Arm. Except XRSDPS Package
-
20706203075 Suspension Arm . XRSDPS Package, Liquid GoldSuspension Arm . XRSDPS Package, Liquid Gold
-
20706203077 Suspension Arm. XRSDPS Package, Timeless Black MetallicSuspension Arm. XRSDPS Package, Timeless Black Metallic
-
21706201659 CushionCushion
-
22706202257 Interior BushingInterior Bushing
-
23706202300 Wear PlateWear Plate
-
24293550056 Grease Fitting 90°Grease Fitting 90°
-
30706202706 Black LH Lower Arm. XRSDPS PackageBlack LH Lower Arm. XRSDPS Package
-
30706202919 Black LH Lower Arm. Except XRSDPS PackageBlack LH Lower Arm. Except XRSDPS Package
-
40706202707 Black RH Lower Arm. XRSDPS PackageBlack RH Lower Arm. XRSDPS Package
-
40706202920 Black RH Lower Arm. Except XRSDPS PackageBlack RH Lower Arm. Except XRSDPS Package
-
50250000859 Screw Flange M12 X 85Screw Flange M12 X 85
-
55250000861 Screw Flange M12 X 145Screw Flange M12 X 145
-
60233221466 Elastic Flange Nut M12Elastic Flange Nut M12
-
70706202801 Upper Ball JointUpper Ball Joint
-
80706202045 Ball JointBall Joint
-
110250000857 Screw Flange M12 X 60Screw Flange M12 X 60
-
115233221466 Elastic Flange Nut M12Elastic Flange Nut M12
-
130a706202782 LH Front Shock. MAX STDLH Front Shock. MAX STD
-
130a706202794 LH Front Shock. XRSDPS Package, Liquid GoldLH Front Shock. XRSDPS Package, Liquid Gold
-
130a706202858 LH Front Shock. XRSDPS Package, Timeless Black MetallicLH Front Shock. XRSDPS Package, Timeless Black Metallic
-
130a706202788 LHFront Shock. XDSDPSLHFront Shock. XDSDPS
-
130a706202783 RH Front Shock. MAX STDRH Front Shock. MAX STD
-
130a706202789 RH Front Shock. XDSDPSRH Front Shock. XDSDPS
-
130a706202795 RH Front Shock. XRSDPS Package, Liquid GoldRH Front Shock. XRSDPS Package, Liquid Gold
-
130a706202859 RH Front Shock. XRSDPS Package, Timeless Black MetallicRH Front Shock. XRSDPS Package, Timeless Black Metallic
-
130a1715900337 Spherical BearingSpherical Bearing
-
130a2715900338 O-Ring BushingO-Ring Bushing
-
130a3715900480 CirclipCirclip
-
130a4715900481 ReducerReducer
-
130a6715900482 BearingBearing
-
130b706202697 Spring. XRSDPS Package, Timeless Black MetallicSpring. XRSDPS Package, Timeless Black Metallic
-
130b706202766 Spring. XRSDPS Package, Liquid GoldSpring. XRSDPS Package, Liquid Gold
-
130b706202586 Deep Black Front Spring. Except XRSDPS PackageDeep Black Front Spring. Except XRSDPS Package
-
130c706202790 Deep Black Front Spring. XRSDPS Package, Timeless Black MetallicDeep Black Front Spring. XRSDPS Package, Timeless Black Metallic
-
130c706202796 Spring. XRSDPS Package, Liquid GoldSpring. XRSDPS Package, Liquid Gold
-
130c706202790 Deep Black Front Spring. Except XRSDPS PackageDeep Black Front Spring. Except XRSDPS Package
-
210706202759 LH KnuckleLH Knuckle
-
220706202760 RH KnuckleRH Knuckle
-
225706202502 Wear PlateWear Plate
-
230293370035 CirclipCirclip
-
240250100099 Nut M12Nut M12
-
241250200086 Flat WasherFlat Washer
-
250211400017 Cotter PinCotter Pin
-
260207605044 Hex. Flanged Screw M10 X 50Hex. Flanged Screw M10 X 50
-
270233201436 Flanged Elastic Nut M10Flanged Elastic Nut M10
-
280706202454 Sway BarSway Bar
-
290706202764 Link Stabilizer Bar LHLink Stabilizer Bar LH
-
300706202765 Link Stabilizer Bar RHLink Stabilizer Bar RH
-
320706202849 BushingBushing
-
325293550056 Grease Fitting 90°Grease Fitting 90°
-
330706202460 ClampClamp
-
335706202551 Plate SupportPlate Support
-
340250000876 Hex. Flanged Screw M12 X 95Hex. Flanged Screw M12 X 95
-
345233221466 Elastic Flange Nut M12Elastic Flange Nut M12
-
350233201436 Flanged Elastic Nut M10Flanged Elastic Nut M10
-
360234201474 Conical Spring Washer 10 mmConical Spring Washer 10 mm
-
540706202708 Black Link. Except XRSDPS Package, Liquid GoldBlack Link. Except XRSDPS Package, Liquid Gold
-
540706202709 Red Link. XRSDPS Package, Liquid GoldRed Link. XRSDPS Package, Liquid Gold
