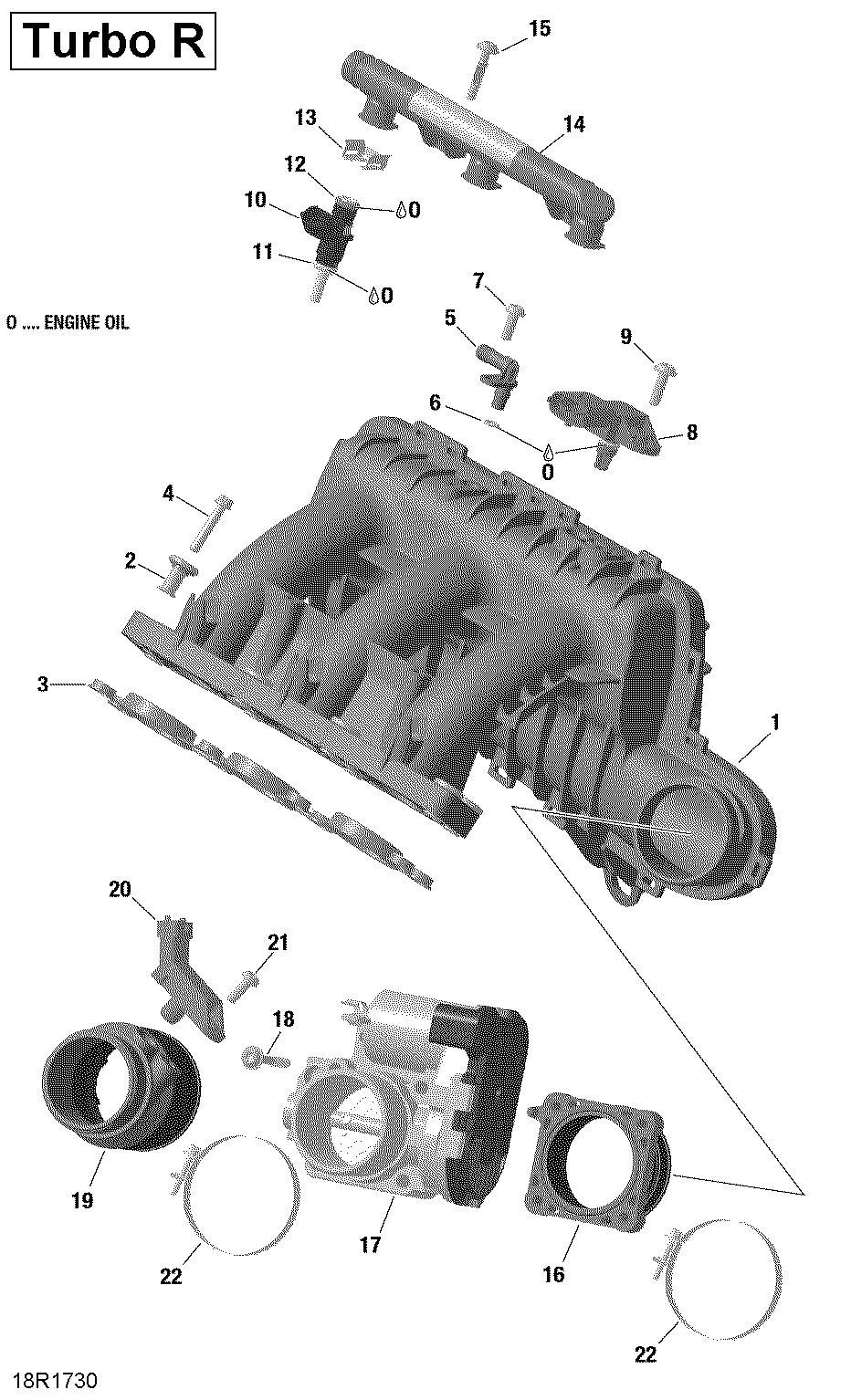

02- Air Intake Manifold And Throttle Body для BRP 4-Maverick X3 MAX - 2017
-
№АртикулНазвание
-
1>3420867345 Air Box Ass'yAir Box Ass'y
-
2420629175 Distance SleeveDistance Sleeve
-
3420450510 GasketGasket
-
4420440647 Flanged Torx Screw M6 X 30Flanged Torx Screw M6 X 30
-
5420201191 FittingFitting
-
6420230530 O-RingO-Ring
-
7420641588 Flanged Torx Screw M6 X 16Flanged Torx Screw M6 X 16
-
8420874656 Pressure And Temperature SensorPressure And Temperature Sensor
-
9420841103 Flanged Torx Screw M6 X 20Flanged Torx Screw M6 X 20
-
10>12420874845 Injection ValveInjection Valve
-
11420431890 O-RingO-Ring
-
12420631220 O-RingO-Ring
-
13420853030 ClipClip
-
14420874966 Fuel RailFuel Rail
-
15420441573 Flanged Torx Screw M6 X 30Flanged Torx Screw M6 X 30
-
16420867110 Intake NeckIntake Neck
-
17420893147 Throttle Body Ass'yThrottle Body Ass'y
-
18420441588 Flanged Torx Screw M6 X 50Flanged Torx Screw M6 X 50
-
19420867555 Connecting SocketConnecting Socket
-
20420274057 Pressure SensorPressure Sensor
-
21420641588 Flanged Torx Screw M6 X 16Flanged Torx Screw M6 X 16
-
22420251830 Hose ClampHose Clamp
