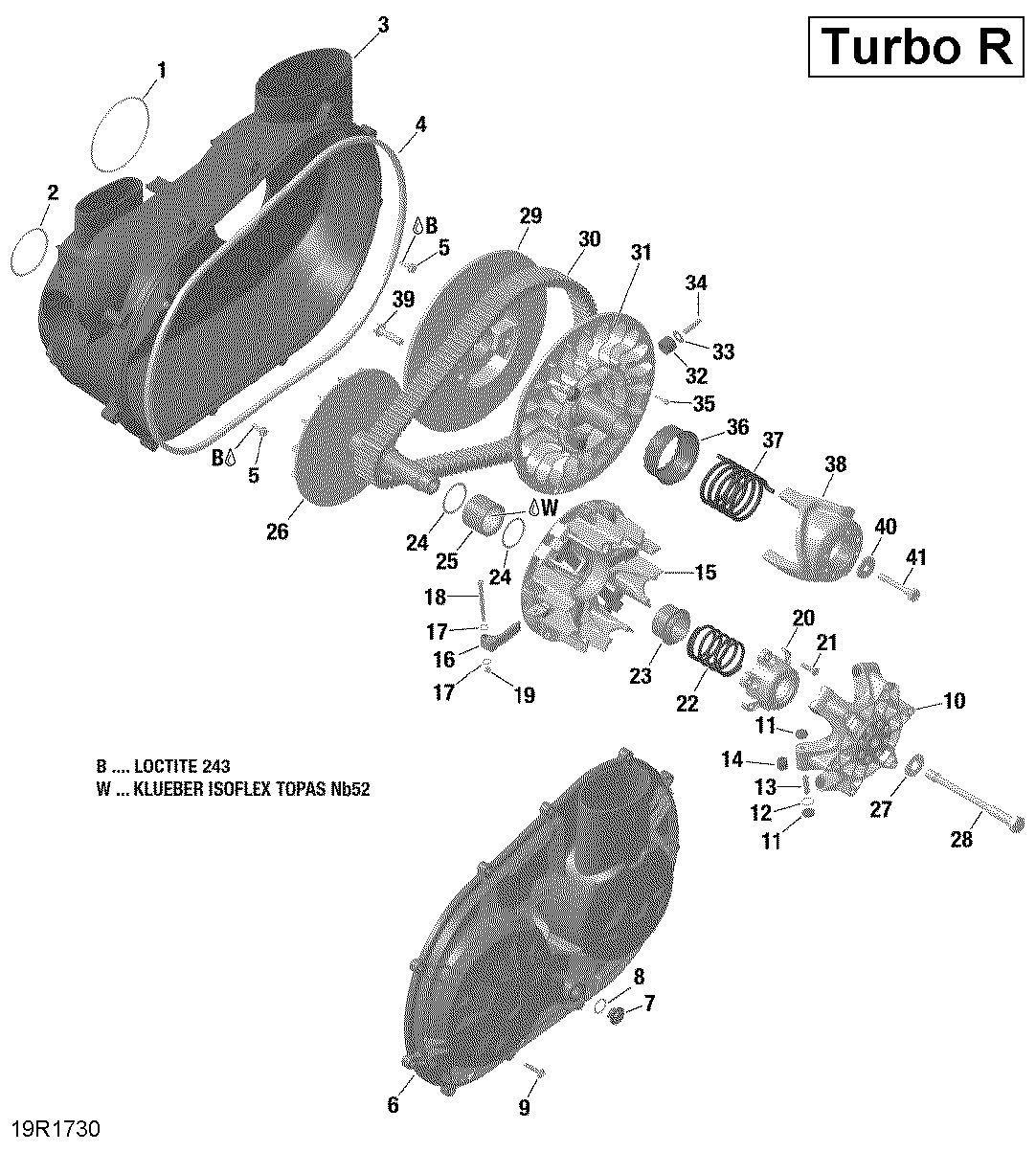

05- Transmission для BRP 4-Maverick X3 MAX - 2017
-
№АртикулНазвание
-
1420450430 O-RingO-Ring
-
2420450520 O-RingO-Ring
-
3420212605 CVT Air GuideCVT Air Guide
-
4420450405 GasketGasket
-
5420441311 Hex.Screw M6 X 20Hex.Screw M6 X 20
-
6420212505 Variator CoverVariator Cover
-
7420441820 CapCap
-
8420250055 O-RingO-Ring
-
9420441573 Flanged Torx Screw M6 X 30Flanged Torx Screw M6 X 30
-
10420280725 Governor Cup Ass'yGovernor Cup Ass'y
-
11420281296 Slider Shoe SetSlider Shoe Set
-
12420230456 O-RingO-Ring
-
13417223257 Roller AxleRoller Axle
-
14420229991 Roller ThrustRoller Thrust
-
15420280608 Outer Half Ass'yOuter Half Ass'y
-
16>19420248658 Centrifugal Lever SetCentrifugal Lever Set
-
20420280616 Bearing CoverBearing Cover
-
21420841549 Flanged Torx Screw M6 X 25Flanged Torx Screw M6 X 25
-
22420638111 SpringSpring
-
23420427211 Spring RetainerSpring Retainer
-
24420427220 WasherWasher
-
25420233417 Bearing Sleeve With BearingBearing Sleeve With Bearing
-
26420280595 Inner Half Ass'yInner Half Ass'y
-
27420245690 WasherWasher
-
28420841161 Hexagonal Screw M14X 165Hexagonal Screw M14X 165
-
29420280636 Sliding Pulley Ass'ySliding Pulley Ass'y
-
30422280651 Drive BeltDrive Belt
-
31420280626 Outer Half Pulley Ass'yOuter Half Pulley Ass'y
-
32420629211 Roller ThrustRoller Thrust
-
33420227946 Thrust WasherThrust Washer
-
34420629192 BoltBolt
-
35420841531 Torx Screw M4 X 20Torx Screw M4 X 20
-
36420427805 Spring SupportSpring Support
-
37420638126 SpringSpring
-
38420280649 Cam 37/50deg Ass'yCam 37/50deg Ass'y
-
39420841711 Torx Flange Screw M10 X 40Torx Flange Screw M10 X 40
-
40420427240 Collar WasherCollar Washer
-
41420441990 Hexagonal Screw M10X 61Hexagonal Screw M10X 61
