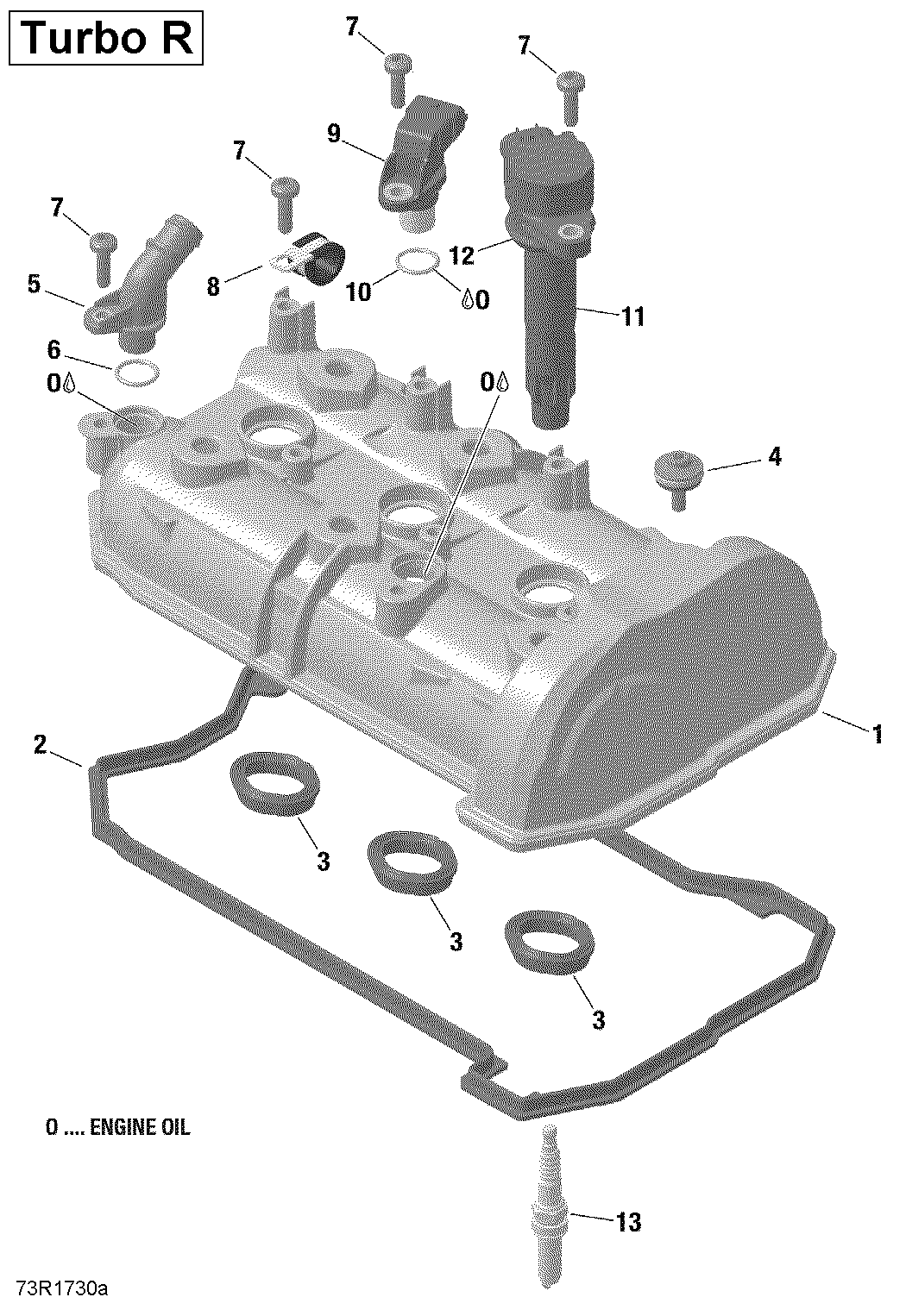

01- Valve Cover для BRP 4-Maverick X3 MAX - 2017
-
№АртикулНазвание
-
1420911492 Valve CoverValve Cover
-
2420431801 GasketGasket
-
3420431751 GasketGasket
-
4420440497 Distance Screw M6Distance Screw M6
-
5420611242 ConnectorConnector
-
6420631240 O-RingO-Ring
-
7420441383 Flanged Torx Screw M6 X 20Flanged Torx Screw M6 X 20
-
8420851492 Cable ClampCable Clamp
-
9>10420664045 Camshaft Position Sensor Ass'yCamshaft Position Sensor Ass'y
-
10420631890 O-RingO-Ring
-
11>12420666145 Stick CoilStick Coil
-
12420201430 Protection CapProtection Cap
-
13715900492 Spark PlugSpark Plug
