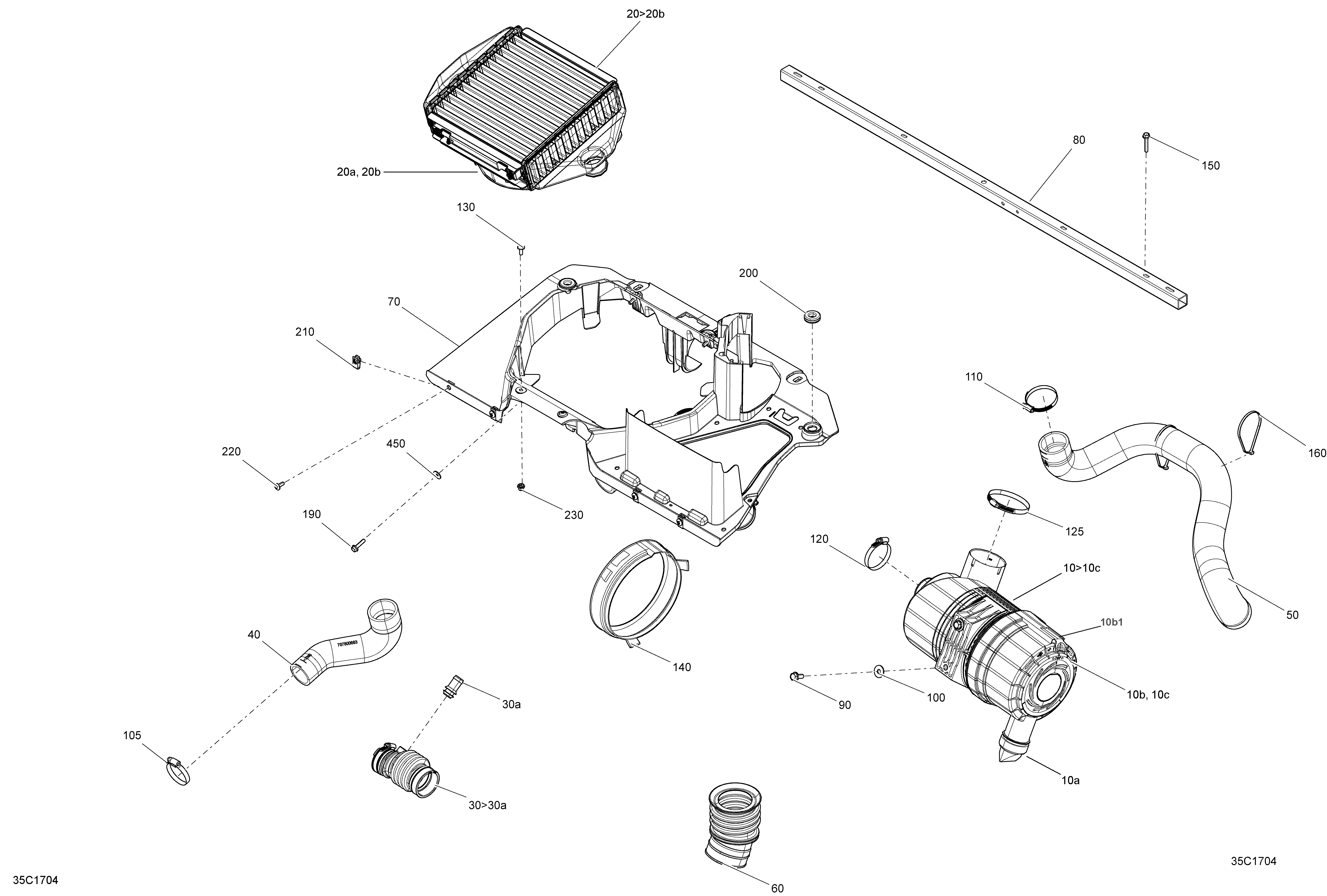

02- Air Intake для BRP 4-Maverick X3 MAX - 2017
-
№АртикулНазвание
-
10>10c707800667 Airbox Ass'y. Includes 10 to 10cAirbox Ass'y. Includes 10 to 10c
-
10a715003114 Duck Bill ValveDuck Bill Valve
-
10b715900421 Airbox CoverAirbox Cover
-
10c715900422 Air FilterAir Filter
-
20>20b707800686 Intercooler. Includes 20 a 20bIntercooler. Includes 20 a 20b
-
20a715900490 ShroudShroud
-
20b715900491 FanFan
-
30>30a707800693 Air Intake Turbo. Includes 30 to 30aAir Intake Turbo. Includes 30 to 30a
-
30a273000234 BreatherBreather
-
40707800683 Air Intake IntercoolerAir Intake Intercooler
-
50707800685 Air Intake EngineAir Intake Engine
-
60707800687 Air Intake FilterAir Intake Filter
-
70707800691 Radiator SupportRadiator Support
-
80707800702 TubeTube
-
90207682044 Hex. Flanged Screw M8 X 20Hex. Flanged Screw M8 X 20
-
100234082410 Flat Washer 8 mmFlat Washer 8 mm
-
105293650090 Norma Gear ClampNorma Gear Clamp
-
110293650118 Norma Gear ClampNorma Gear Clamp
-
120293650090 Norma Gear ClampNorma Gear Clamp
-
125514053074 Norma Gear ClampNorma Gear Clamp
-
130250000717 Torx Head Screw M6 X 16Torx Head Screw M6 X 16
-
140707002043 Outside SealOutside Seal
-
150207563544 Screw H Flange S.Grip M6 X 35Screw H Flange S.Grip M6 X 35
-
160293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
190207562544 Hex. Flanged Screw M6 X 25, Scotch GripHex. Flanged Screw M6 X 25, Scotch Grip
-
200517303756 GrommetGrommet
-
210250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
220250000721 Torx ScrewTorx Screw
-
230293450232 InsertInsert
-
450234062410 Flat Washer 6 mmFlat Washer 6 mm
