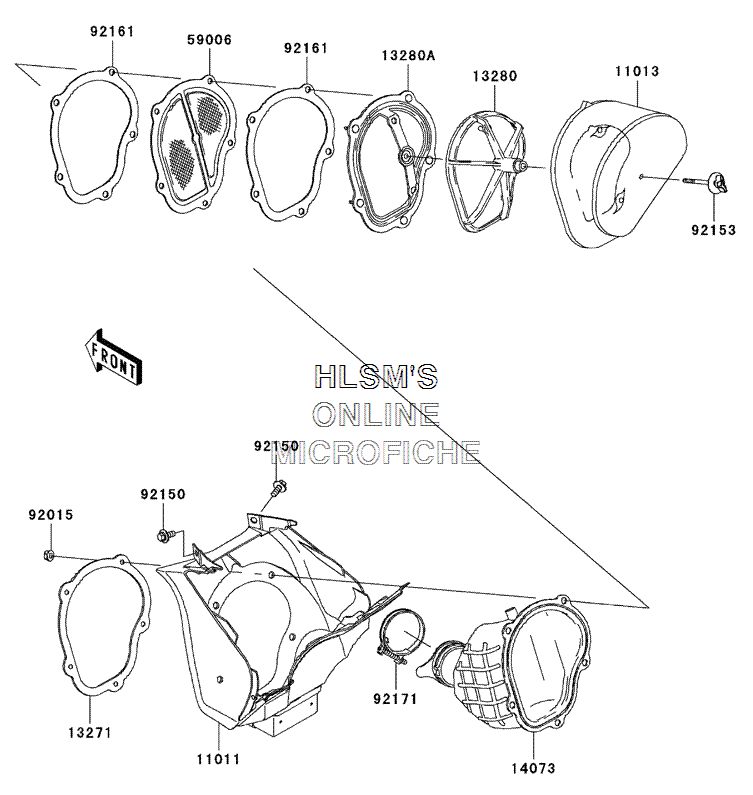

AIR CLEANER для Kawasaki KX 250F - 2004 года выпуска
-
№АртикулНазвание
-
1101111011-0026 CASE, AIR FILTERCASE, AIR FILTER
-
1101311013-0008 ELEMENT, AIR FILTERELEMENT, AIR FILTER
-
1327113271-0059 PLATE, DUCT FITTINGPLATE, DUCT FITTING
-
1328013280-0057 HOLDER, ELEMENTHOLDER, ELEMENT
-
13280A13280-0058 HOLDERHOLDER
-
1407314073-0024 DUCT, AIR FILTERDUCT, AIR FILTER
-
5900659006-0005 ARRESTER, FLAMEARRESTER, FLAME
-
9201592015-1259 NUT, FLANGED, 5MMNUT, FLANGED, 5MM
-
9215092150-1506 BOLT, FLANGED, 6X16BOLT, FLANGED, 6X16
-
9215392153-0623 BOLT, 6X75BOLT, 6X75
-
9216192161-0025 DAMPERDAMPER
-
9217192171-0087 CLAMP, CARBURETOR, DUCTCLAMP, CARBURETOR, DUCT
