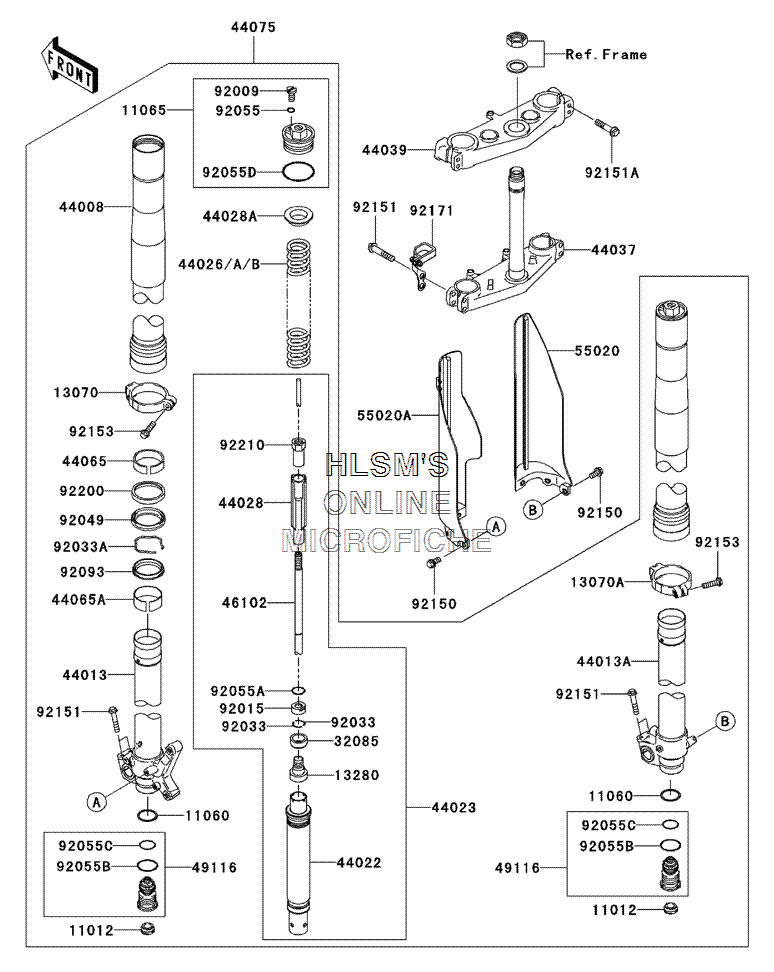

FRONT FORK для Kawasaki KX 250F - 2004 года выпуска
-
№АртикулНазвание
-
1101211012-1692 CAPCAP
-
1106011060-1707 GASKETGASKET
-
1106511065-1241 CAP, FORK, TOPCAP, FORK, TOP
-
1307013070-0025 GUIDE, FORK (LEFT)GUIDE, FORK (LEFT)
-
13070A13070-0027 GUIDE, FORK (RIGHT)GUIDE, FORK (RIGHT)
-
1328013280-1127 HOLDERHOLDER
-
3208532085-1323 STOPPERSTOPPER
-
4400844008-0004-JS PIPE, FORK OUTER, BRONZEPIPE, FORK OUTER, BRONZE
-
4401344013-0014 PIPE, FORK INNER (LEFT)PIPE, FORK INNER (LEFT)
-
44013A44013-0015 PIPE, FORK INNER (RIGHT)PIPE, FORK INNER (RIGHT)
-
4402244022-0006 CYLINDER, FORKCYLINDER, FORK
-
4402344023-0012 CYLINDER, SET, FORKCYLINDER, SET, FORK
-
4402644026-0011 SPRING, FRONT FORK, K=0.43 (OPT)SPRING, FRONT FORK, K=0.43 (OPT)
-
44026A44026-0013 SPRING, FRONT FORK, K=0.45 (OPT)SPRING, FRONT FORK, K=0.45 (OPT)
-
44026B44026-1769 SPRING, FRONT FORK, K=0.44SPRING, FRONT FORK, K=0.44
-
4402844028-0001 GUIDE, FORK SPRINGGUIDE, FORK SPRING
-
44028A44028-1104 GUIDE, FORK SPRINGGUIDE, FORK SPRING
-
4403744037-0007 HOLDER, FORK UNDERHOLDER, FORK UNDER
-
4403944039-1330 HOLDER, FORK UPPERHOLDER, FORK UPPER
-
4406544065-0006 BUSHING, FRONT FORKBUSHING, FRONT FORK
-
44065A44065-1140 BUSHING, FRONT FORKBUSHING, FRONT FORK
-
4407544075-0019-JS DAMPER, SET, FORK, BRONZEDAMPER, SET, FORK, BRONZE
-
4610246102-0026 ROD, PISTON, ASSYROD, PISTON, ASSY
-
4911649116-0008 VALVE, ASSY, FORKVALVE, ASSY, FORK
-
5502055020-0020-RZ GUARD, FORK (RIGHT) (WHITE)GUARD, FORK (RIGHT) (WHITE)
-
55020A55020-0060-RZ GUARD, FORK (LEFT) (WHITE)GUARD, FORK (LEFT) (WHITE)
-
9200992009-1884 SCREWSCREW
-
9201592015-1805 NUTNUT
-
9203392033-1271 RING, SNAPRING, SNAP
-
92033A92033-1329 RING, SNAPRING, SNAP
-
9204992049-1599 SEAL, OILSEAL, OIL
-
9205592055-1441 O-RINGO-RING
-
92055A92055-1442 O-RINGO-RING
-
92055B92055-1547 O-RING, FORK VALVEO-RING, FORK VALVE
-
92055C92055-1548 O-RING, FORK VALVEO-RING, FORK VALVE
-
92055D92055-1677 O-RINGO-RING
-
9209392093-1566 SEAL, FORK OUTER TUBESEAL, FORK OUTER TUBE
-
9215092150-1435 BOLT, 6X12BOLT, 6X12
-
9215192151-1877 BOLT, FLANGED, 8X40BOLT, FLANGED, 8X40
-
92151A92151-1878 BOLT, FLANGED, 8X35BOLT, FLANGED, 8X35
-
9215392153-0689 BOLT, FLANGED, 6X20BOLT, FLANGED, 6X20
-
9217192171-1572 CLAMP, HOSECLAMP, HOSE
-
9220092200-0067 WASHERWASHER
-
9221092210-1177 NUTNUT
