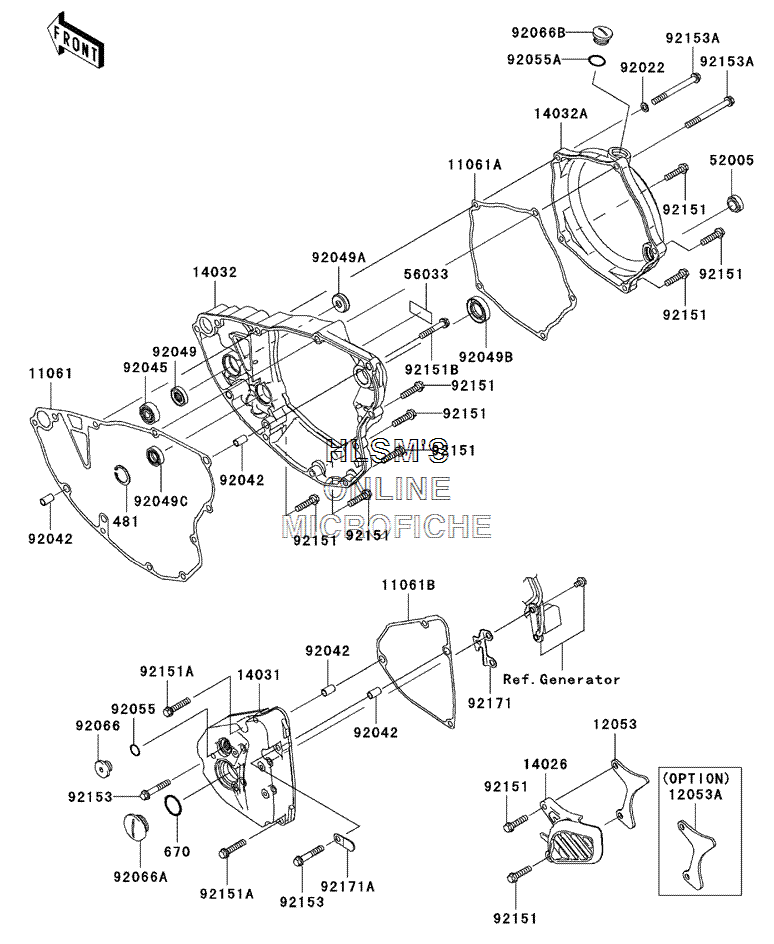

ENGINE COVER для Kawasaki KX 250F - 2004 года выпуска
-
№АртикулНазвание
-
481481J2200 CIRCLIPCIRCLIP
-
670670B2022 O-RING, 22MMO-RING, 22MM
-
1106111061-0030 GASKET, CLUTCH COVER, INNNERGASKET, CLUTCH COVER, INNNER
-
11061A11061-0031 GASKET, CLUTCH COVER, OUTERGASKET, CLUTCH COVER, OUTER
-
11061B11061-0032 GASKET, GENERATOR COVERGASKET, GENERATOR COVER
-
1205312053-0011 GUIDE, CHAIN (13 TEETH)GUIDE, CHAIN (13 TEETH)
-
12053A12053-0018 GUIDE, CHAIN (12 TEETH) (OPTION)GUIDE, CHAIN (12 TEETH) (OPTION)
-
1402614026-0001 COVER, CHAINCOVER, CHAIN
-
1403114031-0019 COVER, GENERATORCOVER, GENERATOR
-
1403214032-0011 COVER, CLUTCH, INNNERCOVER, CLUTCH, INNNER
-
14032A14032-0035 COVER, CLUTCH, OUTERCOVER, CLUTCH, OUTER
-
5200552005-1009 GAUGE, OIL LEVELGAUGE, OIL LEVEL
-
5603356033-0049 LABEL, MANUAL, OIL CAPACITYLABEL, MANUAL, OIL CAPACITY
-
9202292022-304 WASHER, 6.2X11X1WASHER, 6.2X11X1
-
9204292042-007 PIN, DOWEL, 6.3X8X14PIN, DOWEL, 6.3X8X14
-
9204592045-1123 BEARING, BALL, #628BEARING, BALL, #628
-
9204992049-0016 SEAL, OIL, SD 8 22 5 ZSSEAL, OIL, SD 8 22 5 ZS
-
92049A92049-0021 SEAL, OIL, TCY8X22X7SEAL, OIL, TCY8X22X7
-
92049B92049-013 SEAL, OIL, SB18307SEAL, OIL, SB18307
-
92049C92049-1519 SEAL, OIL, TC13225.5SEAL, OIL, TC13225.5
-
9205592055-1141 O-RING, ID=13.8O-RING, ID=13.8
-
92055A92055-1146 O-RINGO-RING
-
9206692066-0014 PLUG, 12X8PLUG, 12X8
-
92066A92066-1414 PLUGPLUG
-
92066B92066-1456 PLUGPLUG
-
9215192151-1130 BOLT, 6X25BOLT, 6X25
-
92151A92151-1134 BOLT, 6X30BOLT, 6X30
-
92151B92151-1135 BOLT, 6X35BOLT, 6X35
-
9215392153-0668 BOLT, 6X35BOLT, 6X35
-
92153A92153-0697 BOLT, 6X65BOLT, 6X65
-
9217192171-0195 CLAMP, HARNESSCLAMP, HARNESS
-
92171A92171-0295 CLAMPCLAMP
