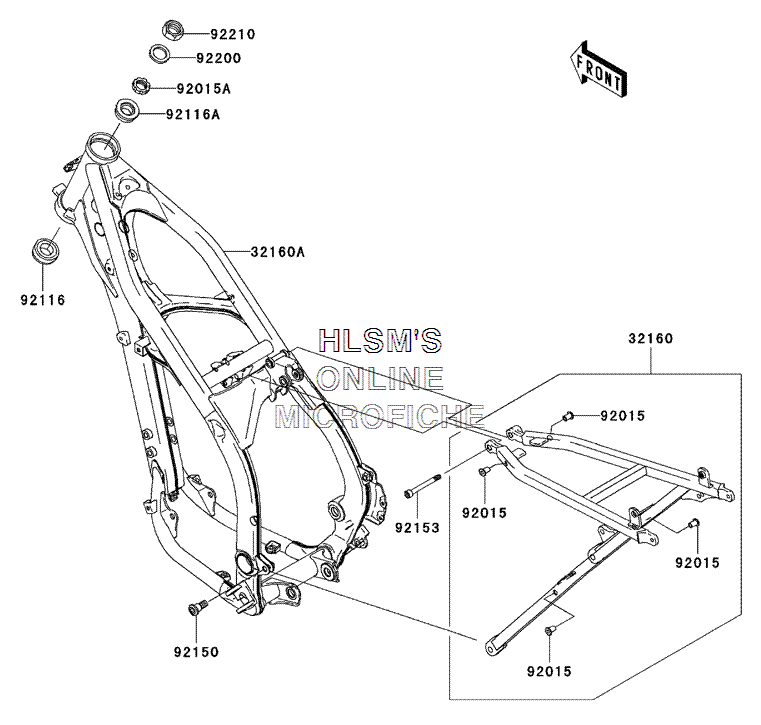

FRAME для Kawasaki KX 250F - 2004 года выпуска
-
№АртикулНазвание
-
3216032160-0052 FRAME, COMP, REARFRAME, COMP, REAR
-
32160A32160-0053-458 FRAME, COMP, FRONT (P.SILVER)FRAME, COMP, FRONT (P.SILVER)
-
9201592015-1791 NUT, POP, 6MM, L=15NUT, POP, 6MM, L=15
-
92015A92015-1861 NUT, STEERING STEM, 28MMNUT, STEERING STEM, 28MM
-
9211692116-1069 BEARING, ROLLER, HI, CAP32006JRRSBEARING, ROLLER, HI, CAP32006JRRS
-
92116A92116-1076 BEARING, ROLLER, HI, CAP320/28JRRBEARING, ROLLER, HI, CAP320/28JRR
-
9215092150-1839 BOLT, SOCKET, 8X20BOLT, SOCKET, 8X20
-
9215392153-1124 BOLT, SOCKET, 8X74BOLT, SOCKET, 8X74
-
9220092200-0023 WASHER, 25X36X1WASHER, 25X36X1
-
9221092210-0066 NUT, 24MMNUT, 24MM
