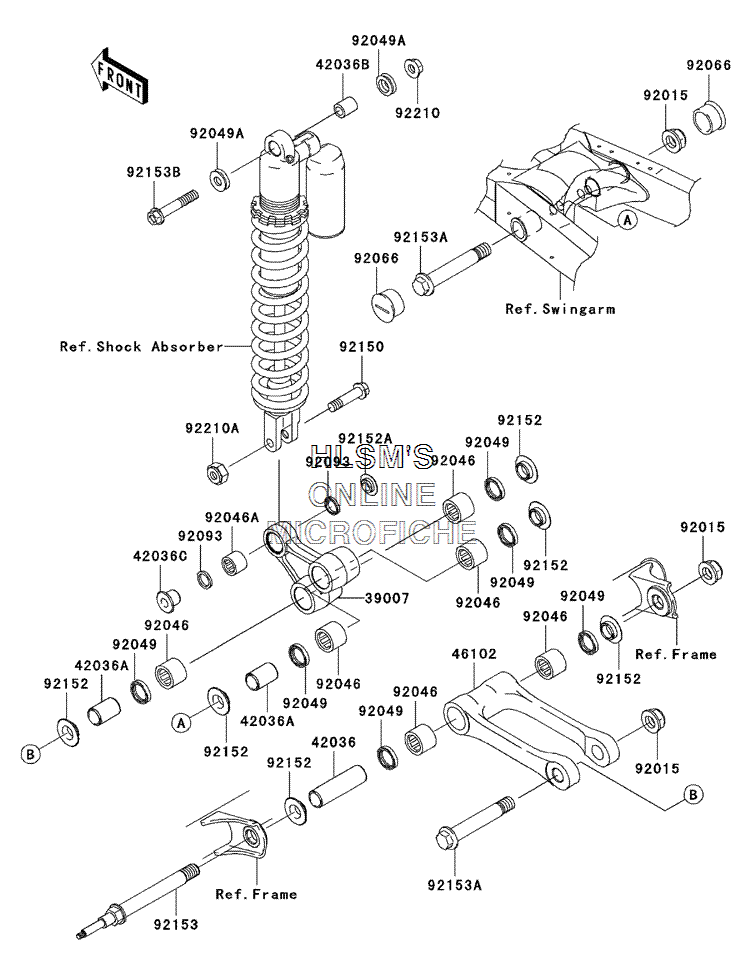

SUSPENSION - REAR для Kawasaki KX 250F - 2004 года выпуска
-
№АртикулНазвание
-
3900739007-0001 ARM, SUSP, UNI TRAKARM, SUSP, UNI TRAK
-
4203642036-0014 SLEEVE, 15X20X80SLEEVE, 15X20X80
-
42036A42036-0015 SLEEVE, 15X20X41.8SLEEVE, 15X20X41.8
-
42036B42036-1248 SLEEVE, 10X16X19SLEEVE, 10X16X19
-
42036C42036-1351 SLEEVESLEEVE
-
4610246102-0008 ROD, SUSPENSIONROD, SUSPENSION
-
9201592015-1401 NUT, FLANGED, 14MMNUT, FLANGED, 14MM
-
9204692046-1151 BEARING, NEEDLE, F, 2016BEARING, NEEDLE, F, 2016
-
92046A92046-1301 BEARING, NEEDLE, 7E, HVS16X22X12BEARING, NEEDLE, 7E, HVS16X22X12
-
9204992049-0027 SEAL, OIL, HF020N3, ASEAL, OIL, HF020N3, A
-
92049A92049-1330 SEAL, OILSEAL, OIL
-
9206692066-0026-6Z PLUG, SWING ARM, F.BLACKPLUG, SWING ARM, F.BLACK
-
9209392093-1436 SEALSEAL
-
9215092150-1571 BOLT, FLANGED, 10X42BOLT, FLANGED, 10X42
-
9215292152-0108 COLLARCOLLAR
-
92152A92152-1139 COLLARCOLLAR
-
9215392153-0367 BOLT, 14MM, L=116BOLT, 14MM, L=116
-
92153A92153-0429 BOLT, 14MM, L=92BOLT, 14MM, L=92
-
92153B92153-0581 BOLT, FLANGED, 10X56BOLT, FLANGED, 10X56
-
9221092210-1080 NUT, LOCK, FLANGED, 10MMNUT, LOCK, FLANGED, 10MM
-
92210A92210-1184 NUT, LOCK, 10MMNUT, LOCK, 10MM
