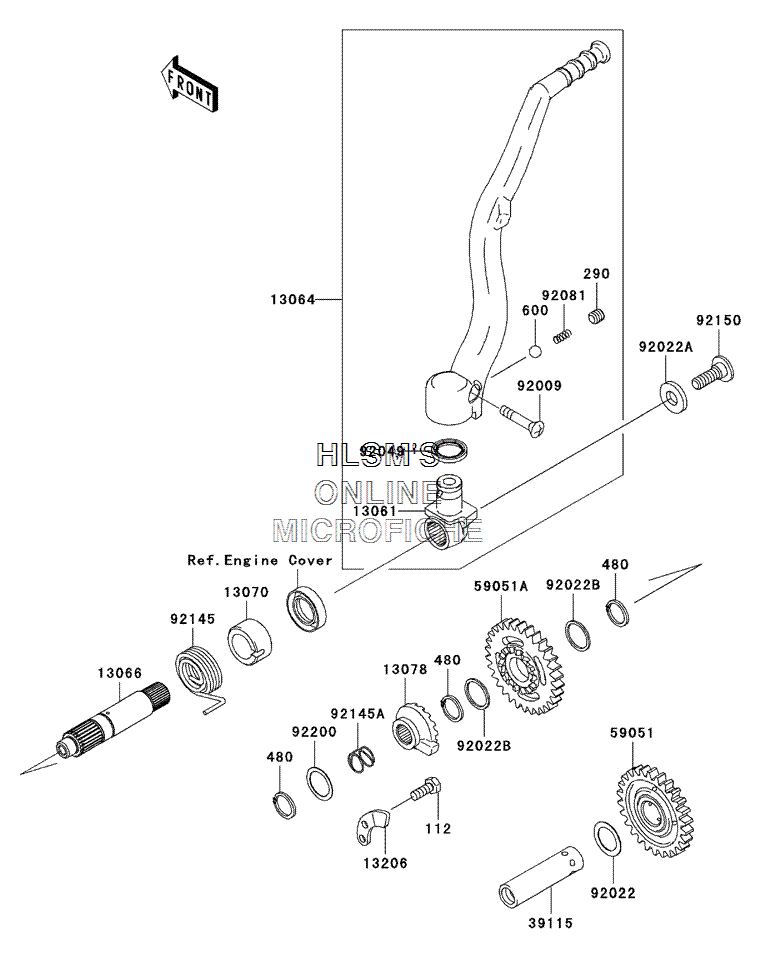

KICKSTARTER MECHANISM для Kawasaki KX 250F - 2004 года выпуска
-
№АртикулНазвание
-
112112G0616 BOLT, UPSETBOLT, UPSET
-
290290P0808 SCREW, SET, SOCKETSCREW, SET, SOCKET
-
480480J1800 CIRCLIP, TYPE, C, 18MMCIRCLIP, TYPE, C, 18MM
-
600600A0800 BALL, STEEL, 1/4"BALL, STEEL, 1/4"
-
1306113061-0052 BOSSBOSS
-
1306413064-0015 LEVER, ASSY, KICKLEVER, ASSY, KICK
-
1306613066-0004 SHAFT, KICKSHAFT, KICK
-
1307013070-0011 GUIDEGUIDE
-
1307813078-0005 RATCHETRATCHET
-
1320613206-0003 GUIDE, KICKGUIDE, KICK
-
3911539115-0005 SHAFT, IDLER, KICKSHAFT, IDLER, KICK
-
5905159051-0006 GEAR, SPUR, KICK STARTER (26 TEETH)GEAR, SPUR, KICK STARTER (26 TEETH)
-
59051A59051-0033 GEAR, SPUR, KICK STARTER (28 TEETH)GEAR, SPUR, KICK STARTER (28 TEETH)
-
9200992009-1607 SCREW, 6X27SCREW, 6X27
-
9202292022-1614 WASHER, 17.3X25X0.5WASHER, 17.3X25X0.5
-
92022A92022-1944 WASHERWASHER
-
92022B92022-271 WASHER, 18.3X22X0.5WASHER, 18.3X22X0.5
-
9204992049-1387 SEAL, OIL, KICK PEDALSEAL, OIL, KICK PEDAL
-
9208192081-020 SPRING, KICK PEDALSPRING, KICK PEDAL
-
9214592145-0051 SPRING, KICK STARTERSPRING, KICK STARTER
-
92145A92145-0162 SPRINGSPRING
-
9215092150-1858 BOLT, 8X25BOLT, 8X25
-
9220092200-0075 WASHER, 18.3X24X0.5WASHER, 18.3X24X0.5
