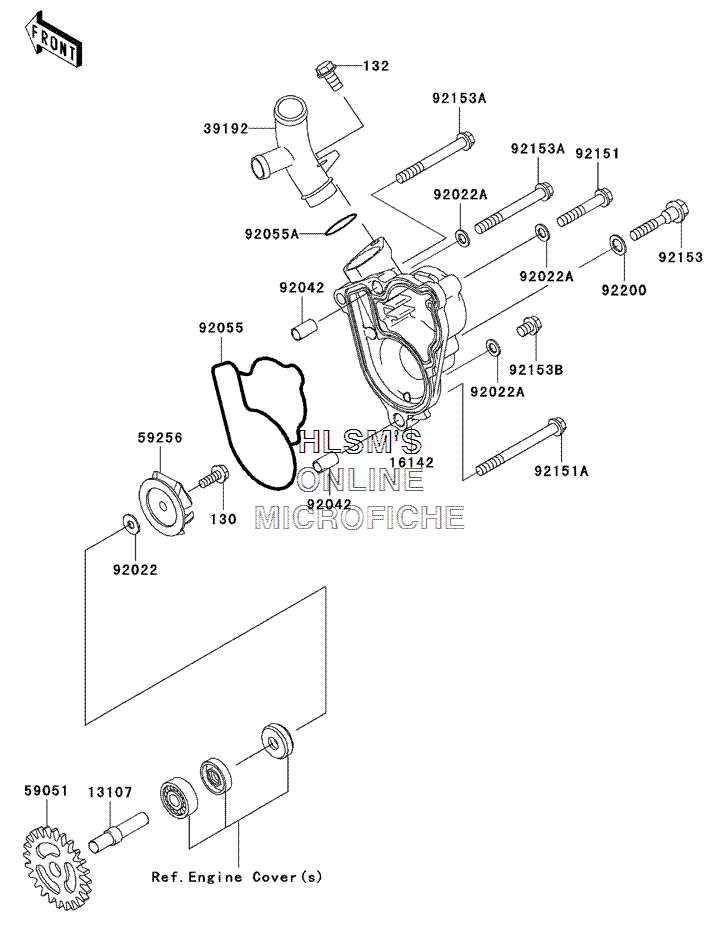

WATER PUMP для Kawasaki KX 250F - 2004 года выпуска
-
№АртикулНазвание
-
130130Z0514 BOLT, FLANGEDBOLT, FLANGED
-
132132L0612 BOLT, FLANGED, SMALLBOLT, FLANGED, SMALL
-
1310713107-0032 SHAFT, WATER PUMPSHAFT, WATER PUMP
-
1614216142-0019 COVER, PUMP, WATERCOVER, PUMP, WATER
-
3919239192-0037 PIPE, WATERPIPE, WATER
-
5905159051-0010 GEAR, SPUR, WATER PUMPGEAR, SPUR, WATER PUMP
-
5925659256-1065 IMPELLERIMPELLER
-
9202292022-1380 WASHER, 5.2X13X1WASHER, 5.2X13X1
-
92022A92022-304 WASHER, 6.2X11X1WASHER, 6.2X11X1
-
9204292042-007 PIN, DOWEL, 6.3X8X14PIN, DOWEL, 6.3X8X14
-
9205592055-0010 O-RING, WATER PUMPO-RING, WATER PUMP
-
92055A92055-1308 O-RING, 19MMO-RING, 19MM
-
9215192151-1135 BOLT, 6X35BOLT, 6X35
-
92151A92151-1199 BOLT, 6X65BOLT, 6X65
-
9215392153-0529 BOLT, 6X35BOLT, 6X35
-
92153A92153-0696 BOLT, 6X55BOLT, 6X55
-
92153B92153-0860 BOLT, 6X8BOLT, 6X8
-
9220092200-0060 WASHER, 8.2X13X1WASHER, 8.2X13X1
