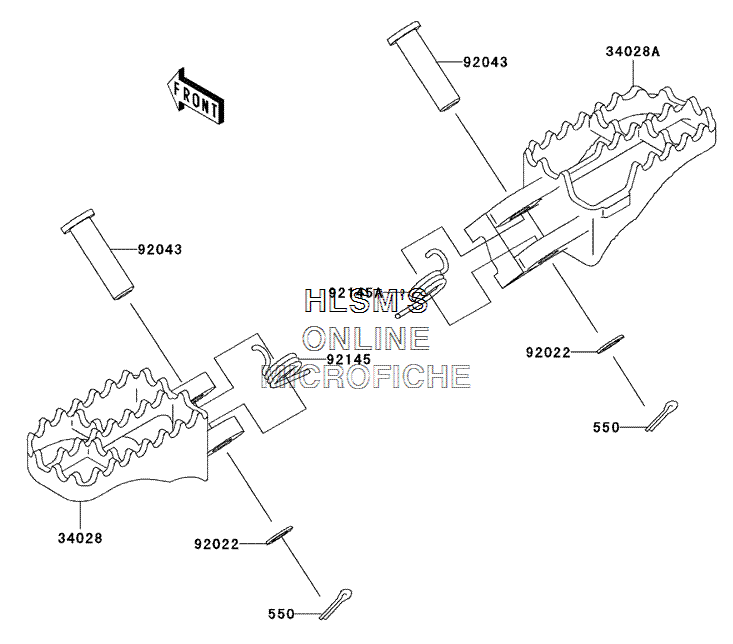

FOOTRESTS для Kawasaki KX 250F - 2004 года выпуска
-
№АртикулНазвание
-
550550S3020 PIN, COTTER, 3.0X20PIN, COTTER, 3.0X20
-
3402834028-1533 STEP (LEFT)STEP (LEFT)
-
34028A34028-1534 STEP (RIGHT)STEP (RIGHT)
-
9202292022-1829 WASHER, 10.2X16X1WASHER, 10.2X16X1
-
9204392043-0041 PIN, 10X49.5PIN, 10X49.5
-
9214592145-1466 SPRING, STEP (LEFT)SPRING, STEP (LEFT)
-
92145A92145-1467 SPRING, STEP (RIGHT)SPRING, STEP (RIGHT)
