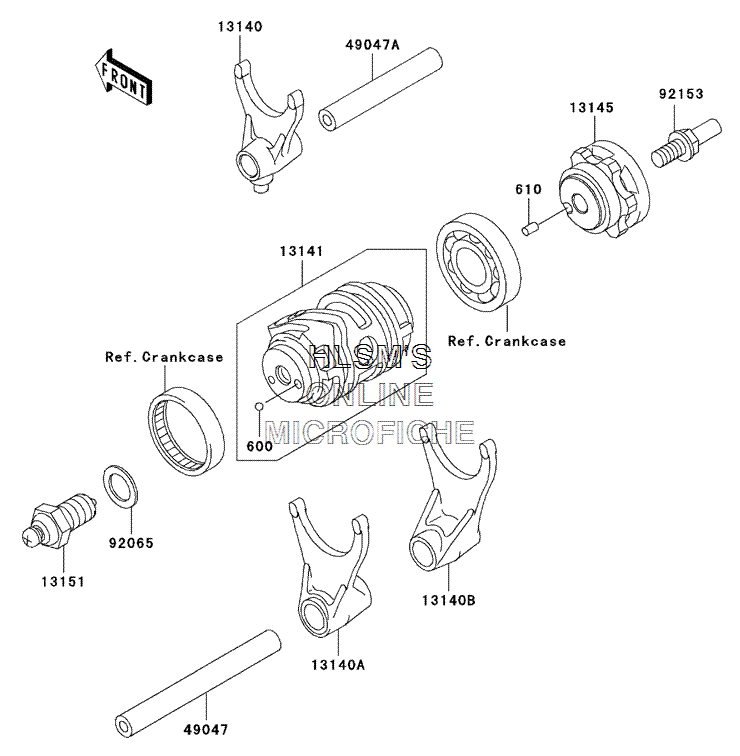

GEAR CHANGE DRUM W/ SHIFT FORK(S) для Kawasaki KX 250F - 2004 года выпуска

-
№АртикулНазвание
-
600600A0700 BALL, STEEL, 7/32"BALL, STEEL, 7/32"
-
610610A0408 ROLLER, 4X8ROLLER, 4X8
-
1314013140-0003 FORK, SHIFT, INFORK, SHIFT, IN
-
13140A13140-0004 FORK, SHIFT, OUT (LEFT)FORK, SHIFT, OUT (LEFT)
-
13140B13140-0013 FORK, SHIFT, OUT (RIGHT)FORK, SHIFT, OUT (RIGHT)
-
1314113141-0002 DRUM, CHANGEDRUM, CHANGE
-
1314513145-0005 CAM, CHANGE DRUMCAM, CHANGE DRUM
-
1315113151-0006 SWITCH, COMP, NEUTRALSWITCH, COMP, NEUTRAL
-
4904749047-0003 ROD, SHIFT, OUTPUT, L=94.5ROD, SHIFT, OUTPUT, L=94.5
-
49047A49047-0004 ROD, SHIFT, INPUT, L=63ROD, SHIFT, INPUT, L=63
-
9206592065-058 GASKET, 10.5X16X1GASKET, 10.5X16X1
-
9215392153-0530 BOLT, 8X20BOLT, 8X20
