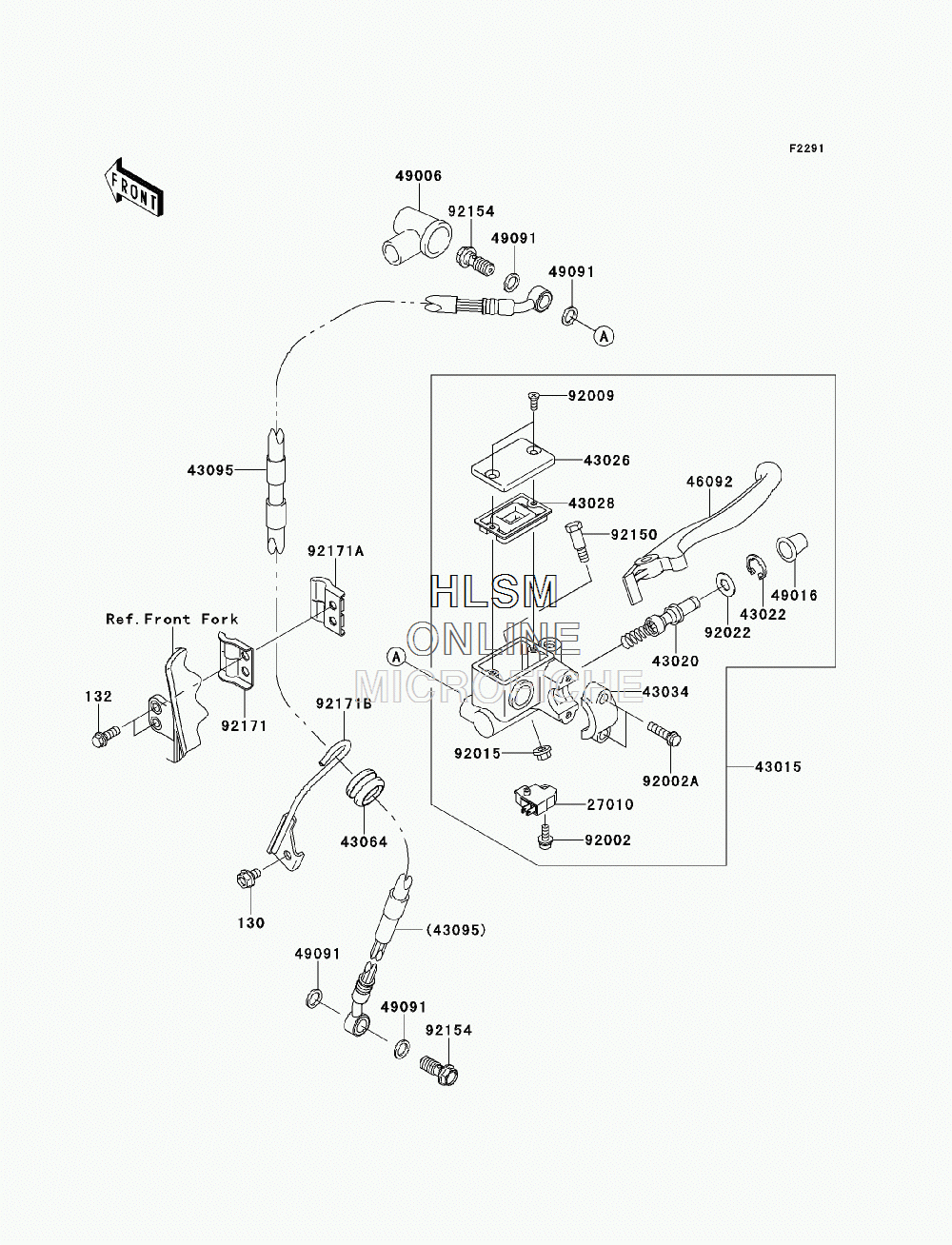

BRAKE - MASTER CYLINDER - FRONT для Kawasaki KLX250SF (KLX250W9F) - 2009 года выпуска
-
№АртикулНазвание
-
130130BB0610 BOLT-FLANGED,6X10BOLT-FLANGED,6X10
-
132132BB0616 BOLT-FLANGED-SMALL,6X16BOLT-FLANGED-SMALL,6X16
-
2701027010-0025 SWITCH,BRAKESWITCH,BRAKE
-
4301543015-1697 CYLINDER-ASSY-MASTER, FRONTCYLINDER-ASSY-MASTER, FRONT
-
4302043020-1126 PISTON-COMP-BRAKEPISTON-COMP-BRAKE
-
4302243022-1010 STOPPER-BRAKE,PISTONSTOPPER-BRAKE,PISTON
-
4302643026-1074 CAP-BRAKECAP-BRAKE
-
4302843028-1061 DIAPHRAGMDIAPHRAGM
-
4303443034-1016 HOLDER-BRAKE,MASTER CYLINDERHOLDER-BRAKE,MASTER CYLINDER
-
4306443064-007 GROMMET,HOSE CLAMPGROMMET,HOSE CLAMP
-
4309543095-0443 HOSE-BRAKE, FRONTHOSE-BRAKE, FRONT
-
4609246092-1140 LEVER-GRIP, FRONT BRAKELEVER-GRIP, FRONT BRAKE
-
4900649006-1040 BOOT,DUSTBOOT,DUST
-
4901649016-1044 COVER-SEAL,MASTER CYLINDERCOVER-SEAL,MASTER CYLINDER
-
4909149091-0001 WASHER-SEAL,10.1X14.5X1.5WASHER-SEAL,10.1X14.5X1.5
-
9200292002-1323 BOLT,SCREW,4X12BOLT,SCREW,4X12
-
92002A92002-1894 BOLTBOLT
-
9200992009-1458 SCREW,4MMSCREW,4MM
-
9201592015-1528 NUT,FLANGED,6MMNUT,FLANGED,6MM
-
9202292022-1814 WASHERWASHER
-
9215092150-1451 BOLT, LEVER SETBOLT, LEVER SET
-
9215492154-0226 BOLT,OIL,L=23BOLT,OIL,L=23
-
9217192171-1626 CLAMP,BRAKE HOSECLAMP,BRAKE HOSE
-
92171A92171-1627 CLAMP,BRAKE HOSECLAMP,BRAKE HOSE
-
92171B92171-1839 CLAMP,BRAKE HOSECLAMP,BRAKE HOSE
