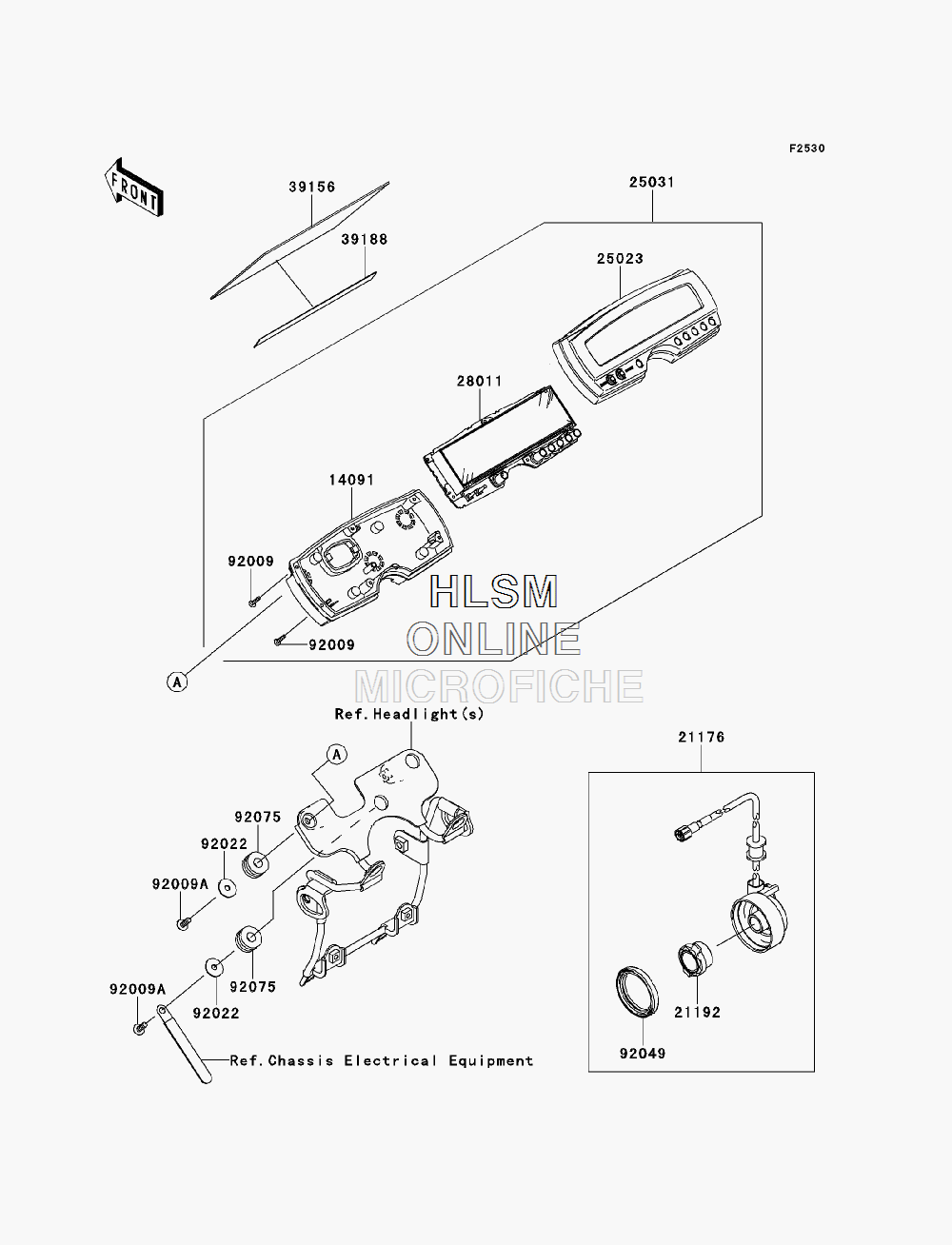

METER(S) для Kawasaki KLX250SF (KLX250W9F) - 2009 года выпуска
-
№АртикулНазвание
-
1409114091-0874 COVER,METER,LWRCOVER,METER,LWR
-
2117621176-0120 SENSOR,SPEEDSENSOR,SPEED
-
2119221192-0004 MAGNET,SPEED SENSORMAGNET,SPEED SENSOR
-
2502325023-0036 COVER-METER CASE,UPPCOVER-METER CASE,UPP
-
2503125031-0252 METER-ASSY,LCDMETER-ASSY,LCD
-
2801128011-0118 METER,LCDMETER,LCD
-
3915639156-0478 PAD,HEAD LAMPPAD,HEAD LAMP
-
3918839188-0012 TAPETAPE
-
9200992009-1164 SCREW,TAPPING,3X16SCREW,TAPPING,3X16
-
92009A92009-1197 SCREW,TAPPING,5X14SCREW,TAPPING,5X14
-
9202292022-104 WASHER,5.5X20X1.2WASHER,5.5X20X1.2
-
9204992049-1172 SEAL-OIL,METER GEAR CASESEAL-OIL,METER GEAR CASE
-
9207592075-1690 DAMPERDAMPER
