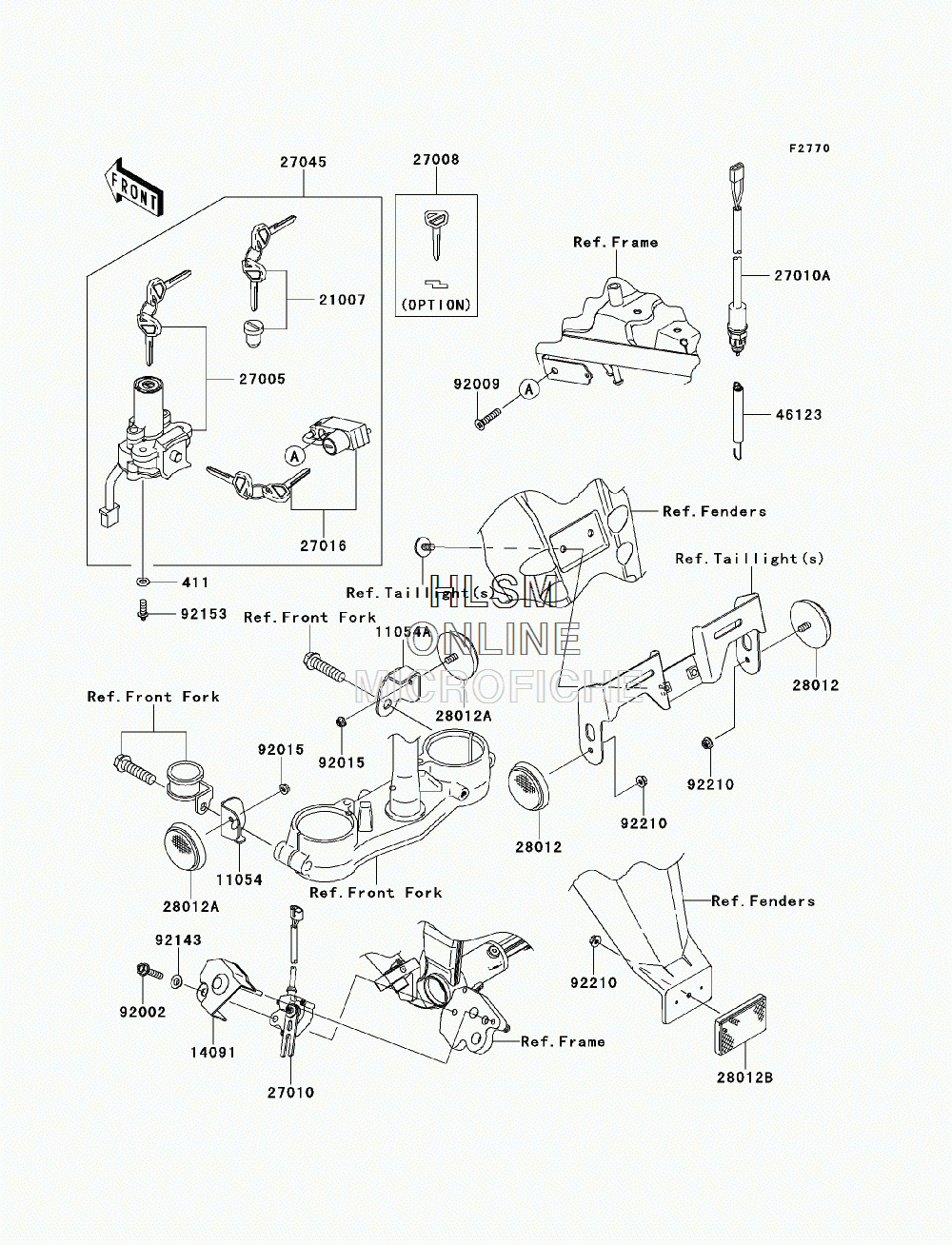

IGNITION SWITCH/LOCKS/REFLECTORS для Kawasaki KLX250SF (KLX250W9F) - 2009 года выпуска
-
№АртикулНазвание
-
411411AA0600 WASHER-PLAIN,6.5X13X1WASHER-PLAIN,6.5X13X1
-
1105411054-0367 BRACKET, REFLECTOR, FRONT, LEFT HANDBRACKET, REFLECTOR, FRONT, LEFT HAND
-
11054A11054-0368 BRACKET, REFLECTOR, FRONT, RIGHT HANDBRACKET, REFLECTOR, FRONT, RIGHT HAND
-
1409114091-1553 COVER,SIDE STAND SWITCHCOVER,SIDE STAND SWITCH
-
2100721007-5040 ROTOR,LOCK,TANK CAPROTOR,LOCK,TANK CAP
-
2700527005-0046 SWITCH-ASSY-IGNITIONSWITCH-ASSY-IGNITION
-
2700827008-1170 KEY-LOCK,BLANK (OPTION)KEY-LOCK,BLANK (OPTION)
-
2701027010-0097 SWITCH,SIDE STANDSWITCH,SIDE STAND
-
27010A27010-1489 SWITCH, REAR BRAKESWITCH, REAR BRAKE
-
2701627016-5207 LOCK-ASSY,HELMETLOCK-ASSY,HELMET
-
2704527045-5383 SWITCH-ASSYSWITCH-ASSY
-
2801228012-0002 REFLECTOR-REFLEXREFLECTOR-REFLEX
-
28012A28012-016 REFLECTOR-REFLEX, FRONTREFLECTOR-REFLEX, FRONT
-
28012B28012-1088 REFLECTOR-REFLEXREFLECTOR-REFLEX
-
4612346123-0008 SPRING-COMP, REAR BRAKE SWITCHSPRING-COMP, REAR BRAKE SWITCH
-
9200292002-1582 BOLT,FLANGED,6X25BOLT,FLANGED,6X25
-
9200992009-1753 SCREW,6X30SCREW,6X30
-
9201592015-1259 NUT,FLANGED,5MMNUT,FLANGED,5MM
-
9214392143-1331 COLLARCOLLAR
-
9215392153-0967 BOLT,TORX,6X16BOLT,TORX,6X16
-
9221092210-0007 NUT,FLANGED,5MMNUT,FLANGED,5MM
