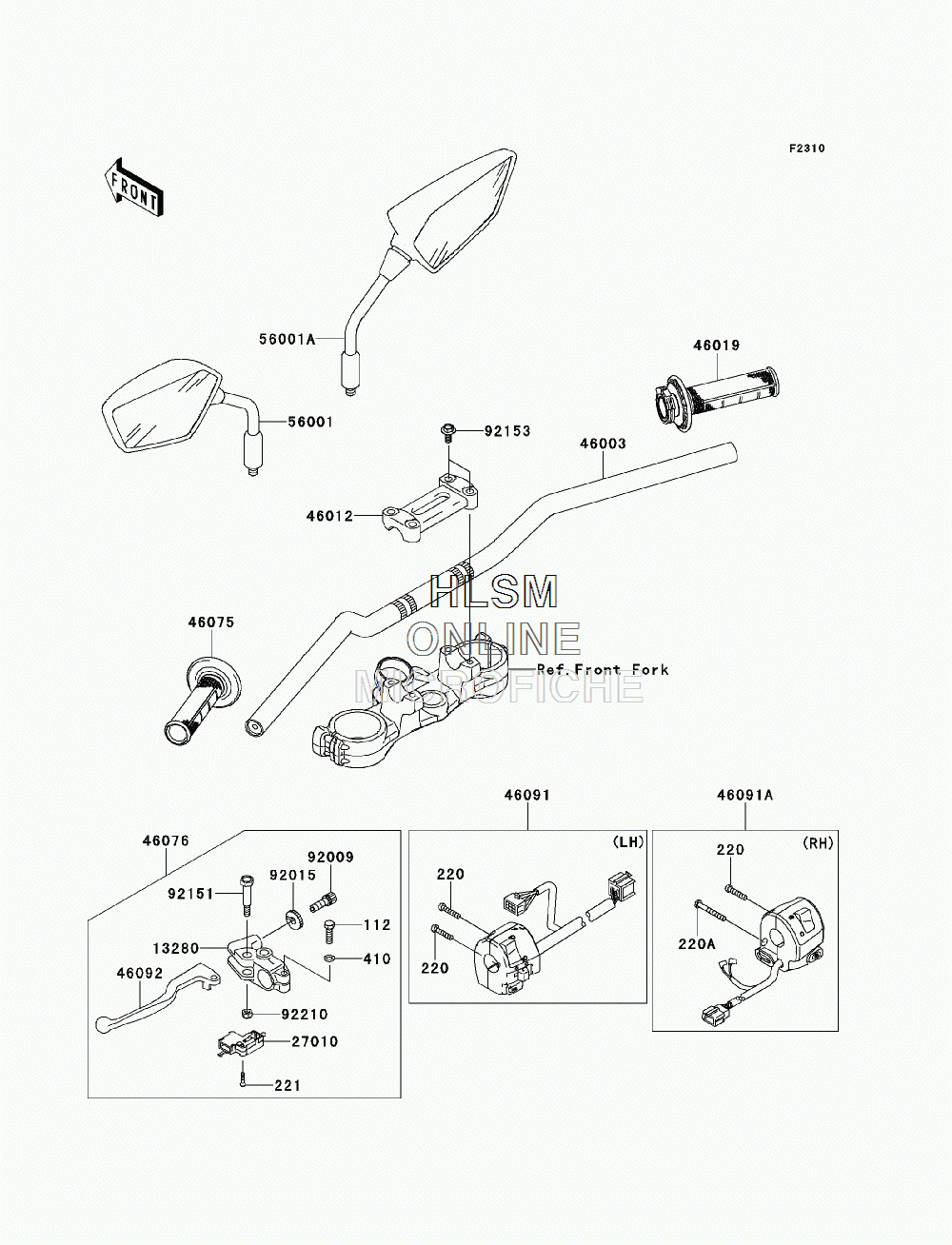

HANDLEBAR для Kawasaki KLX250SF (KLX250W9F) - 2009 года выпуска
-
№АртикулНазвание
-
112112BB0622 BOLT-UPSET,6X22BOLT-UPSET,6X22
-
220220AB0525 SCREW-PAN-CROS,5X25SCREW-PAN-CROS,5X25
-
220A220AB0540 SCREW-PAN-CROS,5X40SCREW-PAN-CROS,5X40
-
221221AB0316 SCREW-CSK-CROS,3X16SCREW-CSK-CROS,3X16
-
410410AB0600 WASHER-PLAIN-SMALL,6MMWASHER-PLAIN-SMALL,6MM
-
1328013280-0105 HOLDER,CLUTCH LEVERHOLDER,CLUTCH LEVER
-
2701027010-1094 SWITCH,CLUTCH,BLACKSWITCH,CLUTCH,BLACK
-
4600346003-0147-458 HANDLE,P.SILVERHANDLE,P.SILVER
-
4601246012-0010-18R HOLDER-HANDLE,UPP,F.S.BLACKHOLDER-HANDLE,UPP,F.S.BLACK
-
4601946019-0026 GRIP-ASSY,THROTTLEGRIP-ASSY,THROTTLE
-
4607546075-0082 GRIP, LEFT HANDGRIP, LEFT HAND
-
4607646076-1244 LEVER-ASSY-GRIP,CLUTCHLEVER-ASSY-GRIP,CLUTCH
-
4609146091-0163 HOUSING-ASSY-CONTROL, LEFT HANDHOUSING-ASSY-CONTROL, LEFT HAND
-
46091A46091-0180 HOUSING-ASSY-CONTROL, RIGHT HANDHOUSING-ASSY-CONTROL, RIGHT HAND
-
4609246092-1206 LEVER-GRIP,CLUTCHLEVER-GRIP,CLUTCH
-
5600156001-0092 MIREAROR-ASSY, LEFT HANDMIREAROR-ASSY, LEFT HAND
-
56001A56001-0093 MIREAROR-ASSY, RIGHT HANDMIREAROR-ASSY, RIGHT HAND
-
9200992009-1134 SCREW,CABLE ADJUST,8MM,BLACKSCREW,CABLE ADJUST,8MM,BLACK
-
9201592015-1197 NUT,CABLE ADJUST LOCK,8MM,BLKNUT,CABLE ADJUST LOCK,8MM,BLK
-
9215192151-1986 BOLT, LEVER SETBOLT, LEVER SET
-
9215392153-1519 BOLT,FLANGED,8X30BOLT,FLANGED,8X30
-
9221092210-0006 NUT,LOCK,6MMNUT,LOCK,6MM
