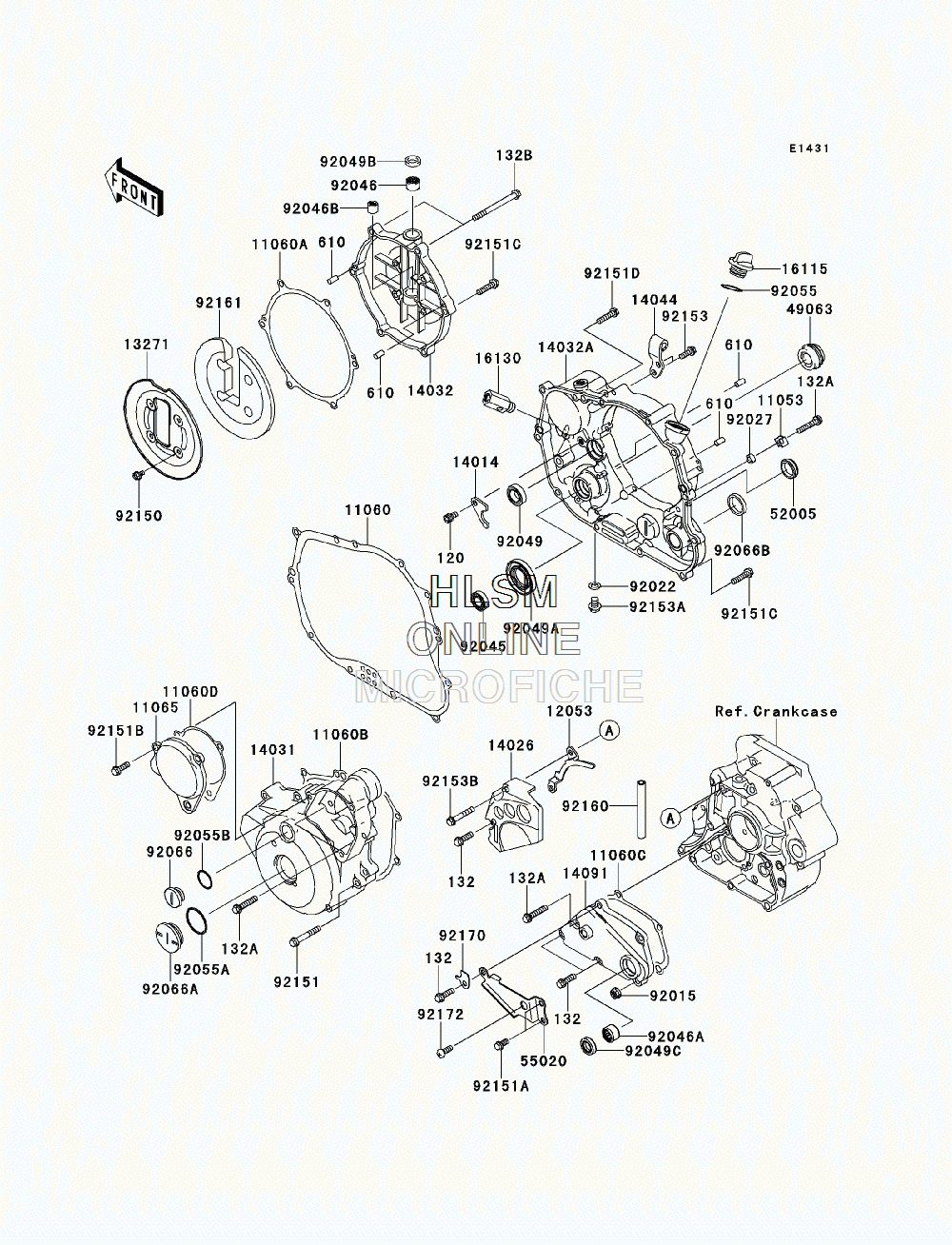

ENGINE COVER для Kawasaki KLX250SF (KLX250W9F) - 2009 года выпуска
-
№АртикулНазвание
-
1105311053-1656 BRACKETBRACKET
-
1106011060-1324 GASKET,CLUTCH COVER INNERGASKET,CLUTCH COVER INNER
-
11060A11060-1325 GASKET,CLUTCH COVER OUTERGASKET,CLUTCH COVER OUTER
-
11060B11060-1326 GASKET,GENERATOR COVERGASKET,GENERATOR COVER
-
11060C11060-1327 GASKET,TRANSMISSION COVERGASKET,TRANSMISSION COVER
-
11060D11060-1641 GASKET,CAPGASKET,CAP
-
1106511065-0274 CAP,GENERATOR COVERCAP,GENERATOR COVER
-
1205312053-1337 GUIDE-CHAINGUIDE-CHAIN
-
1327113271-1567 PLATEPLATE
-
1401414014-1062 PLATE-POSITIONPLATE-POSITION
-
1402614026-0027 COVER-CHAINCOVER-CHAIN
-
1403114031-1400 COVER-GENERATORCOVER-GENERATOR
-
1403214032-0004 COVER-CLUTCHCOVER-CLUTCH
-
14032A14032-0005 COVER-CLUTCH,INNERCOVER-CLUTCH,INNER
-
1404414044-1078 HOLDER-CABLEHOLDER-CABLE
-
1409114091-0019 COVERCOVER
-
1611516115-1053 CAP-OIL FILLERCAP-OIL FILLER
-
1613016130-1001 VALVE-ASSY-RELIEFVALVE-ASSY-RELIEF
-
4906349063-1055 SEAL-MECHANICAL,WATERSEAL-MECHANICAL,WATER
-
5200552005-1009 GAUGE,OIL LEVELGAUGE,OIL LEVEL
-
5502055020-1460 GUARD,TRANSMISSION COVERGUARD,TRANSMISSION COVER
-
9201592015-1367 NUT,FLANGED,6MMNUT,FLANGED,6MM
-
9202292022-1488 WASHER,8.2X14X1.0WASHER,8.2X14X1.0
-
9202792027-1885 COLLAR,6.5X10.5X4.5COLLAR,6.5X10.5X4.5
-
9204592045-1246 BEARING-BALL,6901BEARING-BALL,6901
-
9204692046-1010 BEARING-NEEDLE,HK1210BEARING-NEEDLE,HK1210
-
92046A92046-1148 BEARING-NEEDLE,HK1312BEARING-NEEDLE,HK1312
-
92046B92046-1230 BEARING-NEEDLEBEARING-NEEDLE
-
9204992049-1191 SEAL-OILSEAL-OIL
-
92049A92049-1228 SEAL-OIL,SC 12X22X5SEAL-OIL,SC 12X22X5
-
92049B92049-1262 SEAL-OIL,AG0353-F0SEAL-OIL,AG0353-F0
-
92049C92049-1559 SEAL-OILSEAL-OIL
-
9205592055-012 RING-ORING-O
-
92055A92055-091 RING-O,27.7X2.4RING-O,27.7X2.4
-
92055B92055-1146 RING-O,20X2RING-O,20X2
-
9206692066-1397 PLUGPLUG
-
92066A92066-1404 PLUGPLUG
-
92066B92066-1411 PLUG,RCA297PLUG,RCA297
-
9215092150-1406 BOLT,5X8BOLT,5X8
-
9215192151-1131 BOLT,6X40BOLT,6X40
-
120120CA0610 BOLT-SOCKET,6X10BOLT-SOCKET,6X10
-
132132BC0620 BOLT-FLANGED-SMALL,6X20BOLT-FLANGED-SMALL,6X20
-
132A132BC0630 BOLT-FLANGED-SMALL,6X30BOLT-FLANGED-SMALL,6X30
-
132B132BC0670 BOLT-FLANGED-SMALL,6X70BOLT-FLANGED-SMALL,6X70
-
610610A0408 ROLLER,4X8ROLLER,4X8
-
92151A92151-1133 BOLT,6X12BOLT,6X12
-
92151B92151-1311 BOLT,6X18BOLT,6X18
-
92151C92151-1930 BOLT,FLANGED-SMALL,6X25BOLT,FLANGED-SMALL,6X25
-
92151D92151-1934 BOLT,6X25BOLT,6X25
-
9215392153-0695 BOLT,6X16BOLT,6X16
-
92153A92153-1342 BOLT,FLANGED,8X10BOLT,FLANGED,8X10
-
92153B92153-1351 BOLT,FLANGED,6X35BOLT,FLANGED,6X35
-
9216092160-1866 DAMPERDAMPER
-
9216192161-1182 DAMPERDAMPER
-
9217092170-1785 CLAMPCLAMP
-
9217292172-0223 SCREW,6X16SCREW,6X16
