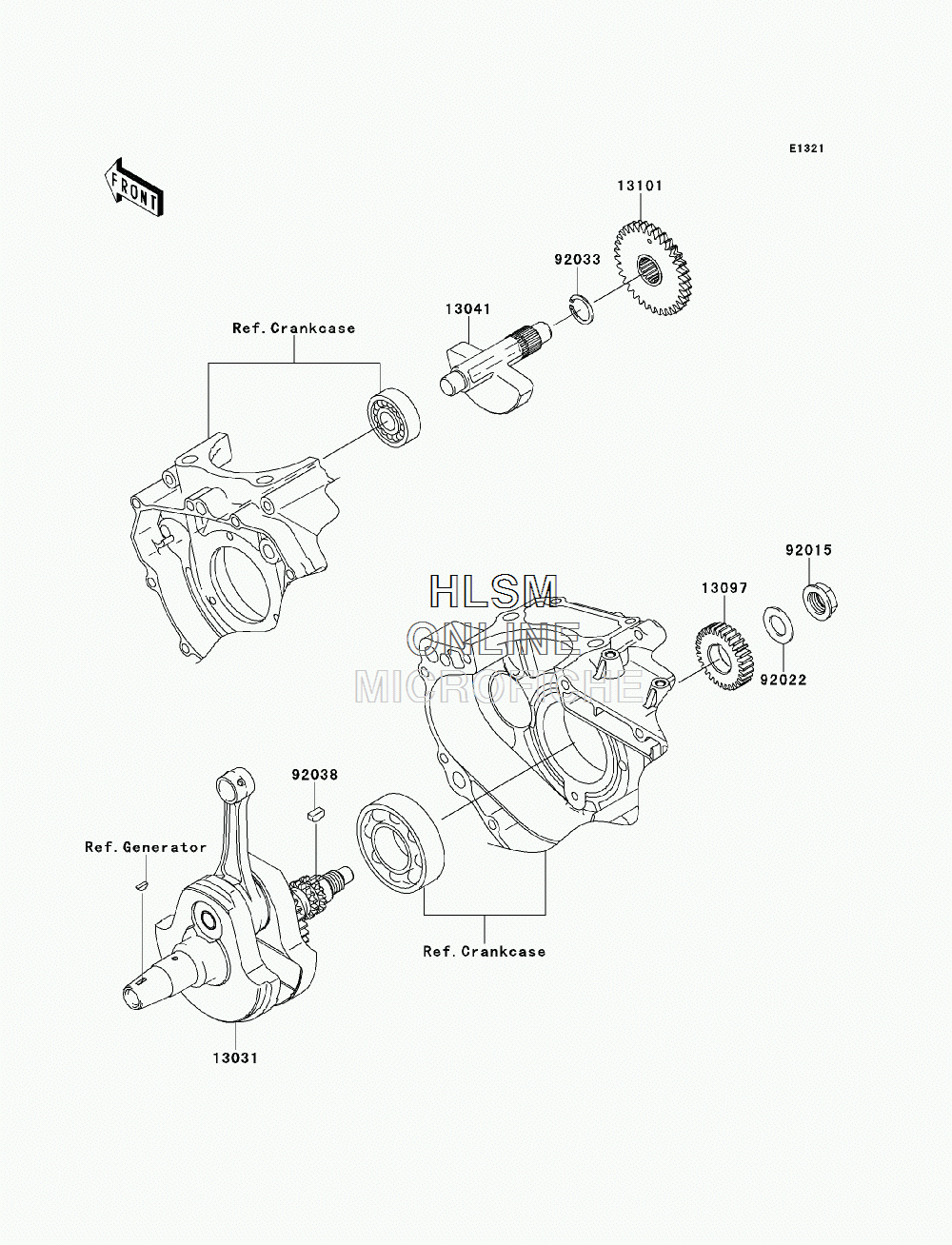

CRANKSHAFT для Kawasaki KLX250SF (KLX250W9F) - 2009 года выпуска
-
№АртикулНазвание
-
1303113031-0103 CRANKSHAFT-COMPCRANKSHAFT-COMP
-
1304113041-0001 BALANCERBALANCER
-
1309713097-0087 GEAR-PRIMARY SPUR,30TGEAR-PRIMARY SPUR,30T
-
1310113101-1253 GEAR-ASSY,BALANCERGEAR-ASSY,BALANCER
-
9201592015-1581 NUT,16MMNUT,16MM
-
9202292022-1356 WASHER,16.3X29X1.75WASHER,16.3X29X1.75
-
9203392033-029 RING-SNAP,18MMRING-SNAP,18MM
-
9203892038-1057 KEYKEY
