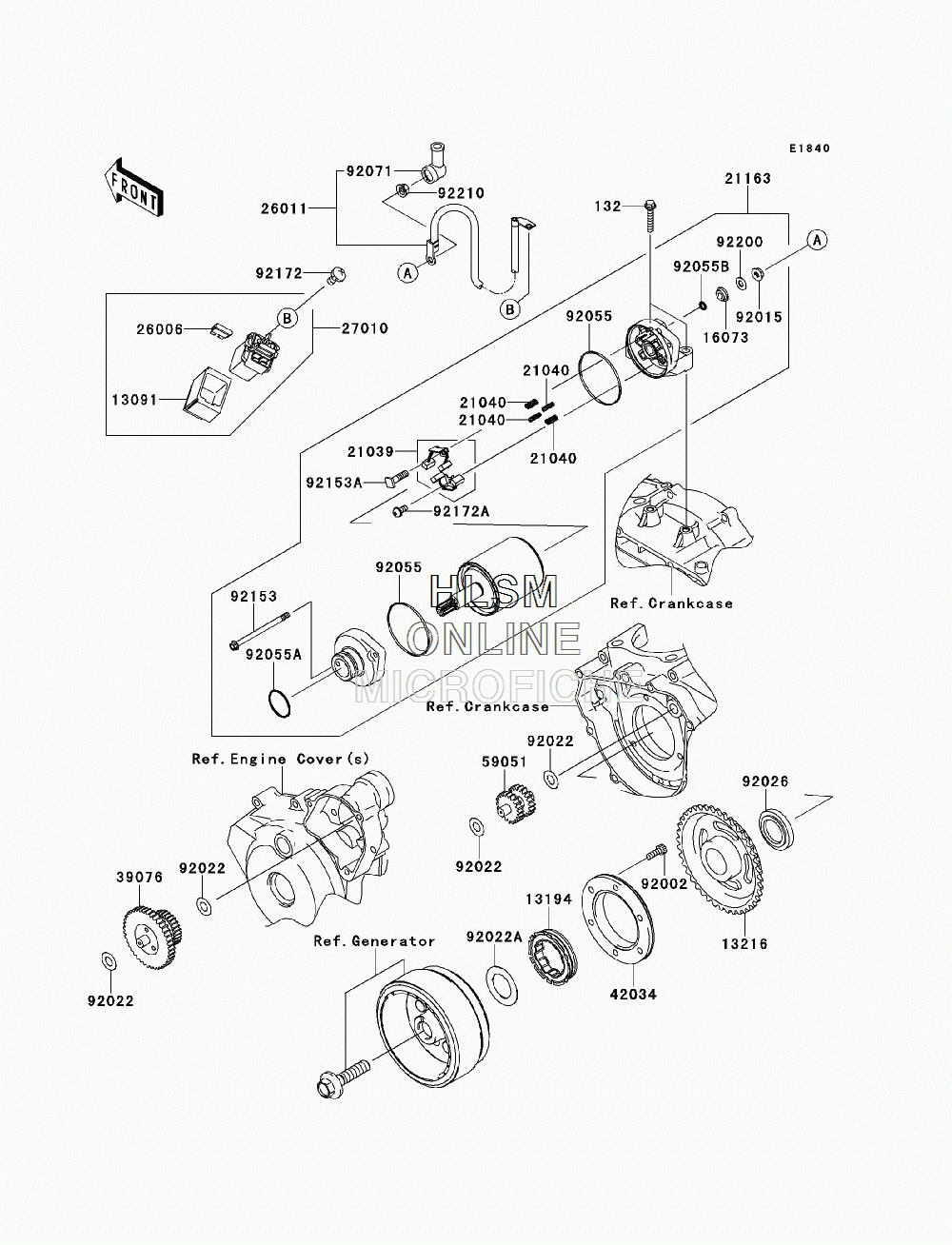

STARTER MOTOR для Kawasaki KLX250SF (KLX250W9F) - 2009 года выпуска
-
№АртикулНазвание
-
132132BC0630 BOLT-FLANGED-SMALL,6X30BOLT-FLANGED-SMALL,6X30
-
1309113091-1883 HOLDER,SWITCHHOLDER,SWITCH
-
1319413194-1091 CLUTCH-ONEWAYCLUTCH-ONEWAY
-
1321613216-1148 GEAR-COMP,ONEWAY CLUTCHGEAR-COMP,ONEWAY CLUTCH
-
1607316073-0053 INSULATORINSULATOR
-
2103921039-0004 BRUSH,CARBONBRUSH,CARBON
-
2104021040-0003 SPRING-BRUSHSPRING-BRUSH
-
2116321163-0046 STARTER-ELECTRICSTARTER-ELECTRIC
-
2600626006-1051 FUSE,BLADE,20A,YELLOWFUSE,BLADE,20A,YELLOW
-
2601126011-0164 WIRE-LEADWIRE-LEAD
-
2701027010-1336 SWITCHSWITCH
-
3907639076-0020 LIMITER,STARTER IDLE GEARLIMITER,STARTER IDLE GEAR
-
4203442034-0048 COUPLINGCOUPLING
-
5905159051-1304 GEAR-SPUR,IDLEGEAR-SPUR,IDLE
-
9200292002-1778 BOLT,SOCKET,6X16BOLT,SOCKET,6X16
-
9201592015-1476 NUT,STARTER MOTORNUT,STARTER MOTOR
-
9202292022-1649 WASHER,10.2X20X0.5WASHER,10.2X20X0.5
-
92022A92022-1781 WASHER,27.2X44X1.0WASHER,27.2X44X1.0
-
9202692026-1450 SPACERSPACER
-
9205592055-0136 RING-ORING-O
-
92055A92055-1276 RING-ORING-O
-
92055B92055-1370 RING-O,4.5X2.0RING-O,4.5X2.0
-
9207192071-0037 GROMMETGROMMET
-
9215392153-1850 BOLTBOLT
-
92153A92153-1866 BOLTBOLT
-
9217292172-0234 SCREW-PAN-WS-CROS,5X10SCREW-PAN-WS-CROS,5X10
-
92172A92172-0334 SCREWSCREW
-
9220092200-0386 WASHERWASHER
-
9221092210-0188 NUT,6MMNUT,6MM
