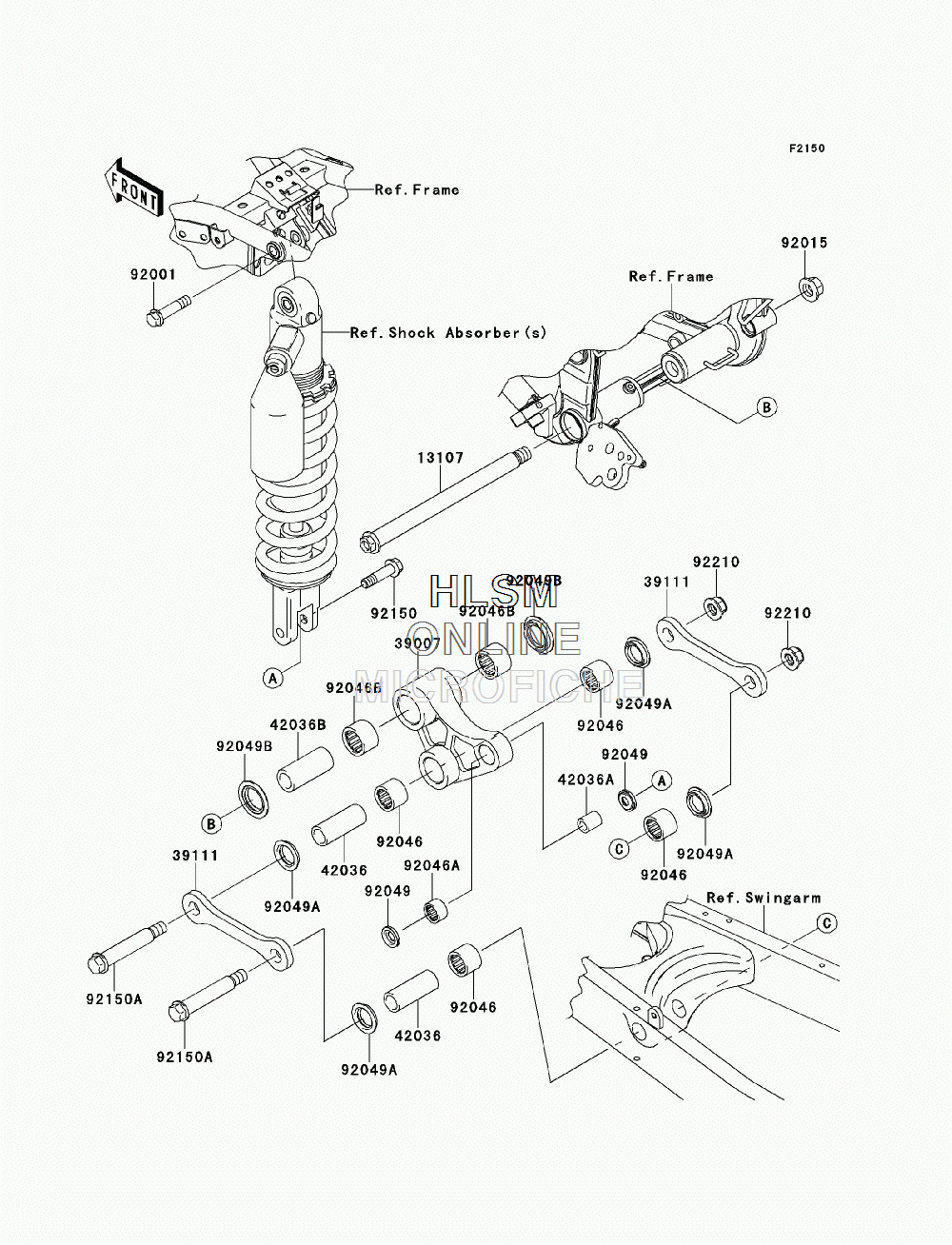

SUSPENSION - REAR для Kawasaki KLX250SF (KLX250W9F) - 2009 года выпуска
-
№АртикулНазвание
-
1310713107-0198 SHAFT,ARM,14MMSHAFT,ARM,14MM
-
3900739007-0100 ARM-SUSP,UNI TRAKARM-SUSP,UNI TRAK
-
3911139111-0053 ROD-TIE,SUSPENSIONROD-TIE,SUSPENSION
-
4203642036-1245 SLEEVE,15X22X57SLEEVE,15X22X57
-
42036A42036-1248 SLEEVE,10X16X19SLEEVE,10X16X19
-
42036B42036-1318 SLEEVE,17X25X57SLEEVE,17X25X57
-
9200192001-1499 BOLT,FLANGED,10X44BOLT,FLANGED,10X44
-
9201592015-1407 NUT,14MMNUT,14MM
-
9204692046-1162 BEARING-NEEDLE,F-2220BEARING-NEEDLE,F-2220
-
92046A92046-1192 BEARING-NEEDLE,16BM2212BEARING-NEEDLE,16BM2212
-
92046B92046-1228 BEARING-NEEDLE,BM2520BEARING-NEEDLE,BM2520
-
9204992049-0069 SEAL-OILSEAL-OIL
-
92049A92049-1254 SEAL-OIL,MHA22 28 5.7FSEAL-OIL,MHA22 28 5.7F
-
92049B92049-1426 SEAL-OIL,MF025N1SEAL-OIL,MF025N1
-
9215092150-1711 BOLT,FLANGED,10X40BOLT,FLANGED,10X40
-
92150A92150-1812 BOLT,ROD,12X90BOLT,ROD,12X90
-
9221092210-0348 NUT,LOCK,FLANGED,12MMNUT,LOCK,FLANGED,12MM
